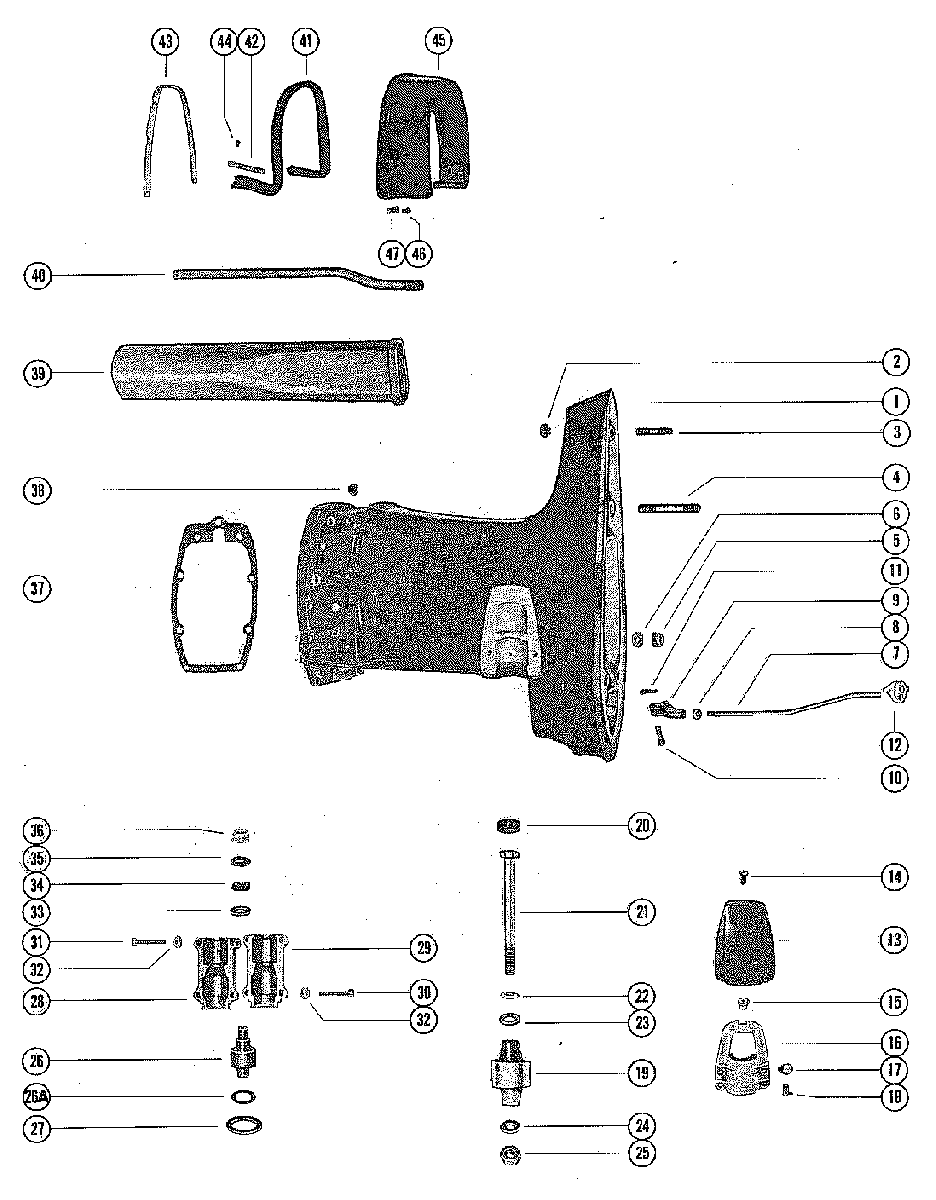

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 500 2742142 THRU 7051982
-
№АртикулНазвание
-
11554-3910A2 DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT) FIGURE 1 SEE CHARTDRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT) FIGURE 1 SEE CHART
-
11564-3913A2 DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT) FIGURE 1 SEE CHARTDRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT) FIGURE 1 SEE CHART
-
11592-8188A8 DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT) FIGURE 2 SEE CHARTDRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT) FIGURE 2 SEE CHART
-
11593-7513A12 DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT) FIGURE 2 SEE CHARTDRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT) FIGURE 2 SEE CHART
-
219-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLEPLUG, PLASTIC - TRIM TAB SCREW HOLE
-
316-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
-
416-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
-
511-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
-
612-65791 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
-
747835 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
-
747836 ROD, PUSH - REVERSE LOCK (LONG SHAFT)ROD, PUSH - REVERSE LOCK (LONG SHAFT)
-
811-60049 NUT, JAM - PUSH RODNUT, JAM - PUSH ROD
-
947837 ROD END, PUSH RODROD END, PUSH ROD
-
1024-78203A2 PIN, REVERSE LOCK LEVERPIN, REVERSE LOCK LEVER
-
1118-25191 COTTER PIN, PUSH ROD TO REVERSE LOCKCOTTER PIN, PUSH ROD TO REVERSE LOCK
-
1252917 GUIDE, PUSH RODGUIDE, PUSH ROD
-
1335474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
1410-29722 SCREW, COVER TO LOWER MOUNT CLAMPSCREW, COVER TO LOWER MOUNT CLAMP
-
1511-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
1669592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
1710-29256 SCREW, LOWER MOUNT CLAMP?DRIVE SHAFT HSG.SCREW, LOWER MOUNT CLAMP?DRIVE SHAFT HSG.
-
1824-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
1975304T1 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
2025067 BUMPER, RUBBER - LOWER MOUNT SCREWBUMPER, RUBBER - LOWER MOUNT SCREW
-
2110-75284 SCREW, LOWER MOUNT (5 1/2")SCREW, LOWER MOUNT (5 1/2")
-
2212-28051 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
2312-28053 WASHER, RUBBER - LOWER MOUNT SCREWWASHER, RUBBER - LOWER MOUNT SCREW
-
2412-30119 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
2511-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
2675305 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
26A25-65936 "O" RING, UPPER MOUNT
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UP"O" RING, UPPER MOUNT
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UP -
2724929 PACKING, "U" CUP - UPPER MOUNT COVERSPACKING, "U" CUP - UPPER MOUNT COVERS
-
2879680A1 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
2979680A1 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
3010-49987 SCREW, UPPER MOUNT COVER - REAR (1 1/2")SCREW, UPPER MOUNT COVER - REAR (1 1/2")
-
3110-37941 SCREW, UPPER MOUNT COVER - FRONT (1 3/4")SCREW, UPPER MOUNT COVER - FRONT (1 3/4")
-
3211-35888 NUT, UPPER MOUNT COVER FASTENING SCREWNUT, UPPER MOUNT COVER FASTENING SCREW
-
3312-30520 WASHER, UPPER MOUNT BOLT (37/64 ID)WASHER, UPPER MOUNT BOLT (37/64 ID)
-
3412-30521 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
3512-30519 WASHER, UPPER MOUNT BOLT (3/8 ID)WASHER, UPPER MOUNT BOLT (3/8 ID)
-
3611-23161 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
3727-385011 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
3811-64809 NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")
-
39695431 EXHAUST(SHOFT SHAFT)EXHAUST(SHOFT SHAFT)
-
39695441 TUBE, EXHAUST(LONG SHAFT)TUBE, EXHAUST(LONG SHAFT)
-
4032-37727 TUBE, WATER INLET (SHORT SHAFT)TUBE, WATER INLET (SHORT SHAFT)
-
4032-45679 TUBE, WATER INLET(LONG SHAFT)TUBE, WATER INLET(LONG SHAFT)
-
4138157 SEAL, TRIM COVER TO DRIVE SHAFT HOUSINGSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
-
4238154 STRIP, RETAINING - TRIM COVER SEAL (SIDE)STRIP, RETAINING - TRIM COVER SEAL (SIDE)
-
4338158 STRIP, RETAINING - TRIM COVER SEAL (REAR)STRIP, RETAINING - TRIM COVER SEAL (REAR)
-
4410-48408 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)
-
4537687 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
4610-37571 SCREW, TRIM COVER TO DRIVE SHAFFT HOUSING
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3015353
CANADA 2742142 THRU 3015453SCREW, TRIM COVER TO DRIVE SHAFFT HOUSING
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3015353
CANADA 2742142 THRU 3015453 -
4610-57807 SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
UNITED STATES 9008819 AND UP
AUSTRALIA 3015354 AND UP
BELGIUM 9001581 AND UP
CANADA 3015454 AND UPSCREW, TRIM COVER TO DRIVE SHAFT HOUSING
UNITED STATES 9008819 AND UP
AUSTRALIA 3015354 AND UP
BELGIUM 9001581 AND UP
CANADA 3015454 AND UP -
4725-8M0079730 GROMMET, TRIM COVER SCREW
UNITED STATES 9008819 AND UP
AUSTRALIA 3015354 AND UP
BELGIUM 9001581 AND UP
CANADA 3015454 AND UPGROMMET, TRIM COVER SCREW
UNITED STATES 9008819 AND UP
AUSTRALIA 3015354 AND UP
BELGIUM 9001581 AND UP
CANADA 3015454 AND UP
