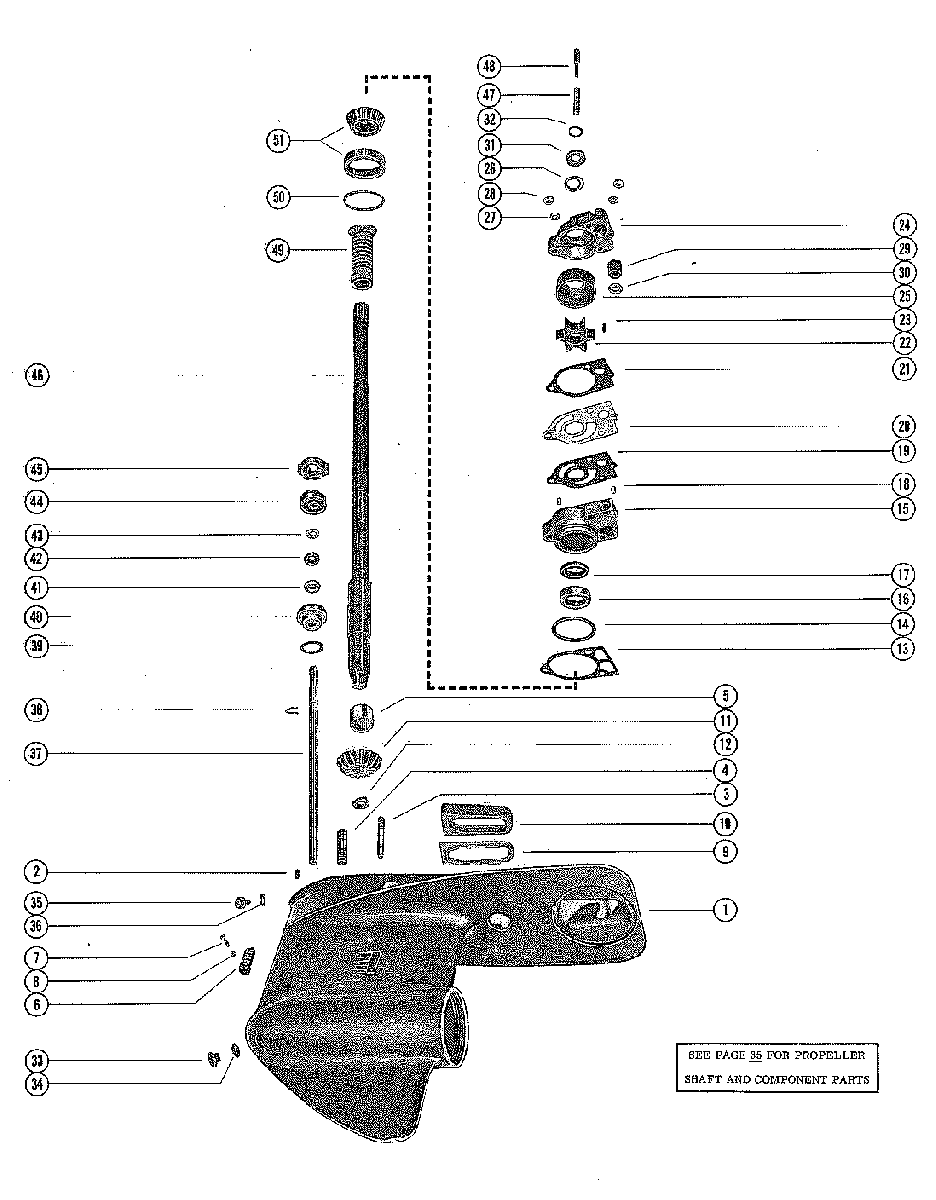

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 500 2742142 THRU 7051982

  • №
    Артикул
    Название
  • -
    1626-3927A4 GEAR HOUSING ASSEMBLY, COMPLETE(SHOFT SHAFT)
    SEE NOTE BELOW UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    GEAR HOUSING ASSEMBLY, COMPLETE(SHOFT SHAFT)
    SEE NOTE BELOW UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    0 ₽
  • -
    1626-3927A5 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    0 ₽
  • -
    1643-4518A7 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)-FIGURE 1
    SEE CHART. SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)-FIGURE 1
    SEE CHART. SEE NOTE BELOW
    0 ₽
  • -
    1643-4518A8 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)-FIGURE 1
    SEE CHART. SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)-FIGURE 1
    SEE CHART. SEE NOTE BELOW
    0 ₽
  • -
    1643-6038A17 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)-FIGURE 2
    SEE CHART. SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)-FIGURE 2
    SEE CHART. SEE NOTE BELOW
    0 ₽
  • -
    1643-6038A18 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)-FIGURE 2
    SEE CHART. SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)-FIGURE 2
    SEE CHART. SEE NOTE BELOW
    0 ₽
  • -
    1643-6038A17 GEAR HOUSING ASSEMBLY, COMPLETE(SHOFT SHAFT)
    SEE NOTE BELOW UNITED STATES 3478003 AND UP
    AUSTRALIA 8004785 AND UP
    BELGIUM 9006164 AND UP
    CANADA 7007358 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE(SHOFT SHAFT)
    SEE NOTE BELOW UNITED STATES 3478003 AND UP
    AUSTRALIA 8004785 AND UP
    BELGIUM 9006164 AND UP
    CANADA 7007358 AND UP
    0 ₽
  • -
    1643-6038A18 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 3478003 AND UP
    AUSTRALIA 8004785 AND UP
    BELGIUM 9006164 AND UP
    CANADA 7007358 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 3478003 AND UP
    AUSTRALIA 8004785 AND UP
    BELGIUM 9006164 AND UP
    CANADA 7007358 AND UP
    0 ₽
  • 1
    1626-3927A6 GEAR HOUSING ASSEMBLY
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    GEAR HOUSING ASSEMBLY
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    0 ₽
  • 1
    1643-4518A6 GEAR HOUSING ASSEMBLY(FIGURE 1) SEE CHART
    GEAR HOUSING ASSEMBLY(FIGURE 1) SEE CHART
    0 ₽
  • 1
    1643-6038A6 GEAR HOUSING ASSEMBLY(FUGURE 2) SEE CHART
    GEAR HOUSING ASSEMBLY(FUGURE 2) SEE CHART
    0 ₽
  • 1
    1643-6038A6 GEAR HOUSING ASSEMBLY
    UNITED STATES 3478003 AND UP
    AUSTRALIA 8004785 AND UP
    BELGIUM 9006164 AND UP
    CANADA 7007358 AND UP
    GEAR HOUSING ASSEMBLY
    UNITED STATES 3478003 AND UP
    AUSTRALIA 8004785 AND UP
    BELGIUM 9006164 AND UP
    CANADA 7007358 AND UP
    0 ₽
  • 2
    17-21438 PIN, DOWEL - GEAR HOUSING
    PIN, DOWEL - GEAR HOUSING
    0 ₽
  • 3
    16-57934 STUD, WATER PUMP BODY/BASE TO GEAR HSG. (2 11/16") -
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    STUD, WATER PUMP BODY/BASE TO GEAR HSG. (2 11/16") -
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    0 ₽
  • 3
    16-33778 STUD, WATER PUMP BODY/BASE TO GEAR HSG. (2 5/8")-
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    STUD, WATER PUMP BODY/BASE TO GEAR HSG. (2 5/8")-
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    550 ₽
  • 4
    16-8M0034453 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")
    1 710 ₽
  • 5
    31-62091T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
    6 670 ₽
  • 6
    72849A1 SCREEN, WATER INTAKE - STARBOARD
    UNITED STATES 3478003 AND UP
    AUSTRALIA 8004785 AND UP
    BELGIUM 9006164 AND UP
    CANADA 7007358 AND UP
    SCREEN, WATER INTAKE - STARBOARD
    UNITED STATES 3478003 AND UP
    AUSTRALIA 8004785 AND UP
    BELGIUM 9006164 AND UP
    CANADA 7007358 AND UP
    0 ₽
  • 6
    72849A1 SCREEN, WATER INTAKE - PORT
    UNITED STATES 3478003 AND UP
    AUSTRALIA 8004785 AND UP
    BELGIUM 9006164 AND UP
    CANADA 7007358 AND UP
    SCREEN, WATER INTAKE - PORT
    UNITED STATES 3478003 AND UP
    AUSTRALIA 8004785 AND UP
    BELGIUM 9006164 AND UP
    CANADA 7007358 AND UP
    0 ₽
  • 7
    10-36070 SCREW, WATER INTAKE SCREEN TO GEAR HOUSING (1 1/4") SERIAL
    UNITED STATES 3478003 AND UP
    AUSTRALIA 8004785 AND UP
    BELGIUM 9006164 AND UP
    CANADA 7007358 AND UP
    SCREW, WATER INTAKE SCREEN TO GEAR HOUSING (1 1/4") SERIAL
    UNITED STATES 3478003 AND UP
    AUSTRALIA 8004785 AND UP
    BELGIUM 9006164 AND UP
    CANADA 7007358 AND UP
    580 ₽
  • 8
    11-859124 NUT, WATER INTAKE SCREEN SCREW
    UNITED STATES 3478003 AND UP
    AUSTRALIA 8004785 AND UP
    BELGIUM 9006164 AND UP
    CANADA 7007358 AND UP
    NUT, WATER INTAKE SCREEN SCREW
    UNITED STATES 3478003 AND UP
    AUSTRALIA 8004785 AND UP
    BELGIUM 9006164 AND UP
    CANADA 7007358 AND UP
    1 490 ₽
  • 9
    92815 PLATE, SUPPRT - EXHAUST TUBE SEAL
    PLATE, SUPPRT - EXHAUST TUBE SEAL
    1 970 ₽
  • 10
    37721001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
    940 ₽
  • 11
    43-55607 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
    21 070 ₽
  • 12
    11-55910 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
    750 ₽
  • 13
    27-32771 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
    230 ₽
  • 14
    25-26855 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
    150 ₽
  • 15
    46-77516A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
    3 870 ₽
  • 16
    26-90562 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
    3 370 ₽
  • 17
    26-79831 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
    2 490 ₽
  • 18
    17-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
    190 ₽
  • 19
    27-19553 GASKET, LOWER - WATER PUMP BASE TO WATER PUMP BODY
    GASKET, LOWER - WATER PUMP BASE TO WATER PUMP BODY
    220 ₽
  • 20
    32768 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
    290 ₽
  • 21
    27-19551 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
    180 ₽
  • 22
    47-89983T IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
    4 170 ₽
  • 23
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
    490 ₽
  • 24
    46-77822A1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
    2 720 ₽
  • 25
    48753 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
    550 ₽
  • 26
    26-32121 OIL SEAL, WATER PUMP BODY
    OIL SEAL, WATER PUMP BODY
    1 940 ₽
  • 27
    12-29245 WASHER, WATER PUMP BODY AND BASE STUDS
    WASHER, WATER PUMP BODY AND BASE STUDS
    120 ₽
  • 28
    11-826709109 WATER PUMP BODY AND BASE STUDS
    WATER PUMP BODY AND BASE STUDS
    220 ₽
  • 29
    26-38452 SEAL, WATER PUMP BODY TO WATER TUBE
    SEAL, WATER PUMP BODY TO WATER TUBE
    350 ₽
  • 30
    12-38453 WASHER, CUPPED - WATER TUBE SEAL
    WASHER, CUPPED - WATER TUBE SEAL
    120 ₽
  • 31
    25-20273 RING, RUBBER - CENTRIFUGAL SLINGER
    RING, RUBBER - CENTRIFUGAL SLINGER
    200 ₽
  • 32
    25-29619 "O" RING, UPPER - DRIVE SHAFT
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    "O" RING, UPPER - DRIVE SHAFT
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    170 ₽
  • 33
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
    1 000 ₽
  • 34
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW
    WASHER, GREASE FILLER AND VENT HOLE SCREW
    60 ₽
  • 35
    19-48750 PLUG, GEAR HOUSING FLUSHING HOLE
    PLUG, GEAR HOUSING FLUSHING HOLE
    560 ₽
  • 36
    12-49221 WASHER, GEAR HOUSING FLUSHING HOLE
    WASHER, GEAR HOUSING FLUSHING HOLE
    90 ₽
  • 37
    55420A1 SHAFT ASSEMBLY, SHIFT - LOWER
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    SHAFT ASSEMBLY, SHIFT - LOWER
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    0 ₽
  • 37
    76063A1 SHAFT ASSEMBLY, SHIFT - LOWER
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    SHAFT ASSEMBLY, SHIFT - LOWER
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    7 430 ₽
  • 38
    53-29641 CLIP, RETAINING - SHIFT SHAFT
    CLIP, RETAINING - SHIFT SHAFT
    140 ₽
  • 39
    25-25439 "O" RING, SHIFT SHAFT BUSING
    "O" RING, SHIFT SHAFT BUSING
    190 ₽
  • 40
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
    1 980 ₽
  • 41
    26-24590 OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
    OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
    840 ₽
  • 42
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
    OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
    1 450 ₽
  • 43
    12-31266 WASHER, RUBBER - SHIFT SHAFT BUSING
    WASHER, RUBBER - SHIFT SHAFT BUSING
    100 ₽
  • 44
    78036 BASE, LOWER - REVERSE LOCKING
    BASE, LOWER - REVERSE LOCKING
    440 ₽
  • 45
    43308T1 CAM, REVERSE LOCKING
    CAM, REVERSE LOCKING
    4 870 ₽
  • 46
    45-57360A1 DRIVE SHAFT ASSEMBLY(SHORT SHAFT)
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    DRIVE SHAFT ASSEMBLY(SHORT SHAFT)
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    0 ₽
  • 46
    45-57359A1 DRIVE SHAFT ASSEMBLY(LONG SHAFT)
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    DRIVE SHAFT ASSEMBLY(LONG SHAFT)
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    0 ₽
  • 46
    45-76089A2 DRIVE SHAFT ASSEMBLY(SHORT SHAFT)
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    DRIVE SHAFT ASSEMBLY(SHORT SHAFT)
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    0 ₽
  • 46
    45-76088A2 DRIVE SHAFT ASSEMBLY(LONG SHAFT)
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    DRIVE SHAFT ASSEMBLY(LONG SHAFT)
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    55 160 ₽
  • 47
    24-20254 SPRING, COMPRESSION - DRIVE SHAFT
    SPRING, COMPRESSION - DRIVE SHAFT
    0 ₽
  • 48
    17-30545 PIN, DRIVE SHAFT
    PIN, DRIVE SHAFT
    450 ₽
  • 49
    23-52709 SLEEVE, LUBRICATION - DRIVE SHAFT
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    SLEEVE, LUBRICATION - DRIVE SHAFT
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    0 ₽
  • 49
    88181 SLEEVE, LUBRICATION - DRIVE SHAFT
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    SLEEVE, LUBRICATION - DRIVE SHAFT
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    0 ₽
  • 50
    15-20929A1 SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)
    0 ₽
  • 51
    31-38146A1 ROLLER BEARING ASSEMBLY, TAPERED - DRIVE SHAFT
    ROLLER BEARING ASSEMBLY, TAPERED - DRIVE SHAFT
    21 210 ₽

Все узлы модели:
