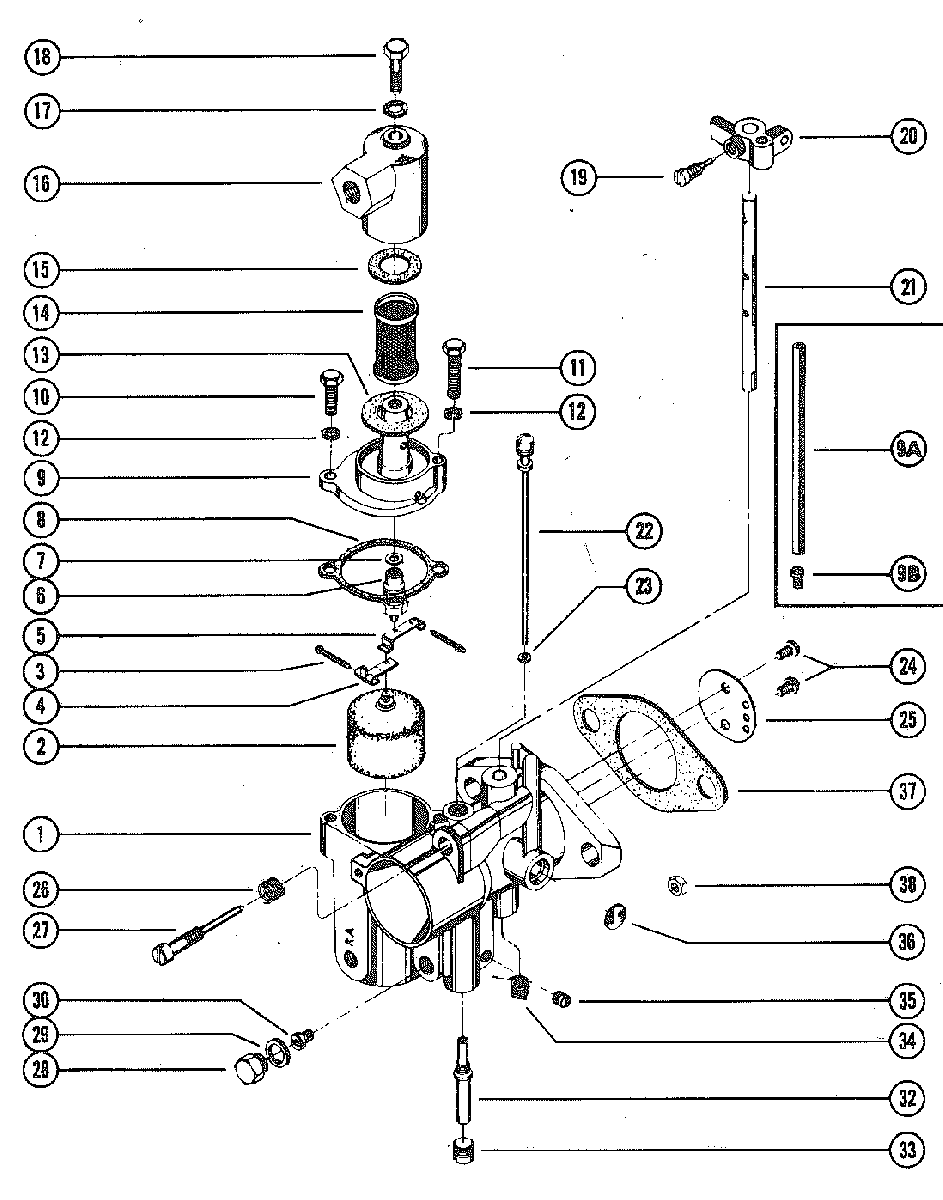

CARBURETOR ASSEMBLY, COMPLETE для Mercury - 500 4141000 THRU 4357639
-
№АртикулНазвание
-
11333-5818 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607 -
11333-5921 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UPCARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
390-8M0143356 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
490-8M0143356 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
790-8M0143356 GASKET, INLET SEATGASKET, INLET SEAT
-
890-8M0143356 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
91399-1133 COVER, FLOAT BOWL
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607COVER, FLOAT BOWL
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607 -
91399-6223 COVER, FLOAT BOWL
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
CANADA 7060608 AND UPCOVER, FLOAT BOWL
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
9A90-8M0143356 HOSE, ECONOMIZER
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UPHOSE, ECONOMIZER
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
9B1395-5815 JET, ECONOMIZER (.086)
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
CANADA 7060608 AND UPJET, ECONOMIZER (.086)
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
1010-52195 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-52196 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1213-26995 LOCKWASHER, FLOAT BOWL COVER SCREWLOCKWASHER, FLOAT BOWL COVER SCREW
-
1327-25851 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
141399-3938 SCREEN, FILTERSCREEN, FILTER
-
1527-25849 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
161399-1135 COVER, STRAINERCOVER, STRAINER
-
1790-8M0143356 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
1890-8M0143356 SCREW, STRAINER COVER FASTENINGSCREW, STRAINER COVER FASTENING
-
191395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
201399-94 LEVER, THROTTLE STOP(SEE NOTE BELOW)LEVER, THROTTLE STOP(SEE NOTE BELOW)
-
211399-2012 SHAFT, THROTTLESHAFT, THROTTLE
-
2290-8M0143356 TUBE, IDLETUBE, IDLE
-
2390-8M0143356 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
2490-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
251399-3392 SHUTTER, THROTTLE
UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607SHUTTER, THROTTLE
UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607 -
251399-5812 SHUTTER, THRORRLE
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UPSHUTTER, THRORRLE
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
2690-8M0143356 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
2790-8M0143356 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
2810-28405 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
2990-8M0143356 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
301399-1465 JET, MAIN FUEL (.065) - STANDARD
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
CANADA 7060608 AND UPJET, MAIN FUEL (.065) - STANDARD
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
301399-1465 JET, MAIN FUEL (.063) - STANDARD
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607JET, MAIN FUEL (.063) - STANDARD
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607 -
301399-1461 JET, MAIN FUEL (.061)JET, MAIN FUEL (.061)
-
301399-1459 JET, MAIN FUEL (.059)JET, MAIN FUEL (.059)
-
3290-8M0143356 NOZZLE, MAINNOZZLE, MAIN
-
3310-23178 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
3490-8M0143356 SPRING, THROTTLE SHAFT RETURNSPRING, THROTTLE SHAFT RETURN
-
3510-28845 SCREW, PLUG - BODY CHANNELSCREW, PLUG - BODY CHANNEL
-
3690-8M0143356 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
--1399-2015 GASKET AND PAKCING SET (1 PER CARBURETOR)GASKET AND PAKCING SET (1 PER CARBURETOR)
-
--1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607REPAIR PARTS KIT (1 PER CARBURETOR)
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607 -
--1399-5930 REPAIR PARTS KIT (1 PER CARBURETOR)
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UPREPAIR PARTS KIT (1 PER CARBURETOR)
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
3727-31402 GASLET. CARBURETOR FLANGEGASLET. CARBURETOR FLANGE
-
3811-29250 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
