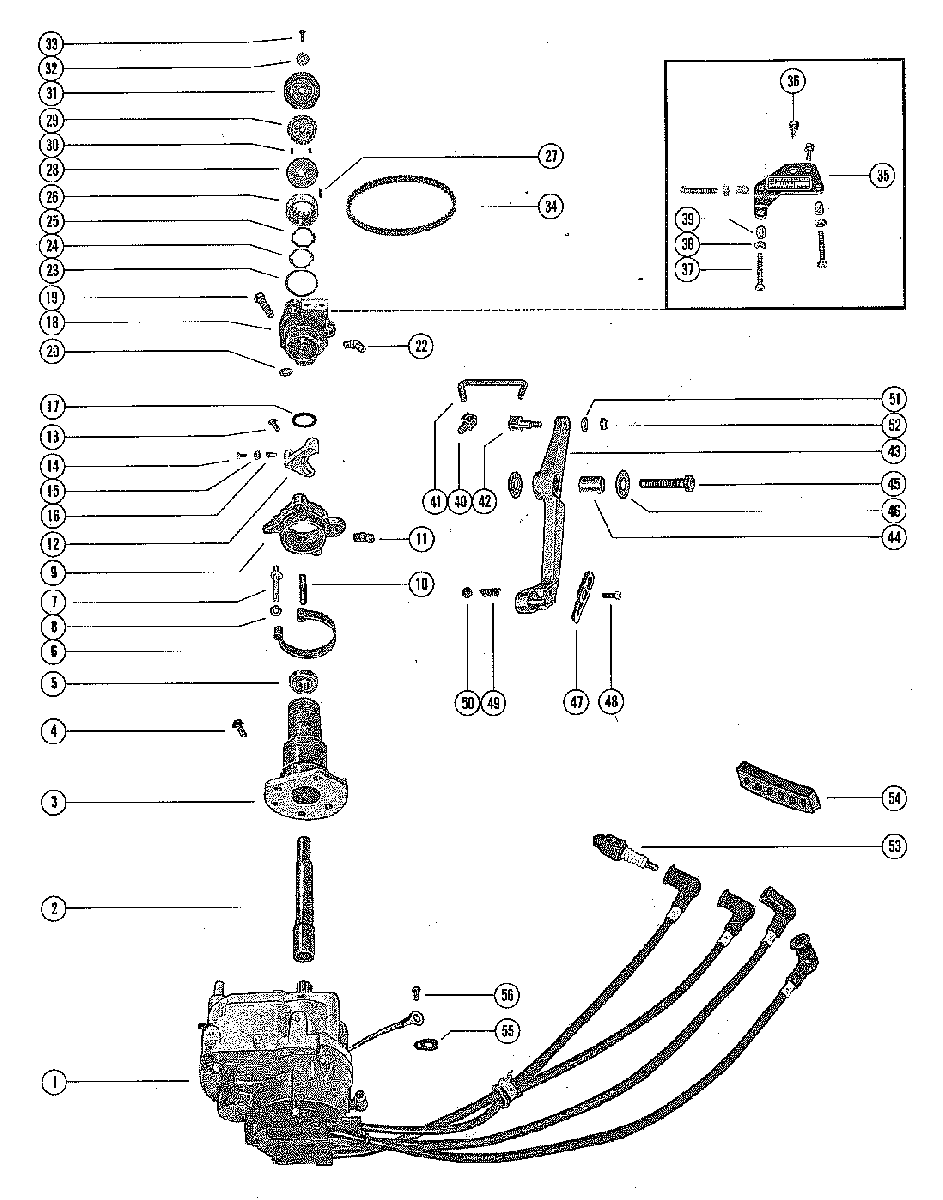

IGNITION DRIVER AND PILOT ASSEMBLY для Mercury - 500 4141000 THRU 4357639
-
№АртикулНазвание
-
1333-4674A3 IGNITION DRIVER ASSEBMLY, COMPLETEIGNITION DRIVER ASSEBMLY, COMPLETE
-
245-27951 SHFT, IGNITION DRIVESHFT, IGNITION DRIVE
-
347883A1 PILOT ASSEMBLY, IGNITION DRIVEPILOT ASSEMBLY, IGNITION DRIVE
-
410-96138 SCREW, ADAPTOR AND PILOT TO IGNITION DRIVE (5/8")SCREW, ADAPTOR AND PILOT TO IGNITION DRIVE (5/8")
-
530-20066 BALL BEARING, IGNITION DRIVE PILOTBALL BEARING, IGNITION DRIVE PILOT
-
624-27944 SPRING, HORESHOE - IGNITION DRIVE PILOTSPRING, HORESHOE - IGNITION DRIVE PILOT
-
717-27962 PIN, ANCHOR - HORSESHOE SPRING TO ANCHOR PINPIN, ANCHOR - HORSESHOE SPRING TO ANCHOR PIN
-
812-29245 WASHER, HORSESHOE SPRING TO ANCHOR PINWASHER, HORSESHOE SPRING TO ANCHOR PIN
-
948103A1 EXONOMIZER COLLAR AND PIN ASSEMBLYEXONOMIZER COLLAR AND PIN ASSEMBLY
-
1017-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINERPIN, ECONOMIZER COLLAR - SPRING RETAINER
-
1122-25094 FITTING, GREASE - ECONOMIZER COLLARFITTING, GREASE - ECONOMIZER COLLAR
-
1266778T PLATE, THROTTLE ACTUATORPLATE, THROTTLE ACTUATOR
-
1310-46420 SCREW, TRHOTTLE ACTUATOR TO ECONOMIZER COLLAR (1/2")SCREW, TRHOTTLE ACTUATOR TO ECONOMIZER COLLAR (1/2")
-
1410-23015 SCREW, ADJUSTING - THROTTLE ACTUATOR (1")SCREW, ADJUSTING - THROTTLE ACTUATOR (1")
-
1511-68219 NUT, THROTTLE ACTUATOR ADJUSTING SCREWNUT, THROTTLE ACTUATOR ADJUSTING SCREW
-
1648039 CAP, THROTTLE ACTUATOR ADJUSING SCREWCAP, THROTTLE ACTUATOR ADJUSING SCREW
-
1712-46246 WASHER, IGNITION DRIVE PILOT TO ADAPTORWASHER, IGNITION DRIVE PILOT TO ADAPTOR
-
1866856A1 ADAPTOR, IGNITION DRIVEADAPTOR, IGNITION DRIVE
-
1910-74824 SCREW, ADAPTOR AND PILOT TO CRANKCASE (1-1/4")SCREW, ADAPTOR AND PILOT TO CRANKCASE (1-1/4")
-
2012-20084 WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREWWASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW
-
2222-25094 FITTING GREASE - IGNITION DRIVE ADAPTORFITTING GREASE - IGNITION DRIVE ADAPTOR
-
2312-27939 WASHER, IGNITION DRIVER PILOTWASHER, IGNITION DRIVER PILOT
-
2414-27960 TAB WASHER, ADAPTOR CAP FASTENINGTAB WASHER, ADAPTOR CAP FASTENING
-
2513-27959 WASHER, WAVE - IGNITION DRIVER BALL BEARING TENSIONWASHER, WAVE - IGNITION DRIVER BALL BEARING TENSION
-
2627955 CAP, IGNITION DRIVE ADAPTOR AND PILOT FASTENINGCAP, IGNITION DRIVE ADAPTOR AND PILOT FASTENING
-
2728-28657 KEY, IGNITION DRIVEKEY, IGNITION DRIVE
-
2829784 HUB, DRIVEN PULLEYHUB, DRIVEN PULLEY
-
--23-29909 SPACER, DRIVE PULLEYSPACER, DRIVE PULLEY
-
2929783A1 DRIVE PULLEY ASSEMBLYDRIVE PULLEY ASSEMBLY
-
3017-24873 PIN, ROLL - FLANGEPIN, ROLL - FLANGE
-
3129785 FALNGE, DRIVEN PULLEYFALNGE, DRIVEN PULLEY
-
3212-20138 WASHER, PULLEY SCREWWASHER, PULLEY SCREW
-
3310-64652 SCREW, PULLEY (5/8")SCREW, PULLEY (5/8")
-
3420140 BELT, TIMINGBELT, TIMING
-
3553458 PLATE, THROTTLE STOPPLATE, THROTTLE STOP
-
3610-28668 SCREW, THROTTLE STOP PLATE TO ADAPTOR (7/8")SCREW, THROTTLE STOP PLATE TO ADAPTOR (7/8")
-
3710-20012 SCREW, THROTTLE STOP ADJUSTING (1 5/8")SCREW, THROTTLE STOP ADJUSTING (1 5/8")
-
3811-20013 NUT, THROTTLE STOP ADJUSTING SCREWNUT, THROTTLE STOP ADJUSTING SCREW
-
3926852 CAP, MYLON - ADJUSTING SCREWCAP, MYLON - ADJUSTING SCREW
-
4027947 SWIVEL, LINKAGE - ECONOMIZER COLLARSWIVEL, LINKAGE - ECONOMIZER COLLAR
-
4166552 LINK RODLINK ROD
-
4227948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVERSWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
-
4353143A2 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
4423-45818 BUSHING, THROTTLE LEVER SCREWBUSHING, THROTTLE LEVER SCREW
-
4510-47273 SCREW, THROTTLE LEVER TO EXHAUST COVER (1 1/2")SCREW, THROTTLE LEVER TO EXHAUST COVER (1 1/2")
-
4612-8M0042641 WASHER, THROTTLE LEVER SCREWWASHER, THROTTLE LEVER SCREW
-
4739483 LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)
-
4810-69026 SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")
-
4924-20099 SPRING, COMPRESSION - LATCH SCREWSPRING, COMPRESSION - LATCH SCREW
-
5011-826709109 NUT, LATCH SCREWNUT, LATCH SCREW
-
5112-29245 WASHER, UPPER SWIVEL TO THROTTLE LEVERWASHER, UPPER SWIVEL TO THROTTLE LEVER
-
5211-826709109 NUT, UPPER SWIVEL TO THROTTLE LEVERNUT, UPPER SWIVEL TO THROTTLE LEVER
-
5333-97180Q SPARK PLUG (CHAMPION L-76-V)SPARK PLUG (CHAMPION L-76-V)
-
5445391 SPACER, IGNITION WIRESPACER, IGNITION WIRE
-
5553-78201 BRACKET, TAB - CRANKCASE - IGNITION DRIVER GROUND STRAPBRACKET, TAB - CRANKCASE - IGNITION DRIVER GROUND STRAP
-
5610-62568 SCRW, IGNITION DRIVER GROUND STRAP TO TAB BRACKET (3/8")SCRW, IGNITION DRIVER GROUND STRAP TO TAB BRACKET (3/8")
