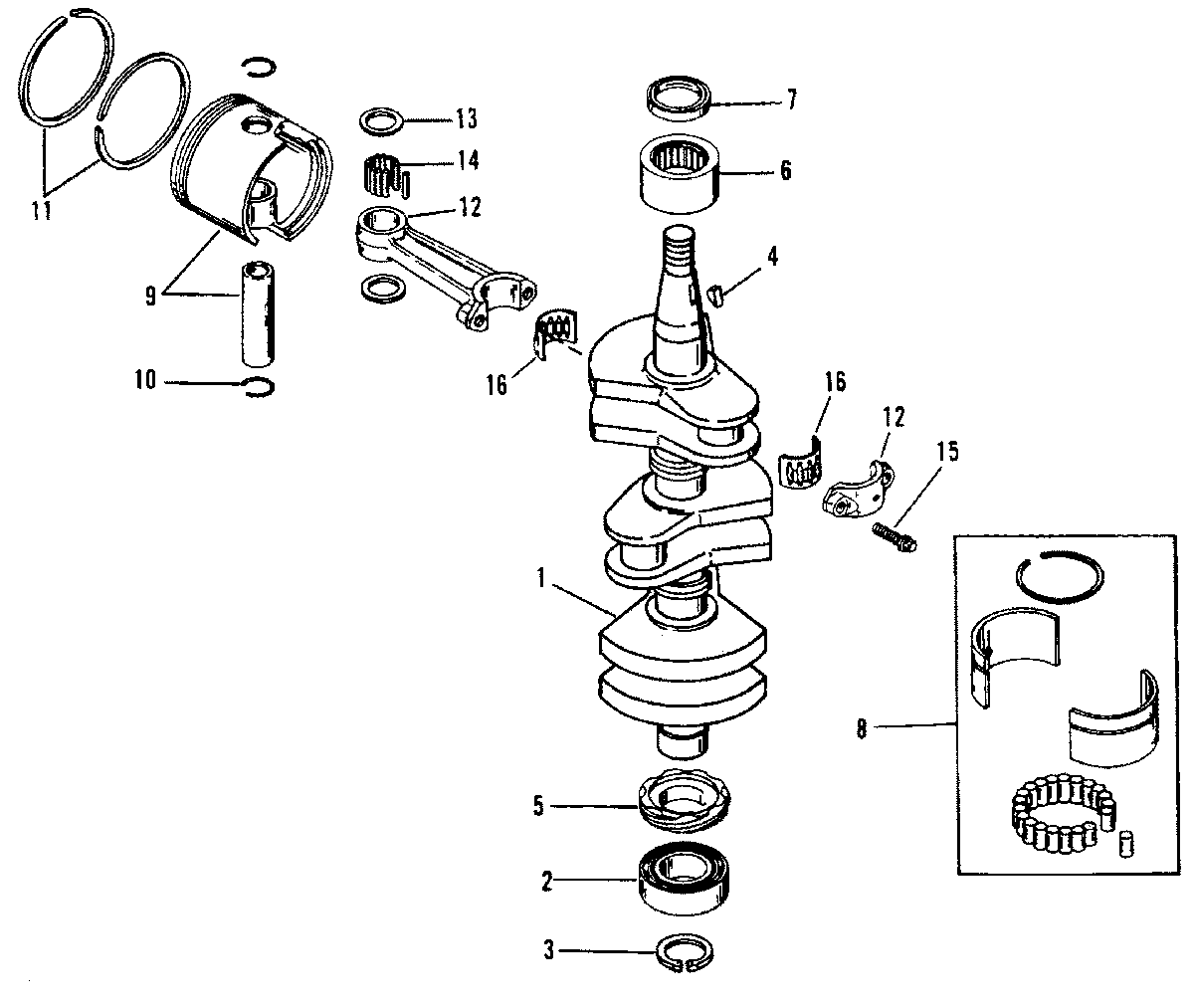

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 60 (3 CYL.) 9683055 THRU 9885344
-
№АртикулНазвание
-
1478-9611T1 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-63742T BALL BEARINGBALL BEARING
-
353-812877 RETAINING RINGRETAINING RING
-
428-91800 KEYKEY
-
543-43019A2 DRIVER GEARDRIVER GEAR
-
631-812873A1 ROLLER BEARING ASSEMBLY (TOP)ROLLER BEARING ASSEMBLY (TOP)
-
726-419531 OIL SEALOIL SEAL
-
8812881A1 ROLLER BEARING ASSEMBLY (CENTER)ROLLER BEARING ASSEMBLY (CENTER)
-
9783-9613T1 PISTON ASSEMBLY (STANDARD)PISTON ASSEMBLY (STANDARD)
-
9783-9613T2 PISTON ASSEMBLY (.015 O.S.)PISTON ASSEMBLY (.015 O.S.)
-
9783-9613T3 PISTON ASSEMBLY (.030 O.S.)PISTON ASSEMBLY (.030 O.S.)
-
1053-857196 LOCK RINGLOCK RING
-
1139-19721A6 PISTON RING (STANDARD)PISTON RING (STANDARD)
-
1139-19721A1 PISTON RING (.015 O.S.)PISTON RING (.015 O.S.)
-
1139-19721A2 PISTON RING (.030 O.S.)PISTON RING (.030 O.S.)
-
12640-9612A6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1312-8M0012298 WASHERWASHER
-
1429-47270 NEEDLE BEARINGNEEDLE BEARING
-
1510-91012 SCREWSCREW
-
1631-8M0045428 ROLLER BEARINGROLLER BEARING
-
-811208T91 POWERHEAD ASSEMBLY COMPLETE (50)
(S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)POWERHEAD ASSEMBLY COMPLETE (50)
(S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED) -
-821744T92 POWERHEAD ASSEMBLY COMPLETE (55)
(S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)POWERHEAD ASSEMBLY COMPLETE (55)
(S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED) -
-811209T91 POWERHEAD ASSEMBLY COMPLETE (60)
(S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)POWERHEAD ASSEMBLY COMPLETE (60)
(S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED) -
-811209T93 POWERHEAD (ALL)
(S/N 0D182000 & UP) (POWERHEAD INCLUDES 0.008 REED)POWERHEAD (ALL)
(S/N 0D182000 & UP) (POWERHEAD INCLUDES 0.008 REED)
