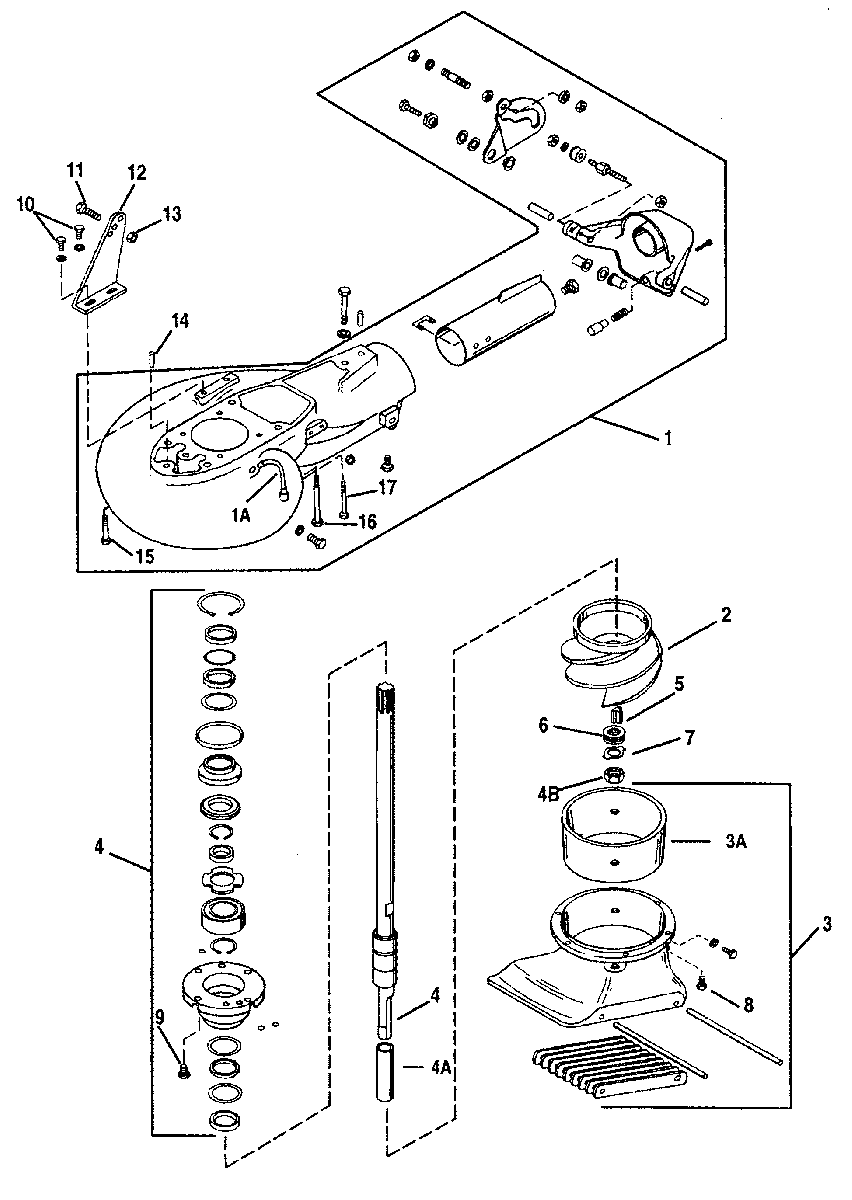

JET PUMP ASSEMBLY для Mercury - 60 (3 CYL.) 9683055 THRU 9885344
-
№АртикулНазвание
-
-856143A6 JET PUMP ASSEMBLY (BLACK)JET PUMP ASSEMBLY (BLACK)
-
-856143A6 JET PUMP ASSEMBLY(GRAY)JET PUMP ASSEMBLY(GRAY)
-
1801411T60 HOUSING-PUMPHOUSING-PUMP
-
1A32-827490 HOSE-LUBEHOSE-LUBE
-
247-855708T60 IMPELLERIMPELLER
-
380141260 HOUSING-INTAKEHOUSING-INTAKE
-
3A8271882 LINERLINER
-
445-80141360 DRIVESHAFTDRIVESHAFT
-
4A23-8271891 SLEEVESLEEVE
-
4B11-8271901 NUTNUT
-
528-801405875 KEYKEY
-
615-801404875 SHIMSHIM
-
714-801403875 TAB WASHERTAB WASHER
-
810-818146 SCREW (.312-18 X .88)SCREW (.312-18 X .88)
-
910-19923088 SCREW (1/4-20 X .875)SCREW (1/4-20 X .875)
-
1010-19923062 SCREW (1/4-20 X .625)SCREW (1/4-20 X .625)
-
1110-60411 SCREW (.312-18 X 1.25)SCREW (.312-18 X 1.25)
-
12801410 BRACKETBRACKET
-
1311-82670910 NUTNUT
-
1417-801407 PIN-DOWELPIN-DOWEL
-
1510-4010860 SCREW (M10 X 60)SCREW (M10 X 60)
-
1610-4010890 SCREW (M10 X 90)SCREW (M10 X 90)
-
1710-4010870 SCREW (M10 X 70)SCREW (M10 X 70)
-
1810-95802 SCREW (.375-16 X .75)SCREW (.375-16 X .75)
-
1912-856774 WASHERWASHER
