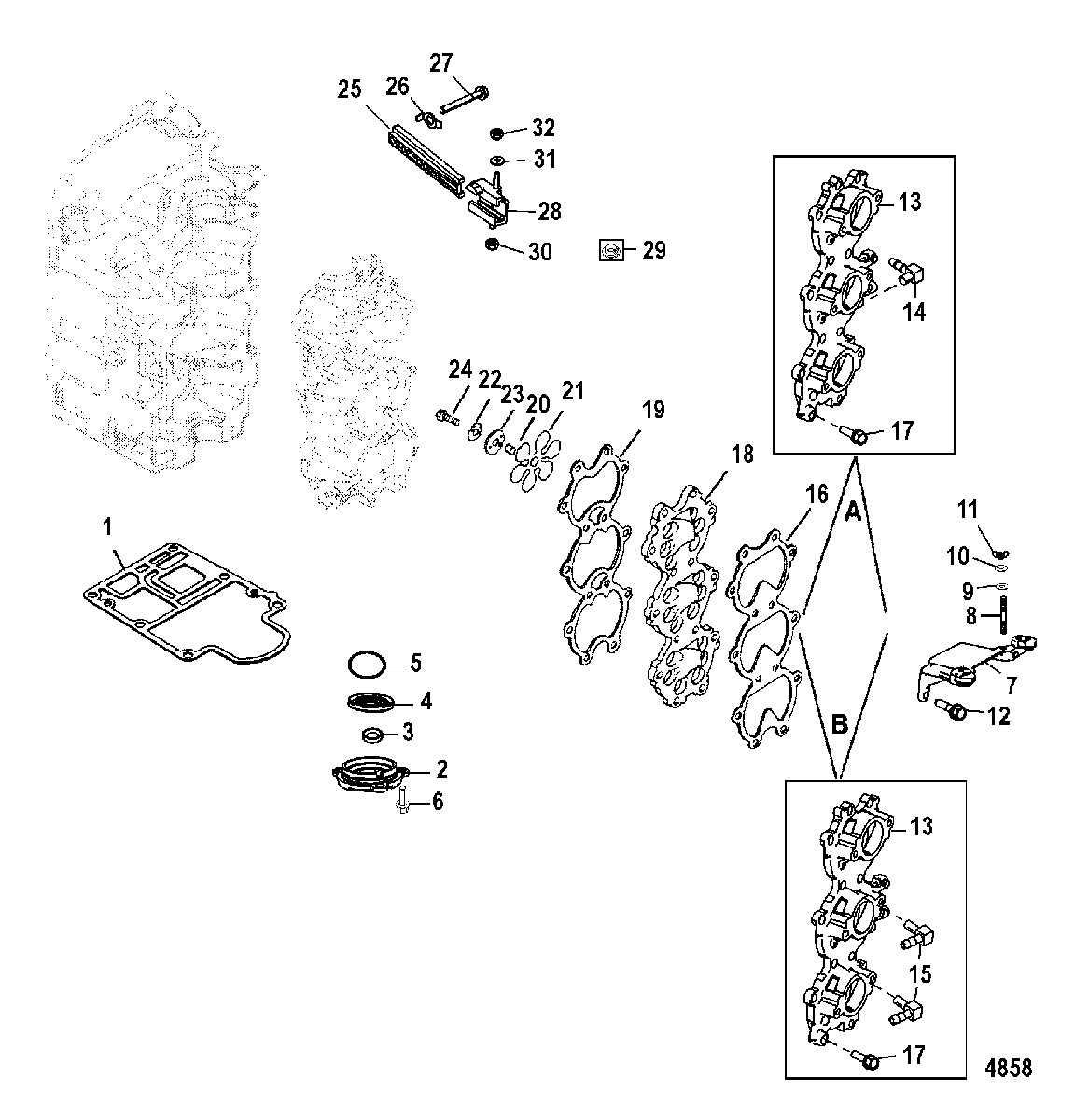

Induction Manifold and Reed Block для Mercury - 60 (3 CYL.) 9973100 THRU 0P016999
-
№АртикулНазвание
-
127-8M0000822 GASKETGASKET
-
21171-9812T9 END CAP ASSEMBLY, LowerEND CAP ASSEMBLY, Lower
-
326-66301 SEAL, OilSEAL, Oil
-
426-41953 SEALSEAL
-
525-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
610-81742720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
719077A07 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
816-8161949 STUDSTUD
-
912-49221 WASHER, (.187 x .500 x .062) Neoprene
ELECTRICWASHER, (.187 x .500 x .062) Neoprene
ELECTRIC -
1012-69056 WASHER, (.255 x .620 x .030) Stainless Steel
ELECTRICWASHER, (.255 x .620 x .030) Stainless Steel
ELECTRIC -
1111-816872 WING NUT
ELECTRICWING NUT
ELECTRIC -
1210-82127335 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
13827998A1 MANIFOLD ASSEMBLY, InductionMANIFOLD ASSEMBLY, Induction
-
1422-19725 ELBOW
(ELECTRIC)ELBOW
(ELECTRIC) -
1522-19725 ELBOW
(MANUAL)ELBOW
(MANUAL) -
1627-812869 GASKETGASKET
-
1710-81742730 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1819075A3 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
1927-812868 GASKETGASKET
-
20NSS NOT SOLD SEPARATE, Dowel PinNOT SOLD SEPARATE, Dowel Pin
-
2134-812880A03 REED ASSEMBLYREED ASSEMBLY
-
2214-429821 TAB WASHERTAB WASHER
-
23812879002 RETAINER, ReedRETAINER, Reed
-
2410-4000171 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2542881A1 SHIFT RAIL ASSEMBLYSHIFT RAIL ASSEMBLY
-
2614-42981 TAB WASHERTAB WASHER
-
2710-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
28988851 SLIDESLIDE
-
2923-48475 BUSHINGBUSHING
-
3011-401386 NUT, (M6)NUT, (M6)
-
3112-35459 WASHERWASHER
-
3211-401386 NUT, (M6)NUT, (M6)
-
-22-15026 CAP
(FOR USE ON INDUCTION MANIFOLD)CAP
(FOR USE ON INDUCTION MANIFOLD) -
-27-812867A97 GASKET SETGASKET SET
-
-852071T97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
