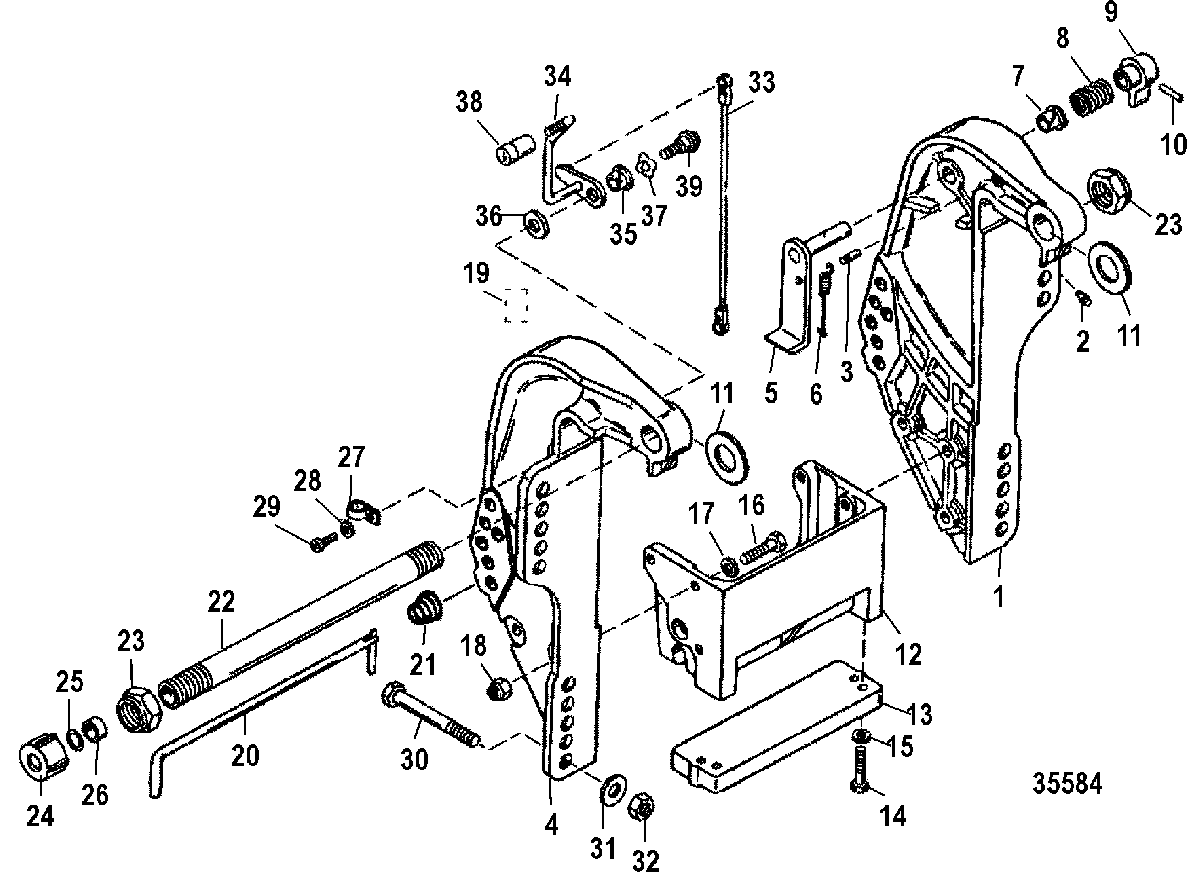

Transom Bracket, Electric для Mercury - 60 (3 CYL.) 9973100 THRU 0P016999
-
№АртикулНазвание
-
13418-822866T04 BRACKET ASSEMBLY, Transom
(BLACK) PORTBRACKET ASSEMBLY, Transom
(BLACK) PORT -
13418-822866A2 BRACKET ASSEMBLY, Transom
(GRAY) PORTBRACKET ASSEMBLY, Transom
(GRAY) PORT -
222-98727 FITTING, Grease
PORTFITTING, Grease
PORT -
317-99604 PIN, Groove
PORTPIN, Groove
PORT -
43418-822865T05 BRACKET, Transom
(BLACK) STARBOARDBRACKET, Transom
(BLACK) STARBOARD -
43418-822865F3 BRACKET, Transom
(GRAY) STARBOARDBRACKET, Transom
(GRAY) STARBOARD -
5893704T01 LEVER ASSEMBLY, Tilt Lock
(BLACK)LEVER ASSEMBLY, Tilt Lock
(BLACK) -
5893704T01 LEVER ASSEMBLY, Tilt Lock
(GRAY)LEVER ASSEMBLY, Tilt Lock
(GRAY) -
624-99622 SPRINGSPRING
-
723-65830 NYLINERNYLINER
-
824-812708 SPRINGSPRING
-
9812709 KNOB
(BLACK)KNOB
(BLACK) -
9812709 KNOB
(GRAY)KNOB
(GRAY) -
1017-99615 PIN, GroovePIN, Groove
-
1112-19619 WASHERWASHER
-
1218486A08 BRACKET, Anchor
(BLACK)BRACKET, Anchor
(BLACK) -
1218486A08 BRACKET, Anchor
(GRAY)BRACKET, Anchor
(GRAY) -
1397-818298Q1 ANODE KITANODE KIT
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1610-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1610-4000355 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1713-400257 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
1811-401388 NUT, (M8)NUT, (M8)
-
19NSS NOT SOLD SEPARATE, Decal-Tilt Lock
NON POWER TRIMNOT SOLD SEPARATE, Decal-Tilt Lock
NON POWER TRIM -
2017-8M0026068 PIN ASSEMBLY, Tilt Lock
NON POWER TRIMPIN ASSEMBLY, Tilt Lock
NON POWER TRIM -
2124-821461 SPRING
NON POWER TRIMSPRING
NON POWER TRIM -
228M0041938 TILT TUBETILT TUBE
-
2311-858869 NUT, (7/8-14)NUT, (7/8-14)
-
2419624A1 SEAL KITSEAL KIT
-
2525-29619 O-RING, (.583 x .103)O-RING, (.583 x .103)
-
2623-78861 SPACERSPACER
-
2754-22740 CLIP
POWER TRIMCLIP
POWER TRIM -
288M0084613 C WASHER
POWER TRIMC WASHER
POWER TRIM -
2910-878608 SCREW, (#10-16 x .500)
POWER TRIMSCREW, (#10-16 x .500)
POWER TRIM -
3010-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
3112-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
3211-91962 NUT, (.500-20)NUT, (.500-20)
-
338M0084737 LINK
NON POWER TRIMLINK
NON POWER TRIM -
3419615A05 LEVER ASSEMBLY, Tilt
NON POWER TRIMLEVER ASSEMBLY, Tilt
NON POWER TRIM -
3523-812707 BUSHING
NON POWER TRIMBUSHING
NON POWER TRIM -
3612-8M0042643 WASHER, (.520 x .850 x .060) Nylon - Black
NON POWER TRIMWASHER, (.520 x .850 x .060) Nylon - Black
NON POWER TRIM -
3713-99611 WAVE WASHER
NON POWER TRIMWAVE WASHER
NON POWER TRIM -
388M0007469 TILT KNOB
NON POWER TRIMTILT KNOB
NON POWER TRIM -
3910-19611 SCREW, (.375-16 x .62)
NON POWER TRIMSCREW, (.375-16 x .62)
NON POWER TRIM
