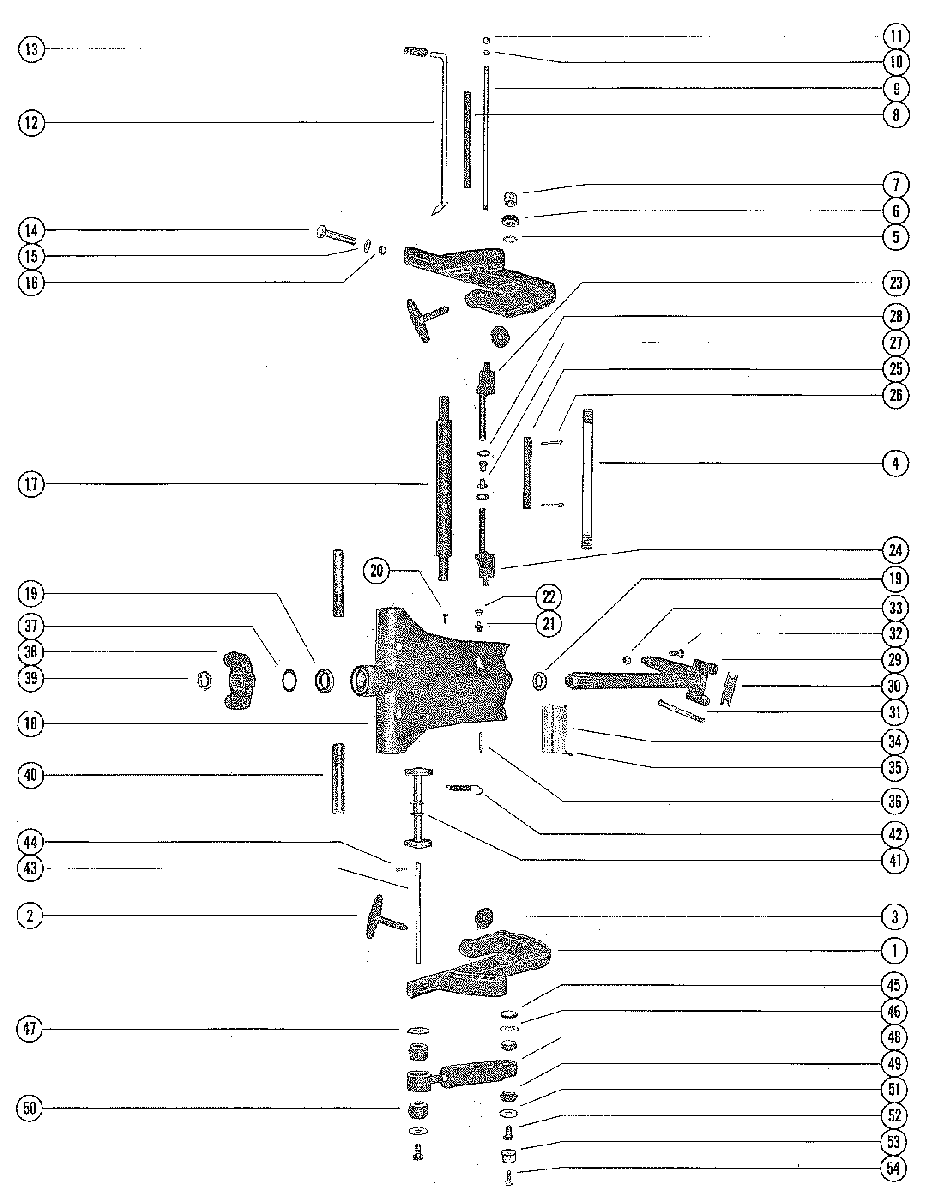

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 650 (3 CYL.) 3293184 THRU 3525440
-
№АртикулНазвание
-
11440-8394A1 CLAMP BRACKET ASSEMBLYCLAMP BRACKET ASSEMBLY
-
228403A3 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
312-28404 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
48M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
-
512-52864 WASHER, CLAMP BRACKET TILT TUBEWASHER, CLAMP BRACKET TILT TUBE
-
611-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
753078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
823-59624 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
916-59625 STUD, CLAMP BRACKET (9 1/2")STUD, CLAMP BRACKET (9 1/2")
-
1013-26993 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1111-28770 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1217-8M0026068 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1332-28052 SLEEVE, RUBBER - TILT LOCK PIN BUMPERSLEEVE, RUBBER - TILT LOCK PIN BUMPER
-
1410-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
-
1512-46765 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1410-68299 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")
-
1512-68300 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1611-82670912 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
1755-28416 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
181489-8597A4 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
-
181490-8599A6 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
-
1926-32911 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
2010-47828 SCREW, DRIVE - SWIVEL BRACKETSCREW, DRIVE - SWIVEL BRACKET
-
2122-69059 FITTING, GREASEFITTING, GREASE
-
2219-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTINGLUBRICAP, SWIVEL BRACKET GREASE FITTING
-
2376386 TILK LOCK ASSEMBLY, STARBOARDTILK LOCK ASSEMBLY, STARBOARD
-
2476385T TILT LOCK ASSEMBLY, PORTTILT LOCK ASSEMBLY, PORT
-
2547802 TUBE, TILT LOCKTUBE, TILT LOCK
-
2618-47959 COTTER PIN, TILT LOCK TUBECOTTER PIN, TILT LOCK TUBE
-
2723-47803 BUSHING, TILT LOCK TUBEBUSHING, TILT LOCK TUBE
-
2813-69150 WASHER, WAVE - TILT LOCK TUBEWASHER, WAVE - TILT LOCK TUBE
-
2960316A2 SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
-
2969540A2 SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
-
3030711 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
3110-33986 BOLT, UPPER MOUNT TO SWIVEL PIN (5 1/4")BOLT, UPPER MOUNT TO SWIVEL PIN (5 1/4")
-
3210-31830 SCREW, RIDE-GUIDE ATTACHING (1 3/4")SCREW, RIDE-GUIDE ATTACHING (1 3/4")
-
3311-8M0042636 NUT, RIDE-GUIDE ATTACHING SCREWNUT, RIDE-GUIDE ATTACHING SCREW
-
3438-56267 SERIAL PLATESERIAL PLATE
-
3510-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKETSCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
-
3617-25598 PIN, REVERSE LOCK SPRING ATTACHINGPIN, REVERSE LOCK SPRING ATTACHING
-
3712-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
-
3712-26837 WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
-
3877416T1 YOKE, BOTTOMYOKE, BOTTOM
-
3911-71956 NUT, SWIVEL PIN RETAININGNUT, SWIVEL PIN RETAINING
-
4055-696531 PIN, LOWER SHOCK MOUNTINGPIN, LOWER SHOCK MOUNTING
-
4187432 REVERSE LOCK ASSEMBLYREVERSE LOCK ASSEMBLY
-
4224-29821 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
4356349 SHAFT, REVERSE LOCK PIVOTSHAFT, REVERSE LOCK PIVOT
-
4418-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
4523-28199 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKETSPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
-
4612-28196 WASHER, UPPER BUSHING RETAINER (INNER)WASHER, UPPER BUSHING RETAINER (INNER)
-
4712-59378 WASHER, LOWER BUSHING RETAINER (INNER)WASHER, LOWER BUSHING RETAINER (INNER)
-
4855-58780A7 SHOCK ABSORBERSHOCK ABSORBER
-
4923-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
-
5023-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
-
5112-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
-
5210-69375A1 SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")
-
5370679 COVER, UPPER AND LOWER SHOCK MOUNTING PINCOVER, UPPER AND LOWER SHOCK MOUNTING PIN
-
5410-37655 SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")
