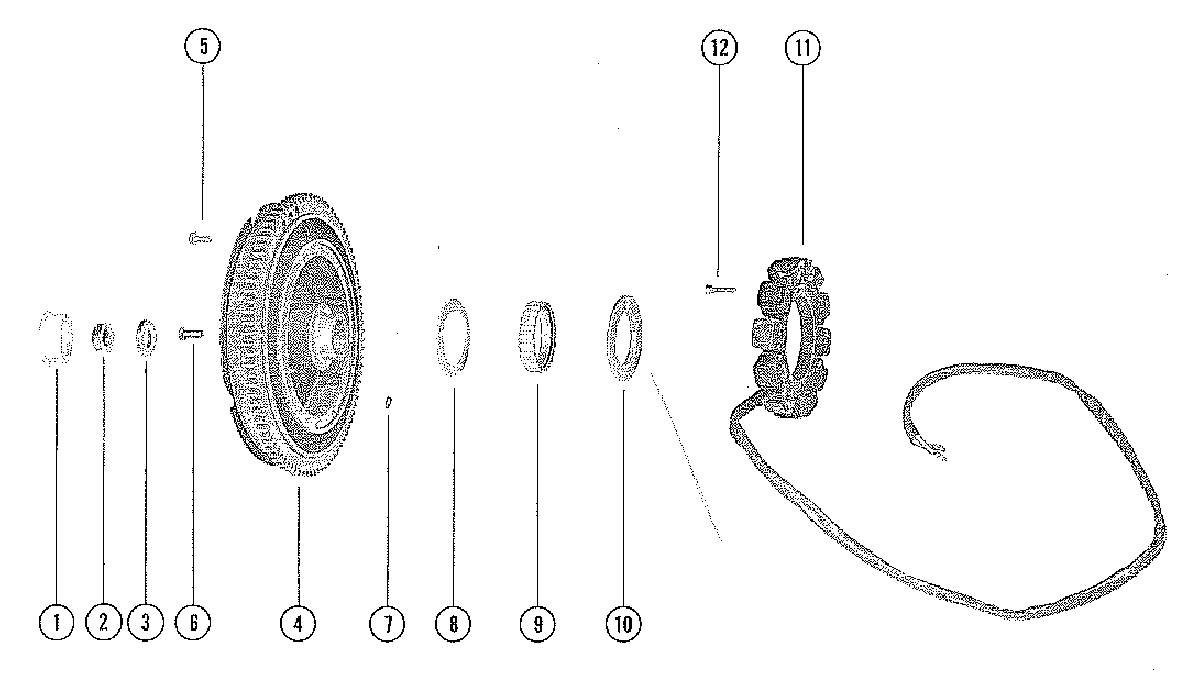

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 650 (3 CYL.) 3293184 THRU 3525440
-
№АртикулНазвание
-
119-45907 PLUG, FLYWHEEL PULLER THREADSPLUG, FLYWHEEL PULLER THREADS
-
211-52901 NUT, FLYWHEELNUT, FLYWHEEL
-
312-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
4225-4591A7 FLYWHEEL ASSEMBLY, COMPLETEFLYWHEEL ASSEMBLY, COMPLETE
-
510-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (3/8")SCREW, FLEXIBLE PLATE TO FLYWHEEL (3/8")
-
610-68997 SCREW, PLATE AND HUB TO FLEXIBLE PLATE (3/4")SCREW, PLATE AND HUB TO FLEXIBLE PLATE (3/4")
-
717-26618 PIN, DOWEL - PULLEY TO FLYWHEELPIN, DOWEL - PULLEY TO FLYWHEEL
-
829788 FLANGE, FLYWHEEL PULLEYFLANGE, FLYWHEEL PULLEY
-
930306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
1029787 HUB, FLYWHEEL PULLEYHUB, FLYWHEEL PULLEY
-
11398-4634 STATOR, ALTERNATORSTATOR, ALTERNATOR
-
1210-57021 SCREW, STATOR TO UPPER END CAP (7/8")SCREW, STATOR TO UPPER END CAP (7/8")
Все узлы модели:
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- COWL SUPPORT BRACKETS
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DISTRIBUTOR ADAPTOR AND THROTTLE LINKAGE
- DISTRIBUTOR HOUSING AND ROTOR
- DRIVE SHAFT HOUSING ASSEMBLY
- • FLYWHEEL ASSEMBLY AND STATOR
- FUEL PUMP, FUEL FILTER AND FUEL LINE
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- MISCELLANEOUS PARTS/ACCESSORIES
- SHIFT LINKAGE AND EXHAUST PLATE
- STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS
