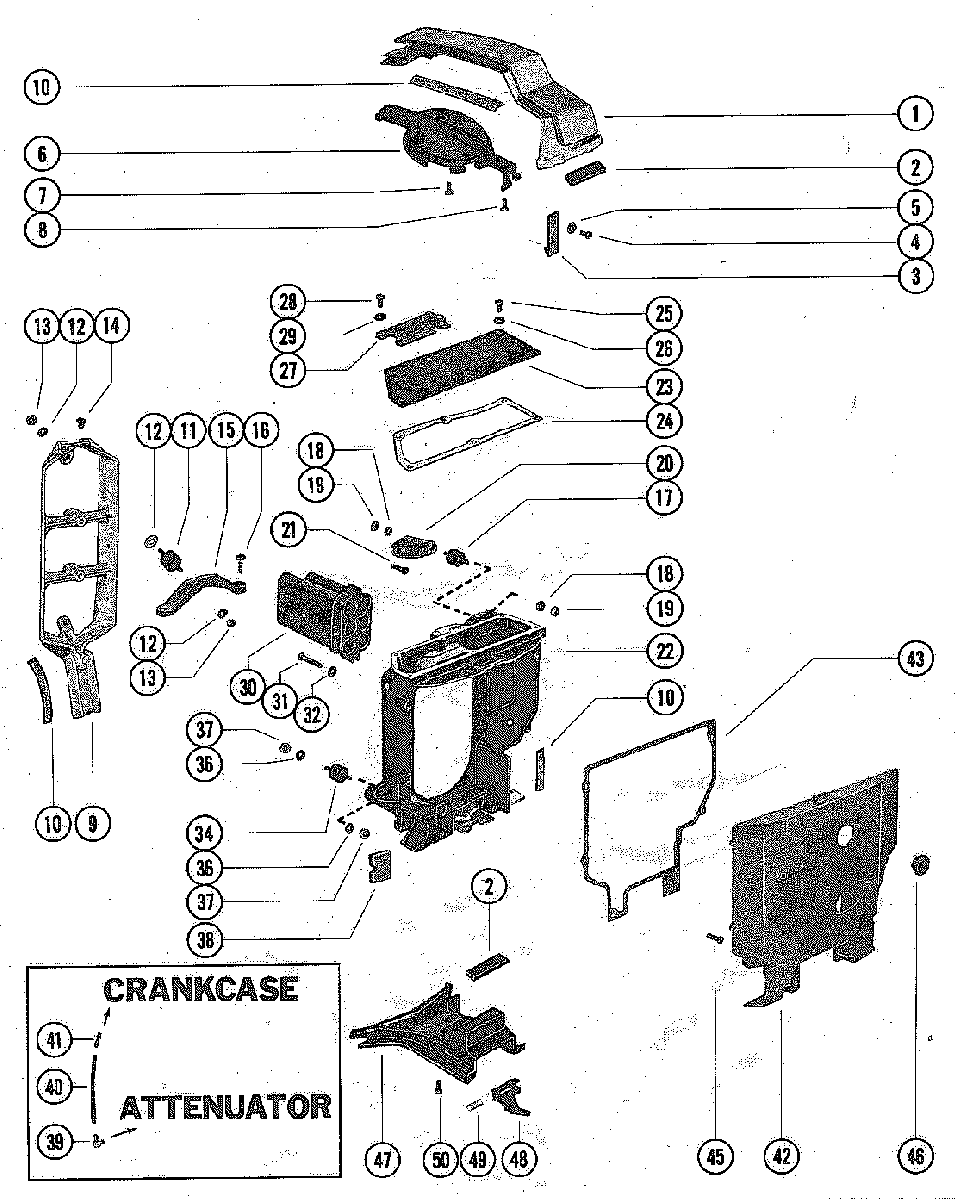

COWL SUPPORT BRACKETS для Mercury - 650 (3 CYL.) 9112989 THRU 9135824
-
№АртикулНазвание
-
173641A1 BRACKET, COWL SUPPORT-TOPBRACKET, COWL SUPPORT-TOP
-
262444 SEAL, RUBBER-TOP BRACKET AND COVER MOUNTING PLATESEAL, RUBBER-TOP BRACKET AND COVER MOUNTING PLATE
-
379652 CLIP, TOP COWL SUPPORT BRACKETCLIP, TOP COWL SUPPORT BRACKET
-
410-48408 SCREW, CLIP TO TOP COWL SUPPORT (1/2")SCREW, CLIP TO TOP COWL SUPPORT (1/2")
-
512-45075 WASHER, CLIP TO TOP COWL SUPPORT BRACKETWASHER, CLIP TO TOP COWL SUPPORT BRACKET
-
679490 SHIELD FLYWHEELSHIELD FLYWHEEL
-
710-37656 SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8")SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8")
-
810-48408 SCREW, SHIELD TO TOP SUPPORT BRACKET (1/2")SCREW, SHIELD TO TOP SUPPORT BRACKET (1/2")
-
974510A2 BRACKET, COWL SUPPORT-REARBRACKET, COWL SUPPORT-REAR
-
10698761 SEAL, REAR BRACKET AND TOP BRACKETSEAL, REAR BRACKET AND TOP BRACKET
-
1190435 MOUNT, RUBBER-BRACE TO REAR SUPPORT BRACKETMOUNT, RUBBER-BRACE TO REAR SUPPORT BRACKET
-
1212-69057 WASHER, RUBBER MOUNT TO REAT SUPPORT BRACKETWASHER, RUBBER MOUNT TO REAT SUPPORT BRACKET
-
1311-826709109 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKETNUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
14269011 STOP, RUBBER-REAR SUPPORT BRACKETSTOP, RUBBER-REAR SUPPORT BRACKET
-
1560116 BRACE, REAR COWL SUPPORT BRACKET (TOP)BRACE, REAR COWL SUPPORT BRACKET (TOP)
-
1610-24878 SCREW, SUPPORT BRK. BRACE TO CYL. BLOCK COVER (1 3/8")SCREW, SUPPORT BRK. BRACE TO CYL. BLOCK COVER (1 3/8")
-
1790435 MOUNT, RUBBER- FRONT SUPPORT BRACKET TO BRACKETMOUNT, RUBBER- FRONT SUPPORT BRACKET TO BRACKET
-
1812-69057 WASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKETWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
-
1911-8267089 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKETNUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
-
2071097 BRACKET, RUBBER MOUNTBRACKET, RUBBER MOUNT
-
2110-39349 SCREW, BRACKET TO CRANKCASE (3/4")SCREW, BRACKET TO CRANKCASE (3/4")
-
2279489 ATTENUATOR, SOUNDATTENUATOR, SOUND
-
2376218 COVER, TOP-SOUND ATTENUATORCOVER, TOP-SOUND ATTENUATOR
-
2427-71096 GASKET, TOP COVERGASKET, TOP COVER
-
2510-37571 SCREW, TOP COVER TO SOUND ATTENUATOR (1/2")SCREW, TOP COVER TO SOUND ATTENUATOR (1/2")
-
2612-56681 WASHER, TOP COVER SCREWWASHER, TOP COVER SCREW
-
2775841 COVER, MANUAL CHOKECOVER, MANUAL CHOKE
-
2810-37978 SCREW, COVER TO TOP COVERSCREW, COVER TO TOP COVER
-
2912-56681 WASHER, COVER SCREWWASHER, COVER SCREW
-
3073986 AIR MANIFOLDAIR MANIFOLD
-
3110-69093 SCREW, AIR MANIFOLD TO SOUND ATTENUATORSCREW, AIR MANIFOLD TO SOUND ATTENUATOR
-
3212-29245 WASHER, AIR MANIFOLD SCREWWASHER, AIR MANIFOLD SCREW
-
3490435 MOUNT, RUBBER-FRONT SUPPORT TO STARTER MOTOR COVERMOUNT, RUBBER-FRONT SUPPORT TO STARTER MOTOR COVER
-
3612-69057 WASHER, RUBBER MOUNT ATTACHINGWASHER, RUBBER MOUNT ATTACHING
-
3711-8267089 NUT, RUBBER MOUNT ATTACHINGNUT, RUBBER MOUNT ATTACHING
-
3876410 SEAL, FUEL CONNECTOR-FRONT SUPPORT BRACKETSEAL, FUEL CONNECTOR-FRONT SUPPORT BRACKET
-
3921-428671 CONNECTOR ASSEMBLY, ATTENUATORCONNECTOR ASSEMBLY, ATTENUATOR
-
4032-9938779 TUBE, VENT (LOWER)TUBE, VENT (LOWER)
-
4122-56759 FITTING, CRANKCASE VENT (PRESS IN)FITTING, CRANKCASE VENT (PRESS IN)
-
4272956 COVER, SOUND ATTENUATOR (FRONT)COVER, SOUND ATTENUATOR (FRONT)
-
4327-76579 GASKET, FRONT COVERGASKET, FRONT COVER
-
4510-37571 SCREW, FRONT COVER TO SOUND ATTENUATOR (1/2")SCREW, FRONT COVER TO SOUND ATTENUATOR (1/2")
-
4619-73336 PLUG, FRONT COVERPLUG, FRONT COVER
-
4776251A1 PLATE ASSEMBLY, FRONT COVER MOUNTINGPLATE ASSEMBLY, FRONT COVER MOUNTING
-
4876264 LATCH, FRONT COVER ATTACHINGLATCH, FRONT COVER ATTACHING
-
4924-60295 SPRING, FRONT COVER LATCHSPRING, FRONT COVER LATCH
-
5010-28635 SCREW, COVER PLATE TO SUPPORT BRACKET (5/8")SCREW, COVER PLATE TO SUPPORT BRACKET (5/8")
