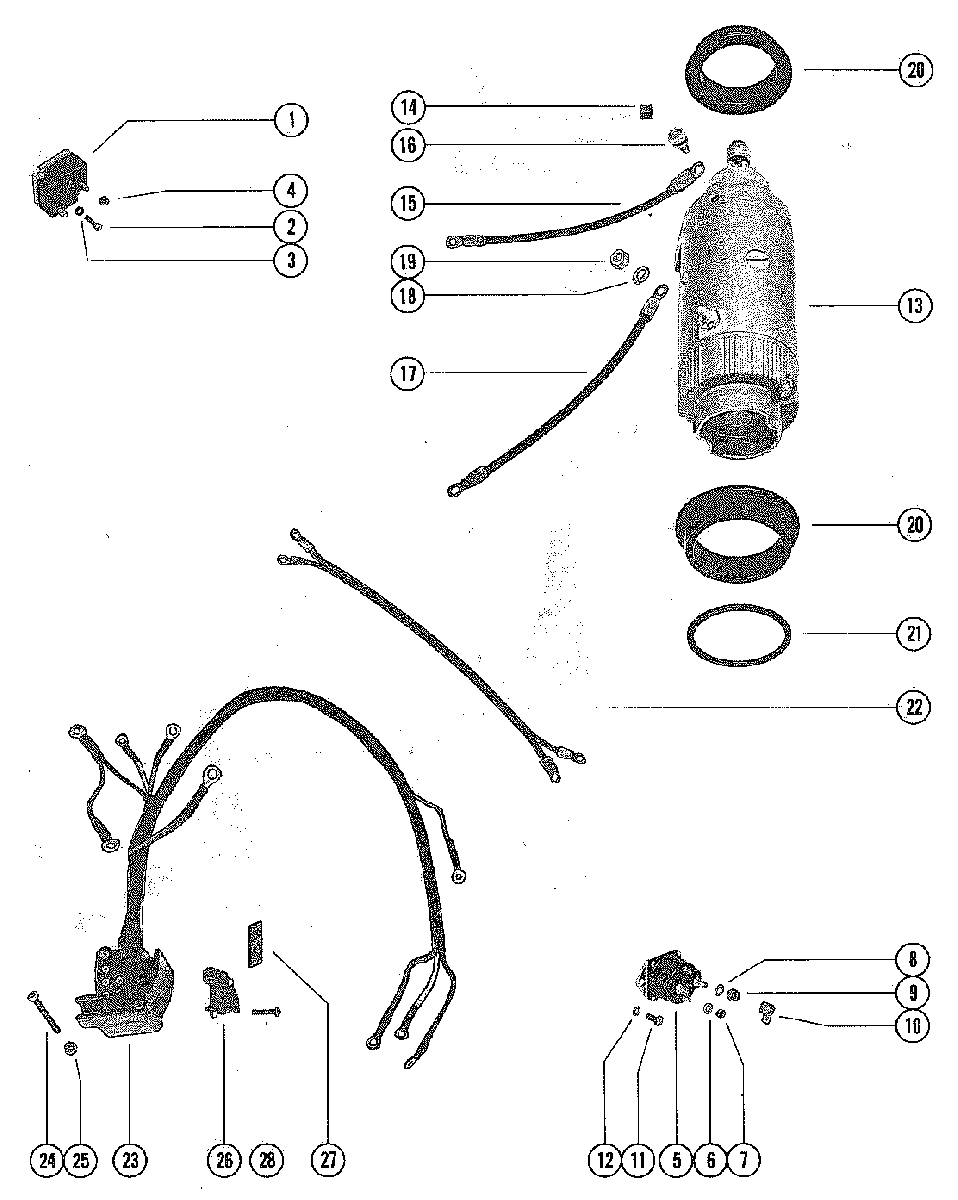

STARTER MOTOR, STARTER SOLENOID AND RECTIFIER ASSEMBLY для Mercury - 650 (3 CYL.) 9112989 THRU 9135824
-
№АртикулНазвание
-
18M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
210-38055 SCREW, RECTIFIER TO PLATE (5/8")SCREW, RECTIFIER TO PLATE (5/8")
-
313-26996 LOCKWASHER, RECTIFIER SCREWLOCKWASHER, RECTIFIER SCREW
-
411-45076 NUT, RECTIFIER TERMINALNUT, RECTIFIER TERMINAL
-
589-853654A1 STARTER SOLENOIDSTARTER SOLENOID
-
613-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
711-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
813-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")LOCKWASHER, SOLENOID TERMINAL (5/16")
-
911-68292 NUT, SOLENOID TERMINAL (5/16")NUT, SOLENOID TERMINAL (5/16")
-
1046265 BOOT, TERMINAL-STARTER SOLENOIDBOOT, TERMINAL-STARTER SOLENOID
-
1110-69054 SCREW, SOLENOID TO TOP COVER (3/4")SCREW, SOLENOID TO TOP COVER (3/4")
-
1213-26992 WASHER, SOLENOID SCREWWASHER, SOLENOID SCREW
-
1350-44369A1 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
148M0043376 STOP, RUBBER- STARTER MOTORSTOP, RUBBER- STARTER MOTOR
-
1584-60872 CABLE, STARTER TO SOUND ATTENTUATOR-BLACK (9 1/2")CABLE, STARTER TO SOUND ATTENTUATOR-BLACK (9 1/2")
-
1610-28635 SCREW, CABLE TO STARTER MOTOR (5/8")SCREW, CABLE TO STARTER MOTOR (5/8")
-
1784-93389A6 CABLE, SOLENOID TO STARTER MOTOR-YELLOW (9 1/2")CABLE, SOLENOID TO STARTER MOTOR-YELLOW (9 1/2")
-
1813-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
1911-20890 NUT, STARTER MOTOR TERMINALNUT, STARTER MOTOR TERMINAL
-
2023-8M0034918 COLLAR, RUBBER-STARTER MOUNTCOLLAR, RUBBER-STARTER MOUNT
-
2123-56774 SPACER, COLLAR TO MOUNTING BRACKETSSPACER, COLLAR TO MOUNTING BRACKETS
-
2284-62862A4 CABLE, BATTERY TO STARTER SOLENOIDCABLE, BATTERY TO STARTER SOLENOID
-
2384-73204 WIRING HARNESS (INTERNAL)WIRING HARNESS (INTERNAL)
-
2410-69560 SCREW, WIRING HARNESS TO FRONT SUPPORT BRACKET (1 1/4")SCREW, WIRING HARNESS TO FRONT SUPPORT BRACKET (1 1/4")
-
2511-46438 NUT, WIRING HARNESS SCREWNUT, WIRING HARNESS SCREW
-
2660114A1 BRACKET ASSEMBLY, WIRING HARNESSBRACKET ASSEMBLY, WIRING HARNESS
-
2726-60925 SEAL, WIRING HARNESS BRACKETSEAL, WIRING HARNESS BRACKET
-
2810-89778 SCREW, WIRING HARNESS BRACKET MOUNTING (2 1/4")SCREW, WIRING HARNESS BRACKET MOUNTING (2 1/4")
Все узлы модели:
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP AND SWIVEL BRACKET ASSEMBLY (G2)
- COWL SUPPORT BRACKETS
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY (G4)
- EXHAUST AND MANIFOLD COVERS
- FLYWHEEL, SWITCH BOX, IGNITION COIL AND STATOR ASSEMBLY
- FUEL PUMP, FUEL FILTER AND FUEL LINES
- GEAR HOUSING ASSEMBLY, COMPLETE (G6)
- GEAR HOUSING ASSEMBLY, COMPLETE (G8)
- MISCELLANEOUS PARTS/ACCESORIES
- SHIFT LINKAGE AND EXHAUST PLATE
- • STARTER MOTOR, STARTER SOLENOID AND RECTIFIER ASSEMBLY
- THROTTLE CONTROL LINKAGE AND SPARK ADVANCE
