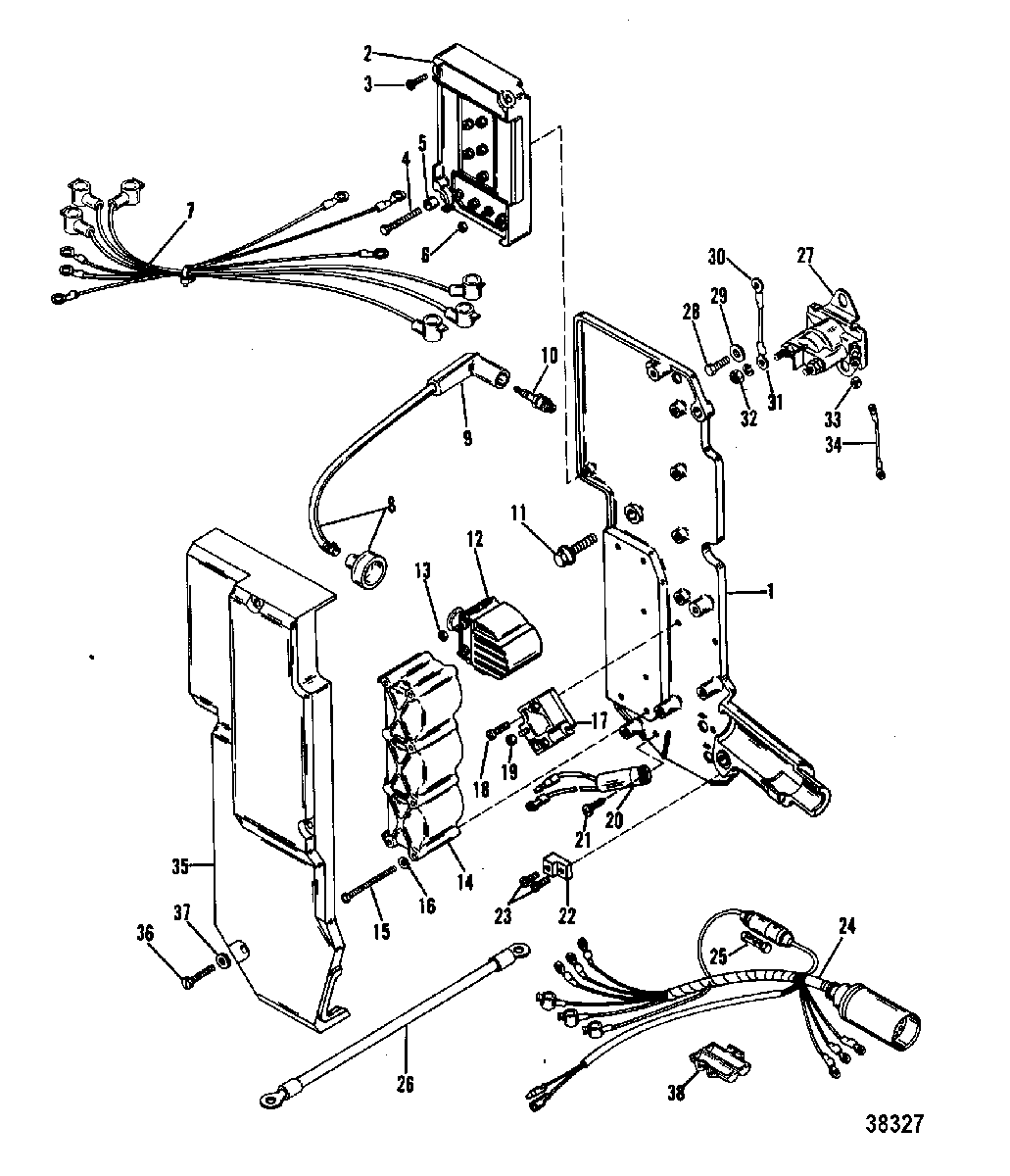

ELECTRICAL COMPONENTS для Mercury - 70 (3 CYL.) 9483121 THRU 9506480
-
№АртикулНазвание
-
142968A23 PLATE, IGNITIONPLATE, IGNITION
-
2332-7778A12 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
310-69079 SCREW, (#10-16 x .440), SWITCH BOXSCREW, (#10-16 x .440), SWITCH BOX
-
410-40007110 SCREW, (M5 x 30), SWITCH BOXSCREW, (M5 x 30), SWITCH BOX
-
523-94304 SPACER, SWITCH BOX SCREWSPACER, SWITCH BOX SCREW
-
611-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINALNUT, (#10-32) Brass, SWITCH BOX TERMINAL
-
784-41592A4 HARNESS ASSEMBLY, PRIMARYHARNESS ASSEMBLY, PRIMARY
-
884-813715A1 LEAD ASSEMBLY, HIGH TENSIONLEAD ASSEMBLY, HIGH TENSION
-
985-63709A1 BOOT/TERMINAL KIT, SPARK PLUGBOOT/TERMINAL KIT, SPARK PLUG
-
1033-97182Q SPARK PLUGSPARK PLUG
-
1110-82155025 SCREW, IGNITION PLATESCREW, IGNITION PLATE
-
12339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
1311-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINALNUT, (#10-32) Brass, IGNITION COIL TERMINAL
-
1443542 COVER, IGNITION COILCOVER, IGNITION COIL
-
1510-40007114 SCREW, (M5 x 50), IGNITION COIL COVERSCREW, (M5 x 50), IGNITION COIL COVER
-
1612-89302 WASHER, (.203 x .406 x .040), COIL COVER SCREWWASHER, (.203 x .406 x .040), COIL COVER SCREW
-
178M0058226 RECTIFIERRECTIFIER
-
1810-40056107 SCREW, (M5 x 16), RECTIFIERSCREW, (M5 x 16), RECTIFIER
-
1911-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALNUT, (#10-32) Brass, RECTIFIER TERMINAL
-
2016731T01 MERCURY SWITCH ASSEMBLYMERCURY SWITCH ASSEMBLY
-
2110-40056107 SCREW, (M5 x 16), MERCURY SWITCHSCREW, (M5 x 16), MERCURY SWITCH
-
2286-45915 TERMINAL BLOCKTERMINAL BLOCK
-
2310-48408 SCREW, (#10-16 x .500), TERMINAL BLOCKSCREW, (#10-16 x .500), TERMINAL BLOCK
-
2484-41591A3 HARNESS ASSEMBLY, ENGINEHARNESS ASSEMBLY, ENGINE
-
2588-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
2684-88439A3 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
2684-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
2789-96158T SOLENOID, StarterSOLENOID, Starter
-
2810-40007106 SCREW, (M5 x 13), STARTER SOLENOIDSCREW, (M5 x 13), STARTER SOLENOID
-
2912-4002314 WASHER, STARTER SOLENOID SCREWWASHER, STARTER SOLENOID SCREW
-
3084-88807A6 CABLE ASSEMBLY, (3.50 Inches) Black, SOLENOID SCREWCABLE ASSEMBLY, (3.50 Inches) Black, SOLENOID SCREW
-
3113-26992 LOCKWASHER, (.250) Stainless Steel
STARTER SOLENOID TERMINAL (1/4")LOCKWASHER, (.250) Stainless Steel
STARTER SOLENOID TERMINAL (1/4") -
3211-64015 NUT, (.250-20), STARTER SOLENOID TERMINALNUT, (.250-20), STARTER SOLENOID TERMINAL
-
3311-26419 NUT, (#8-32) Brass, STARTER SOLENOID TERMINALNUT, (#8-32) Brass, STARTER SOLENOID TERMINAL
-
3484-88808A18 WIRE ASSEMBLY, (3.00 Inches), RECTIFIER TO SOLENOID (RED)WIRE ASSEMBLY, (3.00 Inches), RECTIFIER TO SOLENOID (RED)
-
35124174 COVER, IGNITIONCOVER, IGNITION
-
3610-40007114 SCREW, (M5 x 50), IGNITION COVERSCREW, (M5 x 50), IGNITION COVER
-
3712-89302 WASHER, (.203 x .406 x .040), IGNITION COVER SCREWWASHER, (.203 x .406 x .040), IGNITION COVER SCREW
-
38134731 HOLDER, FuseHOLDER, Fuse
