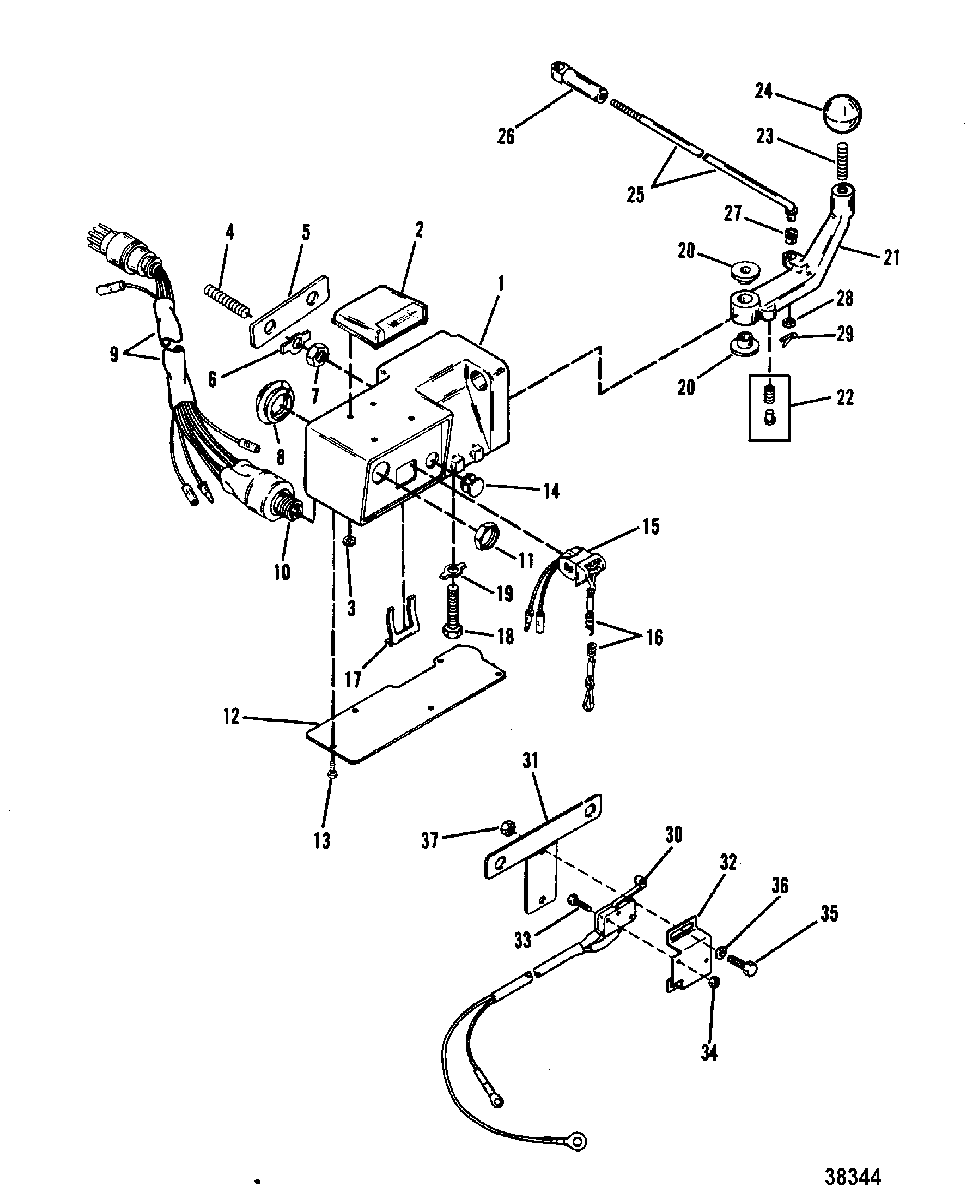

STEERING HANDLE COMPONENTS для Mercury - 70 (3 CYL.) 9483121 THRU 9506480
-
№АртикулНазвание
-
112022A13 BRACKET ASSEMBLY
(MERCURY)BRACKET ASSEMBLY
(MERCURY) -
112022A14 BRACKET ASSEMBLY
(MARINER)BRACKET ASSEMBLY
(MARINER) -
279-12012A1 TACHOMETER ASSEMBLYTACHOMETER ASSEMBLY
-
311-113161 NUTNUT
-
416-12782 STUD, BRACKETSTUD, BRACKET
-
515126 SPACERSPACER
-
614-12080 TAB WASHERTAB WASHER
-
711-4002016 NUTNUT
-
8121051 GROMMETGROMMET
-
984-12649A2 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1087-88107A5 KEY SWITCH (SEE BELOW FOR KEY LISTING)KEY SWITCH (SEE BELOW FOR KEY LISTING)
-
1111-879755 NUT, Special - Chrome Brass, KEY SWITCHNUT, Special - Chrome Brass, KEY SWITCH
-
12120151 COVER, BRACKETCOVER, BRACKET
-
1310-72169 SCREW, (#10-24 x .500), BRACKET COVERSCREW, (#10-24 x .500), BRACKET COVER
-
1419-889730 PLUGPLUG
-
1587-11083A4 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
168M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
178M0032846 RETANER, STOP SWITCHRETANER, STOP SWITCH
-
1810-4000358 SCREW, (M8 x 50), SHIFT LEVERSCREW, (M8 x 50), SHIFT LEVER
-
1914-42981 TAB WASHERTAB WASHER
-
2023-889732 BUSHINGBUSHING
-
2112021A1 LEVER, ShiftLEVER, Shift
-
228M0091388 DETENT ASSEMBLYDETENT ASSEMBLY
-
2316-8M0034452 STUD, (.375-24 x 1.125), SHIFT LEVERSTUD, (.375-24 x 1.125), SHIFT LEVER
-
2498530 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
25495636 SHIFT RODSHIFT ROD
-
2648419T ROD ENDROD END
-
2723-26856 BUSHINGBUSHING
-
2812-35950 WASHER, (.273 x .437 x .031) Stainless Steel, SHIFT RODWASHER, (.273 x .437 x .031) Stainless Steel, SHIFT ROD
-
2918-25191 COTTER PIN, SHIFT RODCOTTER PIN, SHIFT ROD
-
3087-93479A7 SWITCH ASSEMBLY, Neutral StartSWITCH ASSEMBLY, Neutral Start
-
3112609 BRACKET, PRIMARYBRACKET, PRIMARY
-
32126101 BRACKET, SWITCHBRACKET, SWITCH
-
3310-90342 SCREW, (#4-40 x .630), SWITCH TO BRACKETSCREW, (#4-40 x .630), SWITCH TO BRACKET
-
3411-24832 NUT, (#4-40), SWITCH SCREWNUT, (#4-40), SWITCH SCREW
-
3510-57583T SCREW, (#8-32 x .375), BRACKET TO BRACKETSCREW, (#8-32 x .375), BRACKET TO BRACKET
-
3612-20878 WASHER, BRACKET SCREWWASHER, BRACKET SCREW
-
3711-26419 NUT, (#8-32) Brass, BRACKET SCREWNUT, (#8-32) Brass, BRACKET SCREW
-
-894911 KEY, Ignition (1A)KEY, Ignition (1A)
-
-894912 KEY, Ignition (1B)KEY, Ignition (1B)
-
-894913 KEY, Ignition (1C)KEY, Ignition (1C)
-
-894914 KEY, Ignition (1D)KEY, Ignition (1D)
-
-894915 KEY, Ignition (1E)KEY, Ignition (1E)
-
-894916 KEY, Ignition (1F)KEY, Ignition (1F)
-
-894917 KEY, Ignition (2A)KEY, Ignition (2A)
-
-894918 KEY, Ignition (2B)KEY, Ignition (2B)
-
-894919 KEY, Ignition (2C)KEY, Ignition (2C)
-
-8949110 KEY, Ignition (2D)KEY, Ignition (2D)
-
-8949111 KEY, Ignition (2E)KEY, Ignition (2E)
-
-8949112 KEY, Ignition (2F)KEY, Ignition (2F)
