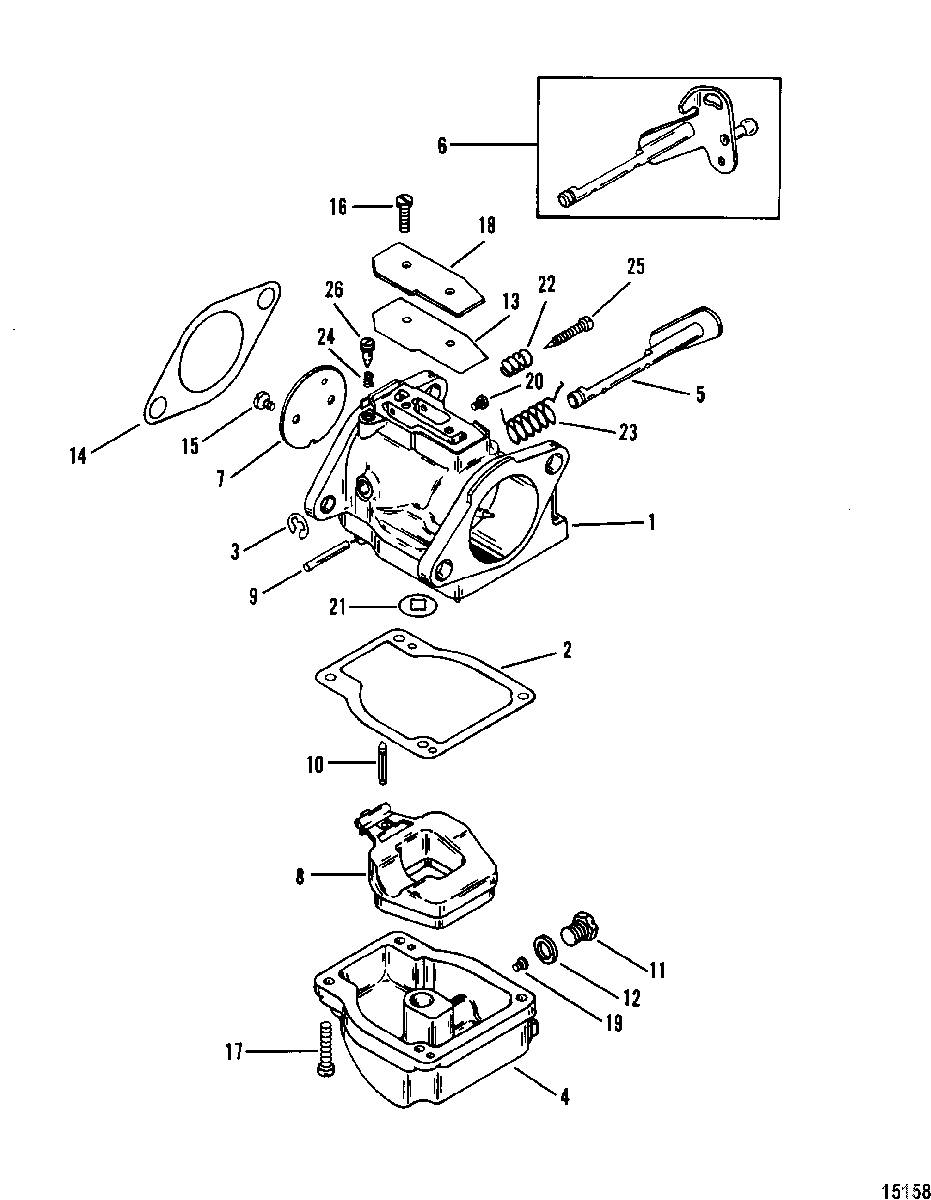

Carburetor для Mercury - 75 (3 CYL.) 9506481 THRU 9589038

№

Артикул

Название
1

3301-9012A27 CARBURETOR ASSEMBLY, Top, 70

CARBURETOR ASSEMBLY, Top, 70

0 ₽
1

3301-9012A28 CARBURETOR ASSEMBLY, Center, 70

CARBURETOR ASSEMBLY, Center, 70

0 ₽
1

3301-9012A29 CARBURETOR ASSEMBLY, Bottom, 70

CARBURETOR ASSEMBLY, Bottom, 70

0 ₽
1

3301-9012A71 CARBURETOR ASSEMBLY, Top, 75

CARBURETOR ASSEMBLY, Top, 75

42 990 ₽
1

3301-9012A72 CARBURETOR ASSEMBLY, Center, 75

CARBURETOR ASSEMBLY, Center, 75

0 ₽
1

3301-9012A73 CARBURETOR ASSEMBLY, Bottom, 75

CARBURETOR ASSEMBLY, Bottom, 75

0 ₽
1

3301-9012A58 CARBURETOR ASSEMBLY, Top, 80, Handle

CARBURETOR ASSEMBLY, Top, 80, Handle

0 ₽
1

3301-9012A59 CARBURETOR ASSEMBLY, Center, 80, Handle

CARBURETOR ASSEMBLY, Center, 80, Handle

0 ₽
1

3301-9012A60 CARBURETOR ASSEMBLY, Bottom, 80, Handle

CARBURETOR ASSEMBLY, Bottom, 80, Handle

0 ₽
1

3301-9012A36 CARBURETOR ASSEMBLY, Top, 90, WME-10

CARBURETOR ASSEMBLY, Top, 90, WME-10

0 ₽
1

3301-9012A37 CARBURETOR ASSEMBLY, Center, 90, WME-10

CARBURETOR ASSEMBLY, Center, 90, WME-10

0 ₽
1

3301-9012A38 CARBURETOR ASSEMBLY, Bottom, 90, WME-10

CARBURETOR ASSEMBLY, Bottom, 90, WME-10

0 ₽
1

3301-9012A64 CARBURETOR ASSEMBLY, Top, 90, WME-15

CARBURETOR ASSEMBLY, Top, 90, WME-15

0 ₽
1

3301-9012A65 CARBURETOR ASSEMBLY, Center, 90, WME-15

CARBURETOR ASSEMBLY, Center, 90, WME-15

0 ₽
1

3301-9012A66 CARBURETOR ASSEMBLY, Bottom, 90, WME-15

CARBURETOR ASSEMBLY, Bottom, 90, WME-15

0 ₽
2

NSS NOT SOLD SEPARATE, Gasket, Fuel Bowl

NOT SOLD SEPARATE, Gasket, Fuel Bowl

0 ₽
3

NSS NOT SOLD SEPARATE, Retaining Ring

NOT SOLD SEPARATE, Retaining Ring

0 ₽
4

1395-811696 BOWL, Fuel, Upper

BOWL, Fuel, Upper

8 960 ₽
4

1395-811693 BOWL, Fuel, Center, Lower

BOWL, Fuel, Center, Lower

5 810 ₽
5

1395-9591 SHAFT, Throttle, Upper, Lower

SHAFT, Throttle, Upper, Lower

0 ₽
6

19270 SHAFT, Throttle, Center

SHAFT, Throttle, Center

0 ₽
7

1395-9593 VALVE, Throttle, 70/75/80, Handle

VALVE, Throttle, 70/75/80, Handle

0 ₽
7

1395-9609 VALVE, Throttle, 90, WME-10

VALVE, Throttle, 90, WME-10

0 ₽
7

1395-811216 VALVE, Throttle, 90, WME-15

VALVE, Throttle, 90, WME-15

0 ₽
8

1395-9594 FLOAT

FLOAT

830 ₽
9

NSS NOT SOLD SEPARATE, Float Shaft

NOT SOLD SEPARATE, Float Shaft

0 ₽
10

1395-879194011 VALVE, Inlet Needle

VALVE, Inlet Needle

1 180 ₽
11

1395-811694 PLUG, Main Jet

PLUG, Main Jet

1 700 ₽
12

NSS NOT SOLD SEPARATE, Gasket, Plug

NOT SOLD SEPARATE, Gasket, Plug

0 ₽
13

NSS NOT SOLD SEPARATE, Gasket, Cover Plate

NOT SOLD SEPARATE, Gasket, Cover Plate

0 ₽
14

27-151724 GASKET, Flange

GASKET, Flange

180 ₽
15

NSS NOT SOLD SEPARATE, Screw, Throttle Valve

NOT SOLD SEPARATE, Screw, Throttle Valve

0 ₽
16

1395-9597 SCREW, Cover Plate

SCREW, Cover Plate

120 ₽
17

1395-808612 SCREW, Fuel Bowl

SCREW, Fuel Bowl

150 ₽
18

1395-9598 COVER PLATE

COVER PLATE

0 ₽
19

1399-4216 JET, (.064), Main Fuel, 80 Handle

JET, (.064), Main Fuel, 80 Handle

590 ₽
19

1395-6029 JET, (.068), Main Fuel, 75

JET, (.068), Main Fuel, 75

590 ₽
19

1395-6207 JET, (.072), Main Fuel, 70

JET, (.072), Main Fuel, 70

710 ₽
19

1395-6030 JET, (.070), Main Fuel, 90 - WME-10

JET, (.070), Main Fuel, 90 - WME-10

590 ₽
19

1399-4215 JET, Main Fuel (.066), Main Fuel, 90 - WME-15

JET, Main Fuel (.066), Main Fuel, 90 - WME-15

710 ₽
20

1395-8423 JET, (.094), Vent, .094

JET, (.094), Vent, .094

590 ₽
21

NSS NOT SOLD SEPARATE, Gasket, Nozzle Well

NOT SOLD SEPARATE, Gasket, Nozzle Well

0 ₽
22

NSS NOT SOLD SEPARATE, Spring, Idle Needle

NOT SOLD SEPARATE, Spring, Idle Needle

0 ₽
23

NSS NOT SOLD SEPARATE, Spring, Throttle Return

NOT SOLD SEPARATE, Spring, Throttle Return

0 ₽
24

NSS NOT SOLD SEPARATE, Spring, Idle Air

NOT SOLD SEPARATE, Spring, Idle Air

0 ₽
25

NSS NOT SOLD SEPARATE, Idle Needle

NOT SOLD SEPARATE, Idle Needle

0 ₽
26

NSS NOT SOLD SEPARATE, Idle Air Needle

NOT SOLD SEPARATE, Idle Air Needle

0 ₽
-

1395-8112231 GASKET KIT

GASKET KIT

890 ₽
-

1395-8236354 REPAIR KIT

REPAIR KIT

4 230 ₽
