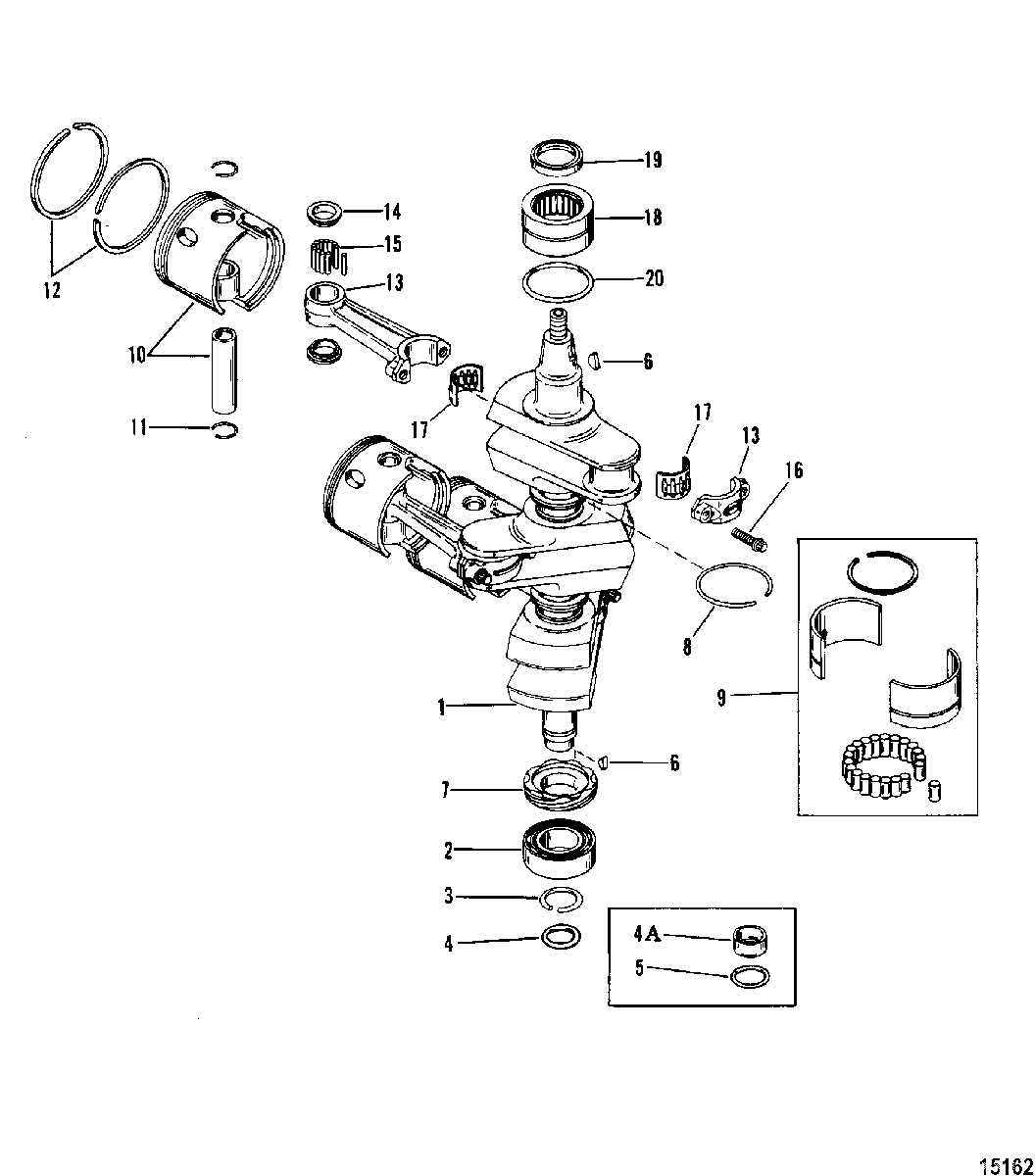

Crankshaft, Pistons/Connecting Rods (#638-8532--1) для Mercury - 75 (3 CYL.) 9506481 THRU 9589038
-
№АртикулНазвание
-
1472-9001T3 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-43011T BEARING, Ball, Crankshaft, LowerBEARING, Ball, Crankshaft, Lower
-
353-93412 RING, Retaining, Ball BearingRING, Retaining, Ball Bearing
-
4A54196A6 CARRIER ASSEMBLY, Seal, Old DesignCARRIER ASSEMBLY, Seal, Old Design
-
565800 PACKING, Carrier, Old DesignPACKING, Carrier, Old Design
-
425-35126 O-RING, (.859 x .139), New DesignO-RING, (.859 x .139), New Design
-
628-91800 KEY, Woodruff, DriveKEY, Woodruff, Drive
-
743-43019A1 GEAR ASSEMBLYGEAR ASSEMBLY
-
839-42079A4 RING ASSEMBLY, SealingRING ASSEMBLY, Sealing
-
942943A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
10777-9009T13 PISTON ASSEMBLY, StandardPISTON ASSEMBLY, Standard
-
10777-9009A6 PISTON ASSEMBLY (.015) OversizePISTON ASSEMBLY (.015) Oversize
-
10777-9009A7 PISTON ASSEMBLY (.030) OversizePISTON ASSEMBLY (.030) Oversize
-
1153-857196 RING, Lock, PistonRING, Lock, Piston
-
1239-96170A12 RING SET, Piston, StandardRING SET, Piston, Standard
-
1239-96170A3 RING SET, Piston (.015) OversizeRING SET, Piston (.015) Oversize
-
1239-96170A4 RING SET, Piston (.030) OversizeRING SET, Piston (.030) Oversize
-
13638-9002A6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1412-8M0032839 WASHER, Needle LocatingWASHER, Needle Locating
-
1529-88258001 NEEDLE, Roller Bearing, Piston EndNEEDLE, Roller Bearing, Piston End
-
1610-94320 SCREW, Connecting RodSCREW, Connecting Rod
-
1731-844338A01 BEARING/CAGE KIT, Crankshaft EndBEARING/CAGE KIT, Crankshaft End
-
1831-43013T3 BEARING ASSEMBLY, Roller, UpperBEARING ASSEMBLY, Roller, Upper
-
1926-43993 SEAL, OilSEAL, Oil
-
2025-823683 O-RINGO-RING
-
-27-43004A99 GASKET SETGASKET SET
