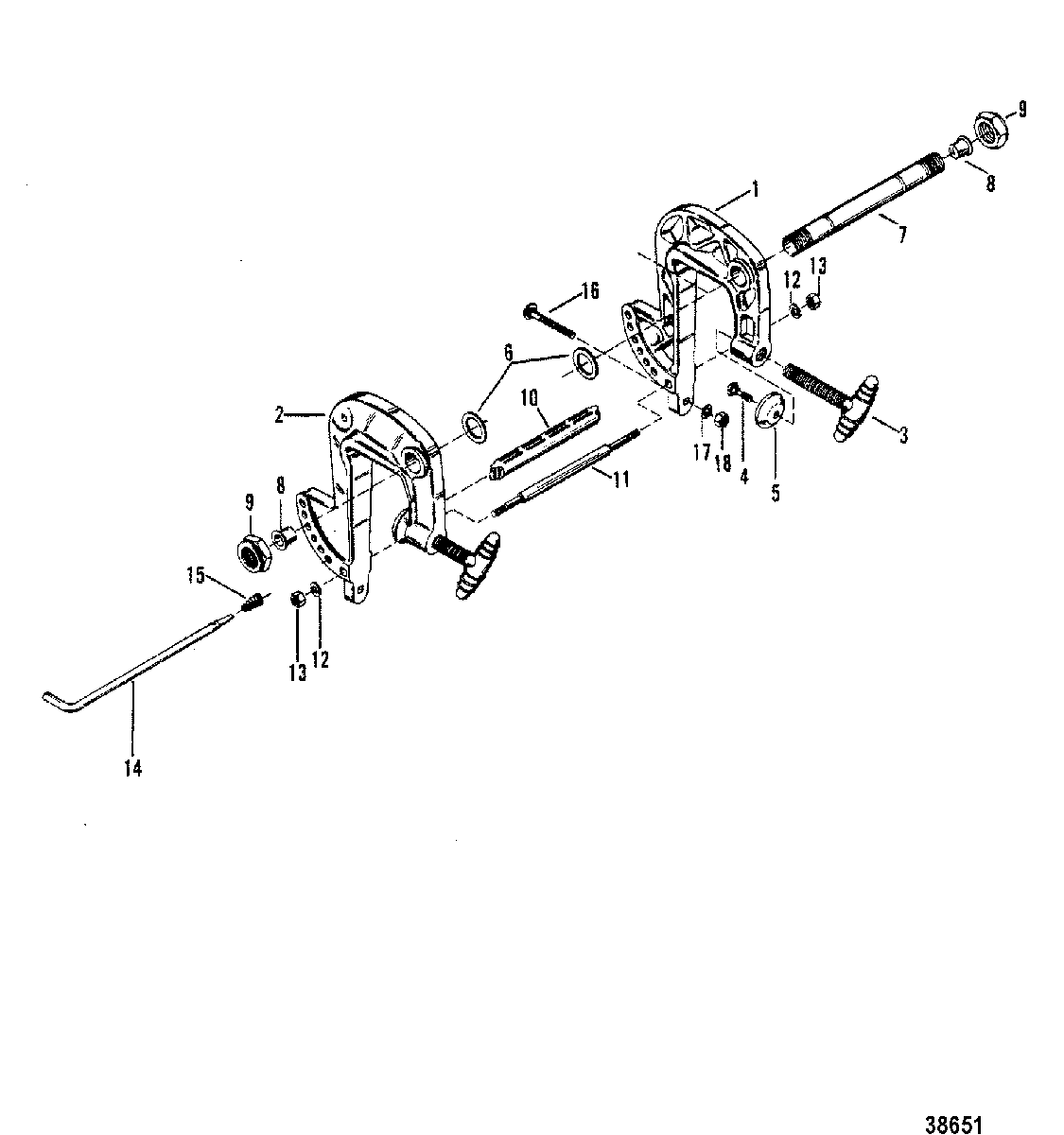

CLAMP BRACKET ASSEMBLY для Mercury - 7.5 5206550 & Up
-
№АртикулНазвание
-
11468-5570A3 CLAMP BRACKET ASSEMBLY (PORT)CLAMP BRACKET ASSEMBLY (PORT)
-
21467-5571A3 CLAMP BRACKET ASSEMBLY (STARBOARD)CLAMP BRACKET ASSEMBLY (STARBOARD)
-
310-77190A3 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
410-768042 SCREW, THUMB SCREWSCREW, THUMB SCREW
-
512-818884 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
612-71421 WASHER, Nylon, TILT TUBE - CLAMP TO SWIVEL BRACKETWASHER, Nylon, TILT TUBE - CLAMP TO SWIVEL BRACKET
-
796962 TILT TUBE, CLAMP TO SWIVEL BRACKETTILT TUBE, CLAMP TO SWIVEL BRACKET
-
819-39333 PLUG, TILT TUBEPLUG, TILT TUBE
-
911-93164 NUT, (.875), TILT TUBE FASTENINGNUT, (.875), TILT TUBE FASTENING
-
1071420 HANDLE, CARRYINGHANDLE, CARRYING
-
1116-71417 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1213-26992 LOCKWASHER, (.250) Stainless Steel, CLAMP BRACKET STUDLOCKWASHER, (.250) Stainless Steel, CLAMP BRACKET STUD
-
1311-29598 NUT, (.250-28) Stainless Steel, CLAMP BRACKET STUDNUT, (.250-28) Stainless Steel, CLAMP BRACKET STUD
-
1417-71418A2 PIN ASSEMBLY, Tilt LockPIN ASSEMBLY, Tilt Lock
-
1524-62143 SPRING, TILT LOCK PINSPRING, TILT LOCK PIN
-
1610-67982 BOLT, CLAMP BRACKET TO BOATBOLT, CLAMP BRACKET TO BOAT
-
1712-67983 WASHER, CLAMP BRACKET SCREWWASHER, CLAMP BRACKET SCREW
-
1811-8267098 NUT, (.250-20), CLAMP BRACKET SCREWNUT, (.250-20), CLAMP BRACKET SCREW
