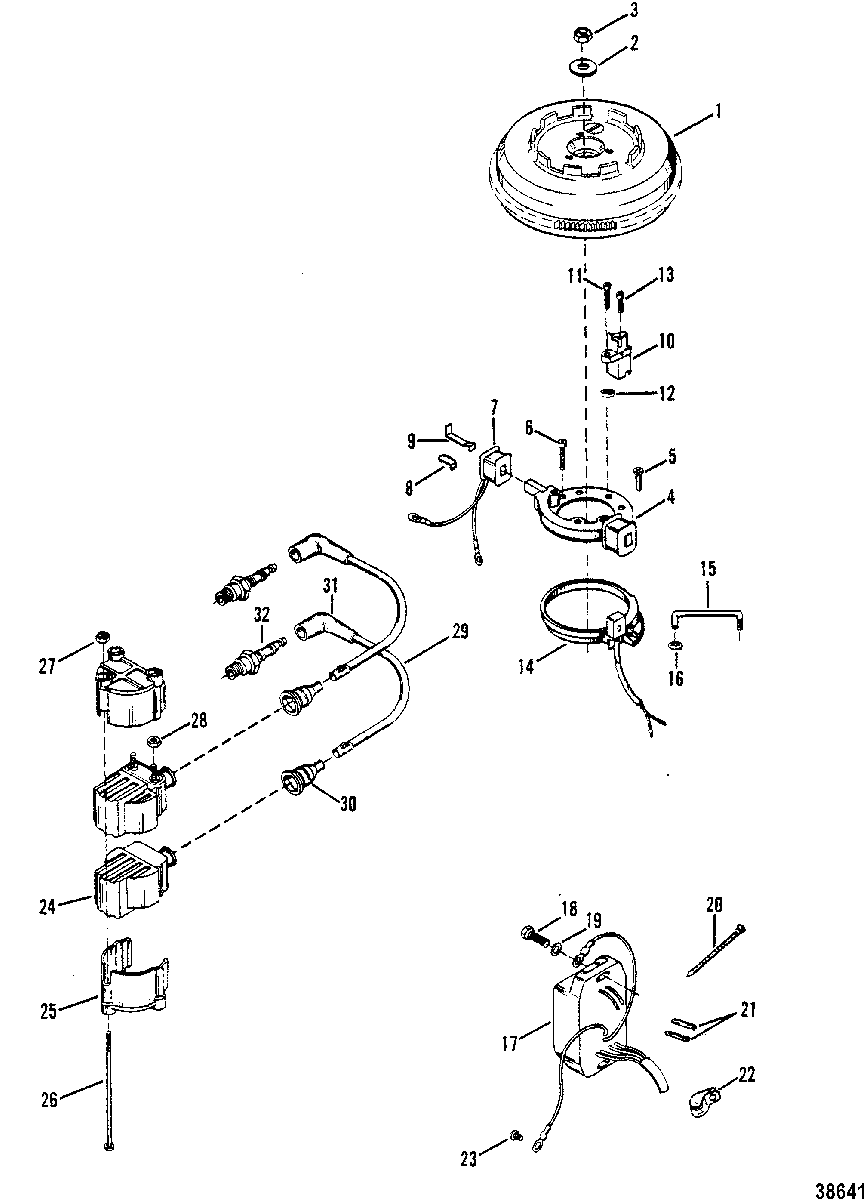

FLYWHEEL AND IGNITION COMPONENTS для Mercury - 7.5 5206550 & Up
-
№АртикулНазвание
-
1251-6105A9 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
212-36245 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
311-20696 NUT, FLYWHEELNUT, FLYWHEEL
-
4339-5209A9 STATOR ASSEMBLYSTATOR ASSEMBLY
-
510-35400 SCREW, STATOR TO END CAP (3/8")SCREW, STATOR TO END CAP (3/8")
-
610-66707 SCREW, STATOR TO END CAP(7/8")SCREW, STATOR TO END CAP(7/8")
-
7339-6119A1 COIL ASSEMBLY (5-1/2" AND 6-3/8" LEADS)COIL ASSEMBLY (5-1/2" AND 6-3/8" LEADS)
-
7339-6120A1 COIL ASSEMBLY (1-3/4" AND 3-1/2" LEADS)COIL ASSEMBLY (1-3/4" AND 3-1/2" LEADS)
-
854-59538T CLIP, COIL RETAININGCLIP, COIL RETAINING
-
954-85446 CLIP, COIL RETAININGCLIP, COIL RETAINING
-
1086-85365 TERMINAL BLOCK, STATORTERMINAL BLOCK, STATOR
-
1110-38055 SCREW, (.190-32 x .62), TERMINAL BLOCK TO STATORSCREW, (.190-32 x .62), TERMINAL BLOCK TO STATOR
-
1211-46438 NUT, (#10-32), TERMINAL BLOCK SCREWNUT, (#10-32), TERMINAL BLOCK SCREW
-
1310-22654 SCREW, (.190-32 x .38), LEADS TO TERMINAL BLOCKSCREW, (.190-32 x .38), LEADS TO TERMINAL BLOCK
-
14338-7283A3 HOUSING ASSEMBLY, TriggerHOUSING ASSEMBLY, Trigger
-
1542501 LINK, TRIGGER HOUSING TO THROTTLE LEVERLINK, TRIGGER HOUSING TO THROTTLE LEVER
-
1611-65110 NUT, PUSH - LINK TO TRIGGER HOUSINGNUT, PUSH - LINK TO TRIGGER HOUSING
-
17899883229 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
1810-20189 SCREW, (.190-32 x .75), SWITCH BOX ATTACHINGSCREW, (.190-32 x .75), SWITCH BOX ATTACHING
-
1912-56681 WASHER, (.203 x .500 x .032), SWITCH BOX ATTACHING SCREWWASHER, (.203 x .500 x .032), SWITCH BOX ATTACHING SCREW
-
2061990 TIE STRAP, (14.00 Inches)TIE STRAP, (14.00 Inches)
-
215790811 SLEEVE, (10.00 Inches Bulk), SWITCH BOX LEADSSLEEVE, (10.00 Inches Bulk), SWITCH BOX LEADS
-
2254-53883 CLIP, SWITCH BOX LEADSCLIP, SWITCH BOX LEADS
-
2310-45218 SCREW, (#10-32 x .380), GROUND LEAD TO CYLINDER BLOCKSCREW, (#10-32 x .380), GROUND LEAD TO CYLINDER BLOCK
-
24339-5288T2 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
2566355 COVER, IGNITION COILCOVER, IGNITION COIL
-
2610-72074 SCREW, COIL COVER TO REAR BRACKET (4-5/8")SCREW, COIL COVER TO REAR BRACKET (4-5/8")
-
2711-20110 NUT, (#10-32), COIL COVER SCREWNUT, (#10-32), COIL COVER SCREW
-
2811-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINALNUT, (#10-32) Brass, IGNITION COIL TERMINAL
-
2984-813715A1 LEAD ASSEMBLY, HIGH TENSIONLEAD ASSEMBLY, HIGH TENSION
-
30332-2854T01 BOOT, IGNITION COILBOOT, IGNITION COIL
-
3185-63709A1 BOOT/TERMINAL KIT, SPARK PLUGBOOT/TERMINAL KIT, SPARK PLUG
-
3233-8M0114742 SPARK PLUG (NGK #B9HS-10)SPARK PLUG (NGK #B9HS-10)
-
3233-896329828 SPARK PLUG
Belgium and CanadaSPARK PLUG
Belgium and Canada
