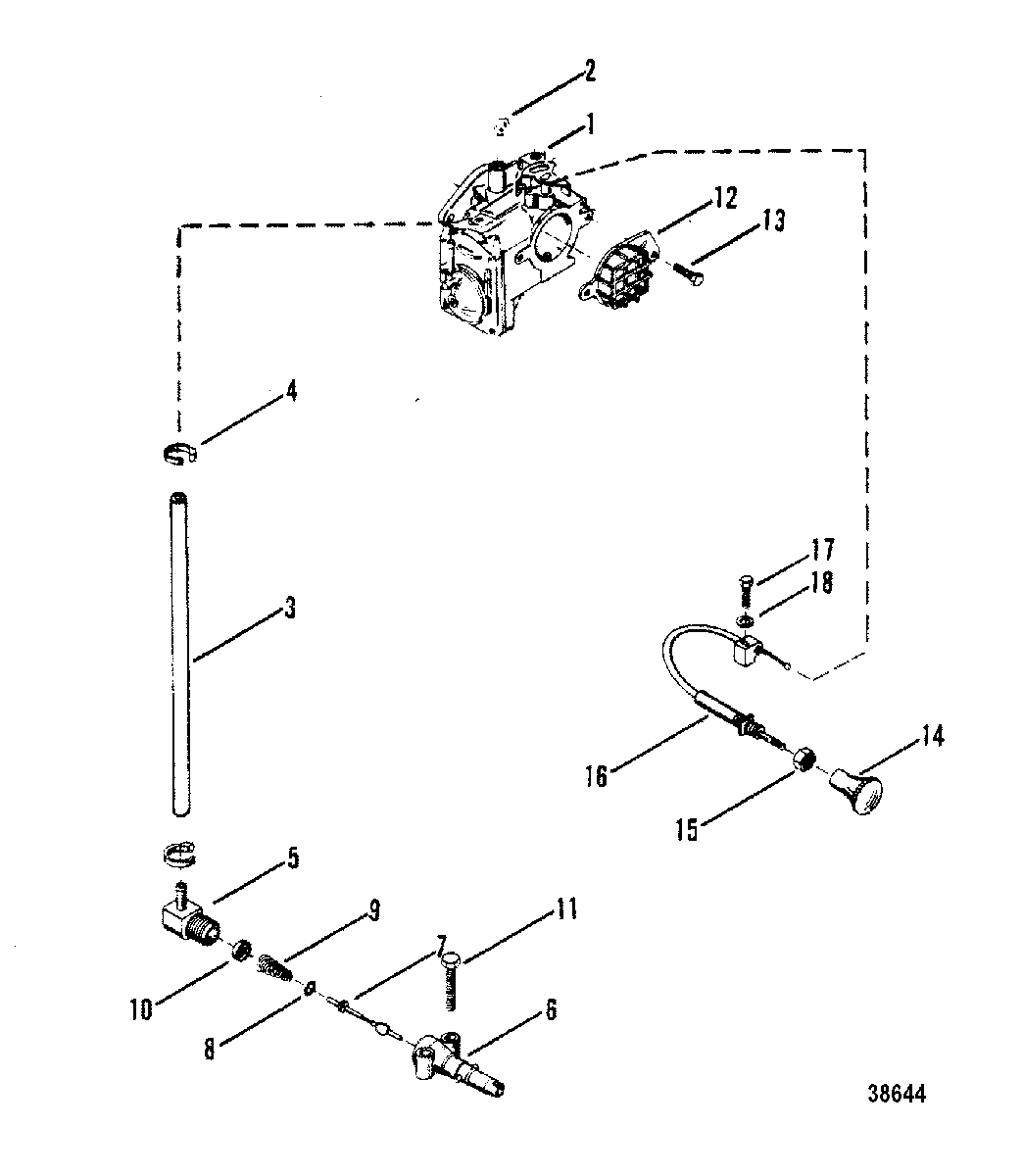

CARBURETOR AND CHOKE ASSEMBLY для Mercury - 7.5 7125388 & Up
-
№АртикулНазвание
-
11364-8783A14 CARBURETOR ASSEMBLY
(TILLOTSON) MERC 7.5CARBURETOR ASSEMBLY
(TILLOTSON) MERC 7.5 -
11364-8783A14 CARBURETOR ASSEMBLY
(WALBRO) MERC 7.5CARBURETOR ASSEMBLY
(WALBRO) MERC 7.5 -
11364-8782A13 CARBURETOR ASSEMBLY
(TILLOTSON) MERC 9.8CARBURETOR ASSEMBLY
(TILLOTSON) MERC 9.8 -
11364-8782A13 CARBURETOR ASSEMBLY
(WALBRO) MERC 9.8CARBURETOR ASSEMBLY
(WALBRO) MERC 9.8 -
211-24652 NUT, (.250-28), CARBURETOR ATTACHINGNUT, (.250-28), CARBURETOR ATTACHING
-
332-8M0108355 LINE, (57.00 Inches Bulk), ADAPTOR TO CARBURETORLINE, (57.00 Inches Bulk), ADAPTOR TO CARBURETOR
-
454-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
522-63981 FITTING, FUEL LINE TO ADAPTORFITTING, FUEL LINE TO ADAPTOR
-
622833 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
723069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
825-16524 O-RING, ADAPTOR STEMO-RING, ADAPTOR STEM
-
924-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
1030188 WASHER, ADAPTORWASHER, ADAPTOR
-
1110-37923 SCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWLSCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWL
-
1265552 SCREEN, CARBURETOR
(Use where applicable)SCREEN, CARBURETOR
(Use where applicable) -
1310-69022 SCREW, (#10-32 x .500) Stainless Steel, SCREEN TO CARBURETOR
(Use where applicable)SCREW, (#10-32 x .500) Stainless Steel, SCREEN TO CARBURETOR
(Use where applicable) -
1486381 KNOB, CHOKEKNOB, CHOKE
-
1511-73710 NUT, CHOKE CABLE TO BOTTOM COWLNUT, CHOKE CABLE TO BOTTOM COWL
-
1672465 CABLE, ChokeCABLE, Choke
-
1710-45862 SCREW, (#10-32 x .875), CHOKE CABLE TO CARBURETORSCREW, (#10-32 x .875), CHOKE CABLE TO CARBURETOR
-
1812-34680 WASHER, CHOKE CABLE SCREWWASHER, CHOKE CABLE SCREW
-
-27-89014A80 GASKET SETGASKET SET
