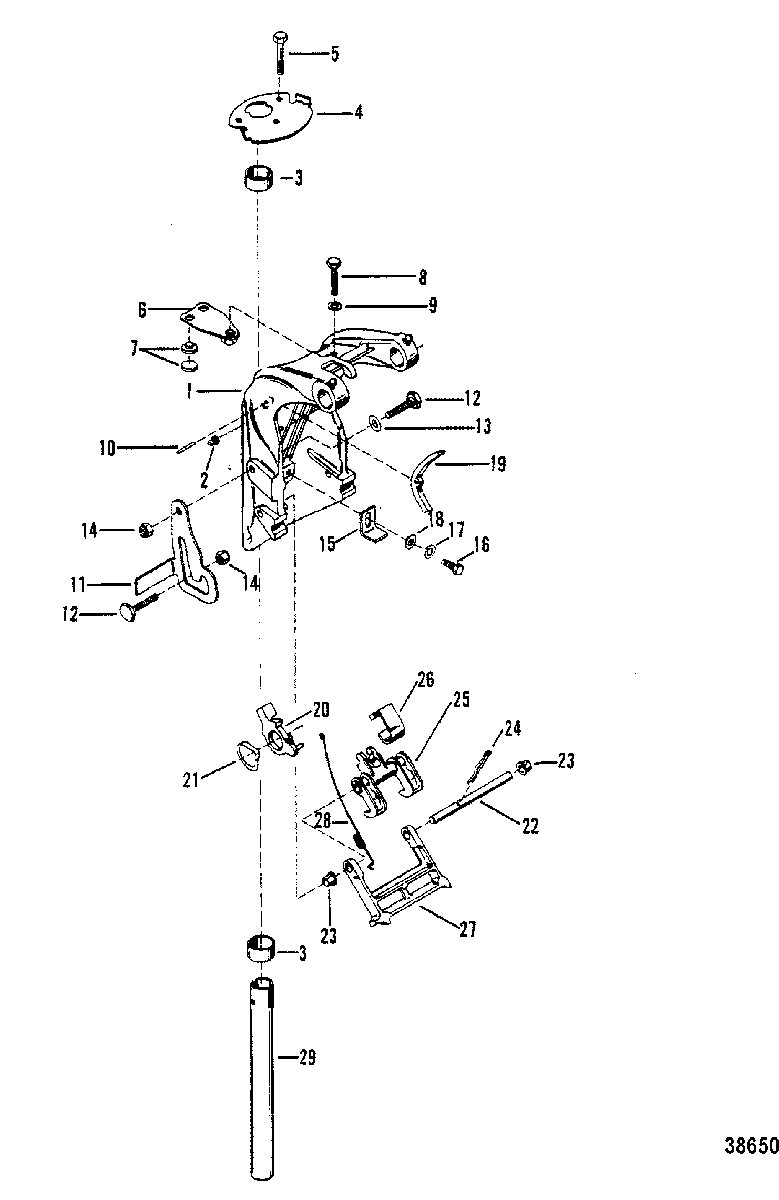

SWIVEL BRACKET ASSEMBLY для Mercury - 7.5 7125388 & Up
-
№АртикулНазвание
-
11471-7324A1 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
222-74036 FITTING, Grease, SWIVEL BRACKETFITTING, Grease, SWIVEL BRACKET
-
323-64028 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
477334 PLATE, CO-PILOTPLATE, CO-PILOT
-
510-78038 SCREW, (.250-20 x 1.75), CO-PILOT PLATE, TO SADDLESCREW, (.250-20 x 1.75), CO-PILOT PLATE, TO SADDLE
-
672845A1 PLATE ASSEMBLY, CLAMP - CO-PILOTPLATE ASSEMBLY, CLAMP - CO-PILOT
-
720203 DISC, FRICTIONDISC, FRICTION
-
810-36154 SCREW, (.250-28 x 1.380), CLAMP PLATE ADJUSTINGSCREW, (.250-28 x 1.380), CLAMP PLATE ADJUSTING
-
912-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, CLAMP PLATE ADJUSTING SCREWWASHER, (.2656 x .625 x .0625) Stainless Steel, CLAMP PLATE ADJUSTING SCREW
-
1017-25319 PIN, (.125 x 0.75 Inches), SPRING GUIDEPIN, (.125 x 0.75 Inches), SPRING GUIDE
-
1187984A1 LEVER ASSEMBLYLEVER ASSEMBLY
-
11879841 LEVER ASSEMBLY
180 CC SAILPOWERLEVER ASSEMBLY
180 CC SAILPOWER -
1210-41433 SCREW, (.250-28 x 1.00), TILT STOP LEVERSCREW, (.250-28 x 1.00), TILT STOP LEVER
-
1313-31030 WAVE WASHER, LEVER ANCHOR SCREWWAVE WASHER, LEVER ANCHOR SCREW
-
1411-8267089 NUT, (.250-28), TILT STOP LEVER SCREWNUT, (.250-28), TILT STOP LEVER SCREW
-
1572794 STOP, REVERSE LOCKSTOP, REVERSE LOCK
-
1610-71056 SCREW, (.250-28 x .560), REVERSE STOP TO SWIVEL BRACKETSCREW, (.250-28 x .560), REVERSE STOP TO SWIVEL BRACKET
-
1713-26992 LOCKWASHER, (.250) Stainless Steel, REVERSE STOP SCREWLOCKWASHER, (.250) Stainless Steel, REVERSE STOP SCREW
-
1812-71055 WASHER, REVERSE STOP SCREWWASHER, REVERSE STOP SCREW
-
1963554 GUIDE, SPRINGGUIDE, SPRING
-
2079744 LEVER, CONTROL - TROLL BRACKETLEVER, CONTROL - TROLL BRACKET
-
2113-63631 WAVE WASHER, TROLL BRACKET LEVERWAVE WASHER, TROLL BRACKET LEVER
-
2271419 ROD, REVERSE LOCK TO SWITCH BRACKETROD, REVERSE LOCK TO SWITCH BRACKET
-
2323-26841 BUSHING, NYLON - REVERSE LOCK LEVER RODBUSHING, NYLON - REVERSE LOCK LEVER ROD
-
2418-45882 COTTER PIN, REVERSE LOCK LEVER TO RODCOTTER PIN, REVERSE LOCK LEVER TO ROD
-
2563628T LEVER, REVERSE LOCKLEVER, REVERSE LOCK
-
2661007 RETAINER, ROD - REVERSE LOCKRETAINER, ROD - REVERSE LOCK
-
2763559T BRACKET, TROLLBRACKET, TROLL
-
2824-63630 SPRING, EXTENSION - TROLL BRACKETSPRING, EXTENSION - TROLL BRACKET
-
2966559 TUBE, SWIVEL BRACKET TO SADDLETUBE, SWIVEL BRACKET TO SADDLE
