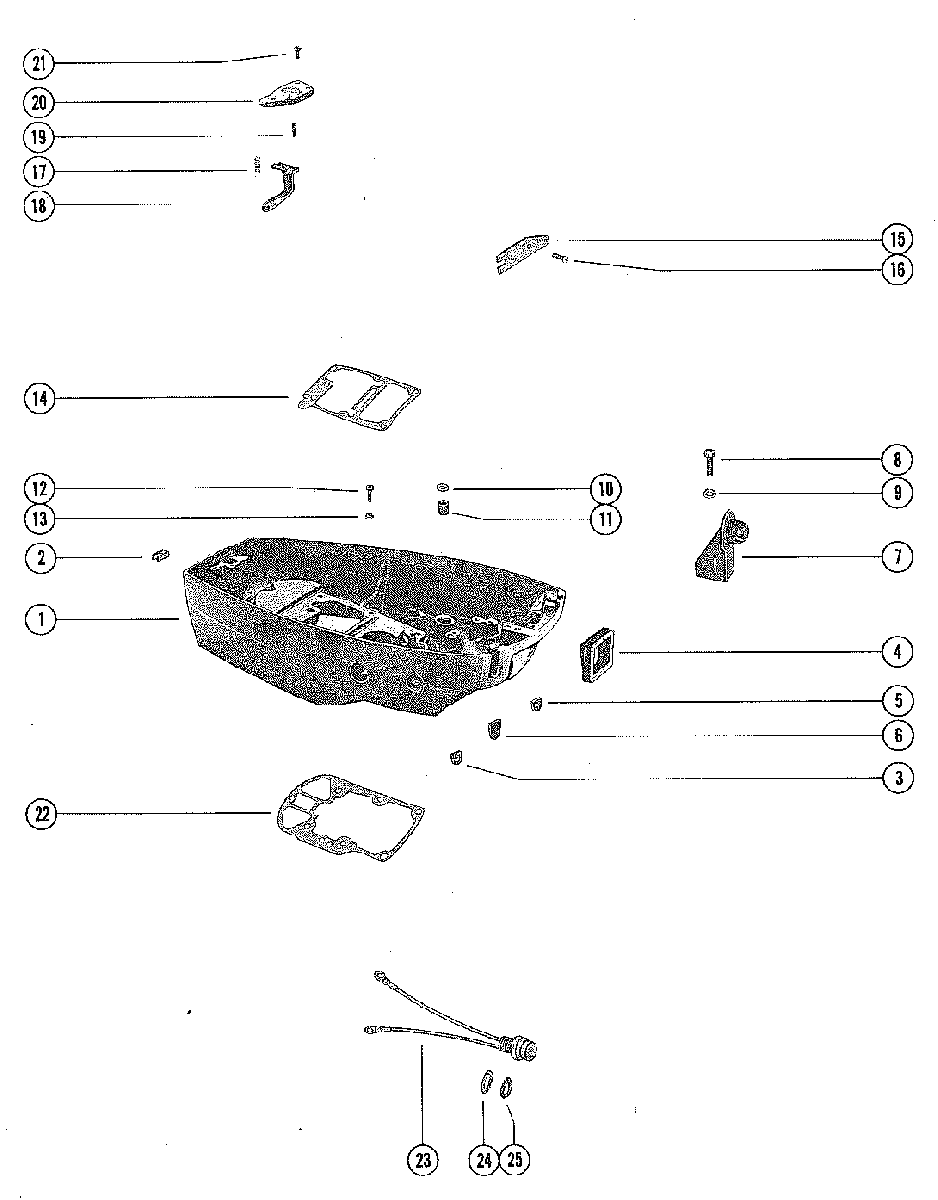

BOTTOM COWL AND STOP SWITCH ASSEMBLY для Mercury - 75 4851693 THRU 5226934
-
№АртикулНазвание
-
12159-6681A2 COWL, BOTTOMCOWL, BOTTOM
-
279300 MOLDING, BOTTOM COWLMOLDING, BOTTOM COWL
-
374360 PLUG, BOTTOM COWL (MANUAL)PLUG, BOTTOM COWL (MANUAL)
-
439778 GROMMET, CHOKE SHAFT - BOTTOM COWLGROMMET, CHOKE SHAFT - BOTTOM COWL
-
566353 COVER, ACCESS HOLECOVER, ACCESS HOLE
-
665479 COVER, ACCESS HOLECOVER, ACCESS HOLE
-
739474 ANCHOR, LATCH - BOTTOM COWLANCHOR, LATCH - BOTTOM COWL
-
810-22483 SCREW, LATCH ANCHOR TO BOTTOM COWL (1 1/8")SCREW, LATCH ANCHOR TO BOTTOM COWL (1 1/8")
-
913-26992 LOCKWASHER, LATCH ANCHOR SCREWLOCKWASHER, LATCH ANCHOR SCREW
-
1023-13127 WASHER, NYLON - WATER OUTLET TUBEWASHER, NYLON - WATER OUTLET TUBE
-
1126-36556 SEAL, RUBBER - WATER OUTLET TUBESEAL, RUBBER - WATER OUTLET TUBE
-
1210-38111 SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING
(3/4")SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING
(3/4") -
1313-26992 LOCKWASHER, BOTTOM COWL SCREWLOCKWASHER, BOTTOM COWL SCREW
-
1427-89937 GASKET, POWERHEAD TO ADAPTOR PLATEGASKET, POWERHEAD TO ADAPTOR PLATE
-
1574354 RETAINER, WIRING HARNESS (BOTTOM COWL)
ELECTRICRETAINER, WIRING HARNESS (BOTTOM COWL)
ELECTRIC -
1610-48408 SCREW, RETAINER TO BOTTOM COWL
ELECTRICSCREW, RETAINER TO BOTTOM COWL
ELECTRIC -
1724-78810 SPRING, CABLE TO ARM LATCHSPRING, CABLE TO ARM LATCH
-
1878809 LATCH, ARM - BOTTOM COWLLATCH, ARM - BOTTOM COWL
-
1929-714221 PIN, ARM LOCATINGPIN, ARM LOCATING
-
2078808 LATCH, BODY - BOTTOM COWLLATCH, BODY - BOTTOM COWL
-
2110-32228 SCREW, LATCH TO BOTTOM COWLSCREW, LATCH TO BOTTOM COWL
-
2227-39050 GASKET, BOTTOM COWL TO DRIVE SHAFT HOUSINGGASKET, BOTTOM COWL TO DRIVE SHAFT HOUSING
-
2387-69508A31 STOP SWITCH ASSEMBLY
MANUALSTOP SWITCH ASSEMBLY
MANUAL -
2413-69845 LOCKWASHER, STOP SWITCH
MANUALLOCKWASHER, STOP SWITCH
MANUAL -
2511-69844 NUT, STOP SWITCH
MANUALNUT, STOP SWITCH
MANUAL
