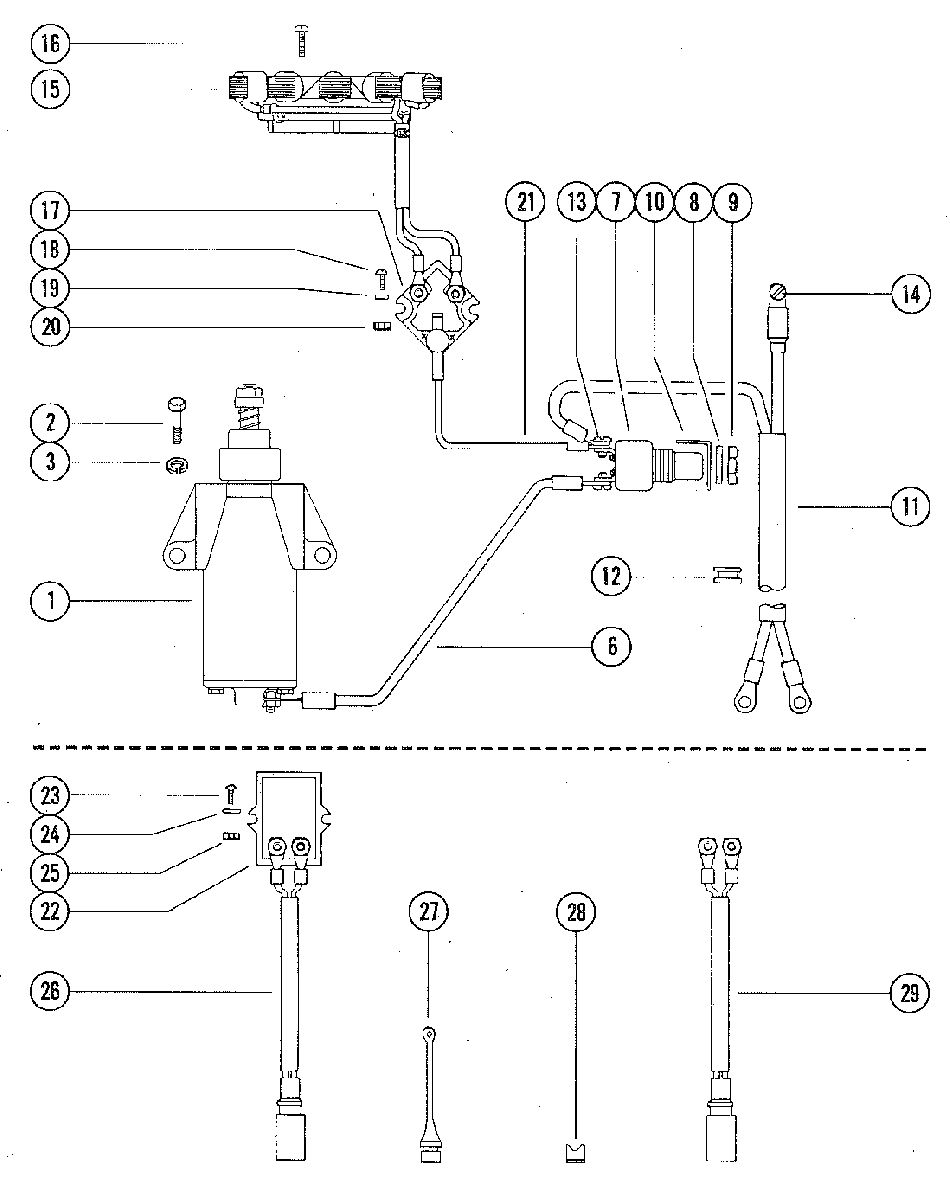

ELECTRIC COMPONENTS для Mercury - 75 4851693 THRU 5226934
-
№АртикулНазвание
-
150-78011 STARTER MOTORSTARTER MOTOR
-
210-55511 SCREW, STARTER MOTOR TO CYLINDER BLOCK
(1 1/4")SCREW, STARTER MOTOR TO CYLINDER BLOCK
(1 1/4") -
313-26993 LOCKWASHER, STARTER MOTOR SCREWLOCKWASHER, STARTER MOTOR SCREW
-
684-76741A1 WIRE ASSEMBLY, STARTING SWITCH (YELLOW)WIRE ASSEMBLY, STARTING SWITCH (YELLOW)
-
787-73883 SWITCH, STARTINGSWITCH, STARTING
-
812-30516 WASHER, STARTING SWITCHWASHER, STARTING SWITCH
-
911-74394 NUT, STARTING SWITCHNUT, STARTING SWITCH
-
1074515 PROTECTOR, STARTING SWITCHPROTECTOR, STARTING SWITCH
-
1184-72535A4 CABLE, BATTERYCABLE, BATTERY
-
1225-74444 GROMMET, BATTERY CABLEGROMMET, BATTERY CABLE
-
1310-45742 SCREW, BATTERY CABLE ATTACHING (5/16")SCREW, BATTERY CABLE ATTACHING (5/16")
-
1410-98253 SCREW, BATTERY CABLE ATTACHING (7/8")SCREW, BATTERY CABLE ATTACHING (7/8")
-
1574367A15 LIGHTING STATOR ASSEMBLYLIGHTING STATOR ASSEMBLY
-
1610-73696 SCREW, LIGHTING STATOR ATTACHING (1 5/8")SCREW, LIGHTING STATOR ATTACHING (1 5/8")
-
178M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
1810-48408 SCREW, RECTIFIER TO MANIFOLD COVER (1/2")SCREW, RECTIFIER TO MANIFOLD COVER (1/2")
-
1923-62769 SPACER, RECTIFIER SCREWSPACER, RECTIFIER SCREW
-
2011-45076 NUT, RECTIFIER TERMINALNUT, RECTIFIER TERMINAL
-
2184-61393A6 WIRE ASSEMBLY, RECTIFIER TO STARTING SWITCH
(RED)WIRE ASSEMBLY, RECTIFIER TO STARTING SWITCH
(RED) -
2295845T VOLTAGE REGUALTOR
BELGIUMVOLTAGE REGUALTOR
BELGIUM -
2310-74841 SCREW, VOLTAGE REGULATOR TO MANIFOLD COVER
BELGIUM: (1")SCREW, VOLTAGE REGULATOR TO MANIFOLD COVER
BELGIUM: (1") -
2423-62769 SPACER, VOLTAGE REFULATOR SCREW
BELGIUMSPACER, VOLTAGE REFULATOR SCREW
BELGIUM -
2511-45076 NUT, VOLTAGE REFULATOR TERMINAL
BELGIUMNUT, VOLTAGE REFULATOR TERMINAL
BELGIUM -
2684-74725A1 HARNESS ASSEMBLY, VOLTAGE REGULATOR
BELGIUM: (BLACK/RED)HARNESS ASSEMBLY, VOLTAGE REGULATOR
BELGIUM: (BLACK/RED) -
2771663 PLUG, HARNESS -BELGIUMPLUG, HARNESS -BELGIUM
-
2874361 PLUG, HARNESS TO BOTTOM COWL -BELGIUMPLUG, HARNESS TO BOTTOM COWL -BELGIUM
-
2984-65017A4 HARNESS ASSEMBLY, LIGHTING (EXTERNAL) -BELGIUMHARNESS ASSEMBLY, LIGHTING (EXTERNAL) -BELGIUM
-
1574367A15 LIGHTING STATOR ASSEMBLY -BELGIUMLIGHTING STATOR ASSEMBLY -BELGIUM
