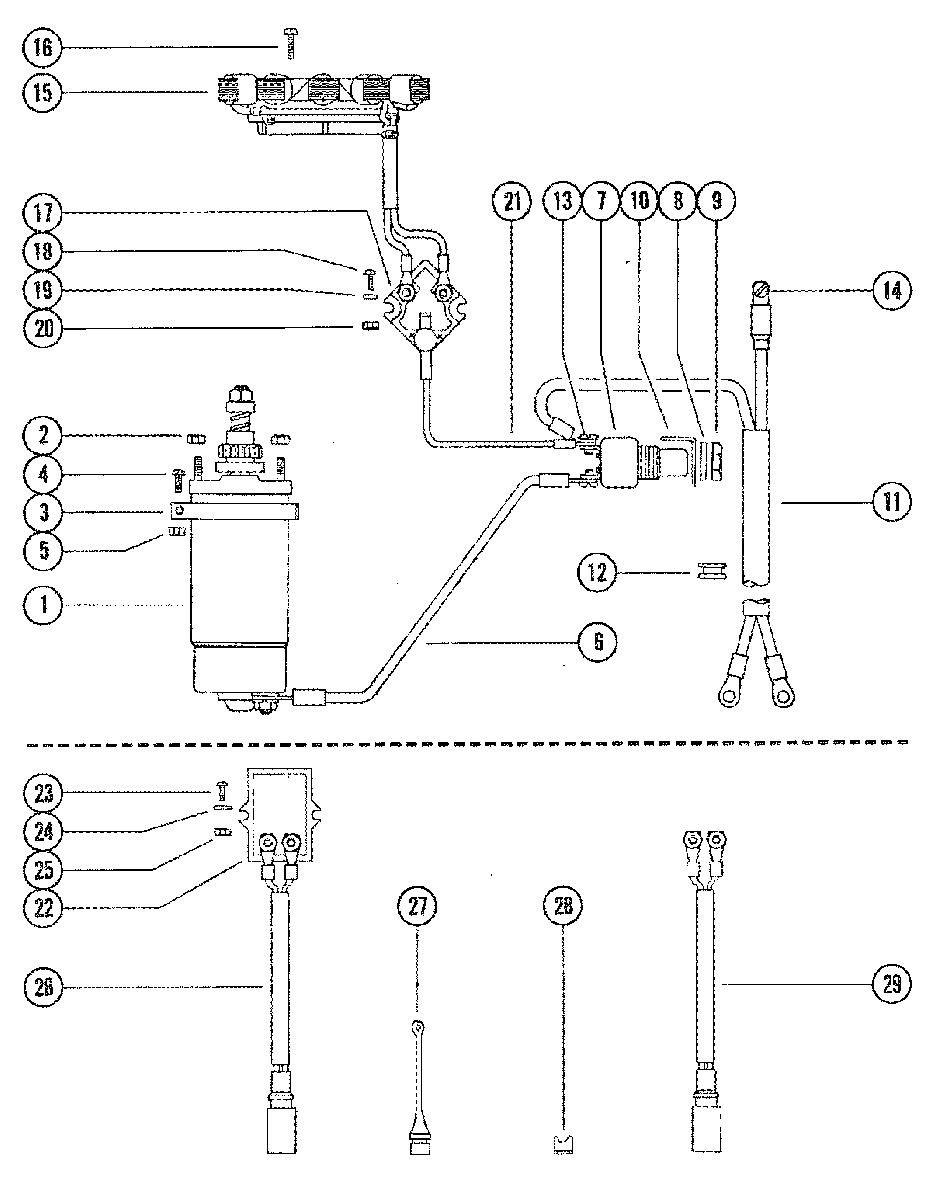

ELECTRIC COMPONENTS для Mercury - 75 7028598 THRU 7111897
-
№АртикулНазвание
-
150-73531 STARTER MOTORSTARTER MOTOR
-
211-8267089 NUT, STARTER MOTOR STUDNUT, STARTER MOTOR STUD
-
354-47993 CLAMP, STARTER MOTOR ATTACHINGCLAMP, STARTER MOTOR ATTACHING
-
410-46378 SCREW, STARTER MOTOR CLAMP (1")SCREW, STARTER MOTOR CLAMP (1")
-
511-20088 NUT, CLAMP SCREWNUT, CLAMP SCREW
-
684-76741A1 WIRE ASSEMBLY, STARTING SWITCH (YELLOW)
UNITED STATES 3801458 THRU 4691221
AUSTRALIA 8015315 THRU 8045674
BELGIUM 9043194 THRU 9150904
CANADA 7028598 THRU 7095422WIRE ASSEMBLY, STARTING SWITCH (YELLOW)
UNITED STATES 3801458 THRU 4691221
AUSTRALIA 8015315 THRU 8045674
BELGIUM 9043194 THRU 9150904
CANADA 7028598 THRU 7095422 -
684-76741A1 WIRE ASSEMBLY, STARTING SWITCH (YELLOW)
UNITED STATES 4691222 AND UP
AUSTRALIA 8045675 AND UP
BELGIUM 9150905 AND UP
CANADA 7095423 AND UPWIRE ASSEMBLY, STARTING SWITCH (YELLOW)
UNITED STATES 4691222 AND UP
AUSTRALIA 8045675 AND UP
BELGIUM 9150905 AND UP
CANADA 7095423 AND UP -
787-73883 SWITCH, STARTINGSWITCH, STARTING
-
812-30516 WASHER, STARTING SWITCHWASHER, STARTING SWITCH
-
911-74394 NUT, STARTING SWITCHNUT, STARTING SWITCH
-
1074515 PROTECTOR, STARTING SWITCHPROTECTOR, STARTING SWITCH
-
1184-72535A4 CABLE, BATTERYCABLE, BATTERY
-
1225-74444 GROMMET, BATTERY CABLEGROMMET, BATTERY CABLE
-
1310-45742 SCREW, BATTERY CABLE ATTACHING (5/16")SCREW, BATTERY CABLE ATTACHING (5/16")
-
1410-98253 SCREW, BATTERY CABLE ATTACHING (7/8")SCREW, BATTERY CABLE ATTACHING (7/8")
-
1574367A15 LIGHTING STATOR ASSEMBLY
UNITED STATES 3801458 THRU 4691221
AUSTRALIA 8015315 THRU 8045674
BELGIUM 9043194 THRU 9150904
CANADA 7028598 THRU 7095422LIGHTING STATOR ASSEMBLY
UNITED STATES 3801458 THRU 4691221
AUSTRALIA 8015315 THRU 8045674
BELGIUM 9043194 THRU 9150904
CANADA 7028598 THRU 7095422 -
1574367A15 LIGHTING STATOR ASSEMBLY
UNITED STATES 4691222 AND UP
AUSTRALIA 8045675 AND UP
BELGIUM 9150905 AND UP
CANADA 7095423 AND UPLIGHTING STATOR ASSEMBLY
UNITED STATES 4691222 AND UP
AUSTRALIA 8045675 AND UP
BELGIUM 9150905 AND UP
CANADA 7095423 AND UP -
1610-73696 SCREW, LIGHTING STATOR ATTACHING (1 5/8")SCREW, LIGHTING STATOR ATTACHING (1 5/8")
-
178M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
1810-48408 SCREW, RECTIFIER TO MANIFOLD COVER (1/2")SCREW, RECTIFIER TO MANIFOLD COVER (1/2")
-
1923-62769 SPACER, RECTIFIER SCREWSPACER, RECTIFIER SCREW
-
2011-45076 NUT, RECTIFIER TERMINALNUT, RECTIFIER TERMINAL
-
2184-61393A6 WIRE ASSEMBLY, RECTIFIER TO STARTING SWITCH (RED)WIRE ASSEMBLY, RECTIFIER TO STARTING SWITCH (RED)
-
2295845T VOLTAGE REGULATOR
BELGIUM 9115165 AND UPVOLTAGE REGULATOR
BELGIUM 9115165 AND UP -
2310-74841 SCREW, VOLTAGE REGULATOR TO MANIFOLD COVER (1")
BELGIUM 9115165 AND UPSCREW, VOLTAGE REGULATOR TO MANIFOLD COVER (1")
BELGIUM 9115165 AND UP -
2423-62769 SPACER, VOLTAGE REGULATOR SCREW
BELGIUM 9115165 AND UPSPACER, VOLTAGE REGULATOR SCREW
BELGIUM 9115165 AND UP -
2511-45076 NUT, VOLTAGE REGULATOR TERMINAL
BELGIUM 9115165 AND UPNUT, VOLTAGE REGULATOR TERMINAL
BELGIUM 9115165 AND UP -
2684-74725A1 HARNESS ASSEMBLY, VOLTAGE REGULATOR (BLACK/RED)
BELGIUM 9115165 AND UPHARNESS ASSEMBLY, VOLTAGE REGULATOR (BLACK/RED)
BELGIUM 9115165 AND UP -
2771663 PLUG, HARNESS
BELGIUM 9115165 AND UPPLUG, HARNESS
BELGIUM 9115165 AND UP -
2874361 PLUG, HARNESS TO BOTTOM COWL
BELGIUM 9115165 AND UPPLUG, HARNESS TO BOTTOM COWL
BELGIUM 9115165 AND UP -
2984-65017A2 HARNESS ASSEMBLY, LIGHTING (EXTERNAL)
BELGIUM 9115165 AND UPHARNESS ASSEMBLY, LIGHTING (EXTERNAL)
BELGIUM 9115165 AND UP -
1574367A15 LIGHTING STATOR ASSEMBLYLIGHTING STATOR ASSEMBLY
