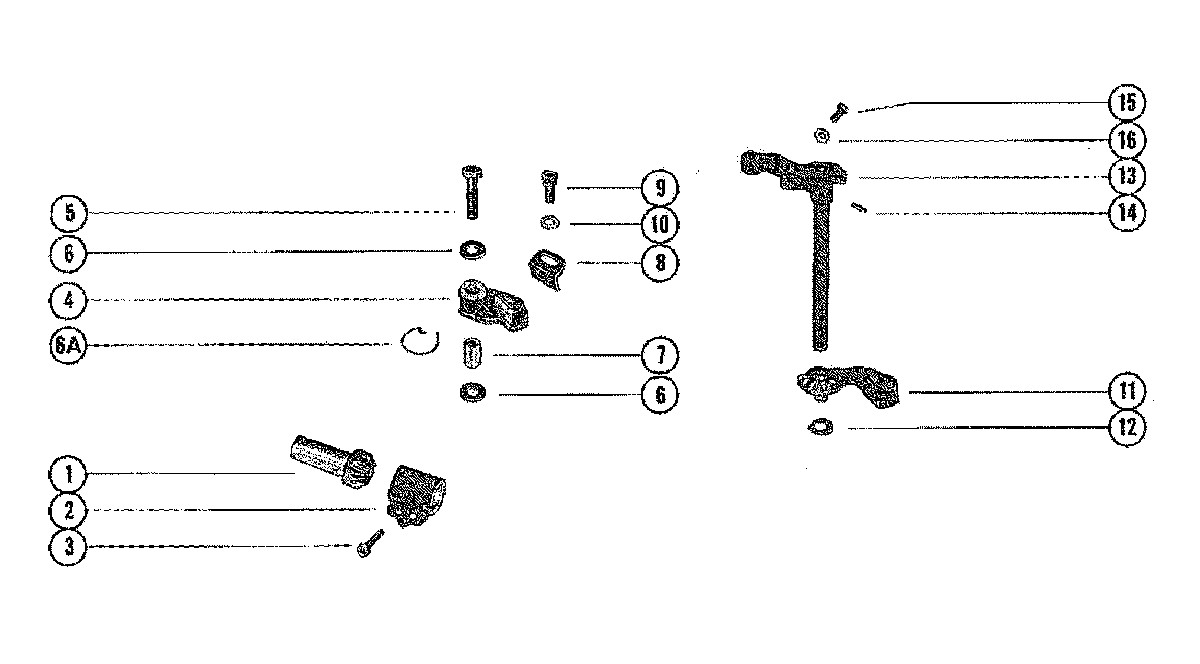

THROTTLE CONTROL LINKAGE для Mercury - 75 7028598 THRU 7111897
-
№АртикулНазвание
-
143-60856 GEAR, HORIZONTAL - THROTTLE CONTROL SOCKETGEAR, HORIZONTAL - THROTTLE CONTROL SOCKET
-
260885T HOUSING, THROTTLE CONTROLHOUSING, THROTTLE CONTROL
-
310-69069 SCREW, THROTTLE CONTROL HOUSING TO BOTTOM COWL (3/4")SCREW, THROTTLE CONTROL HOUSING TO BOTTOM COWL (3/4")
-
463308A1 FOLLOWER ASSEMBLY, NEUTRAL SPEED LIMITERFOLLOWER ASSEMBLY, NEUTRAL SPEED LIMITER
-
510-20653 SCREW, LIMITER FOLLOWER TO BOTTOM COWL (1 1/8")SCREW, LIMITER FOLLOWER TO BOTTOM COWL (1 1/8")
-
612-29245 WASHER, SPEED LIMITER FOLLOWER SCREWWASHER, SPEED LIMITER FOLLOWER SCREW
-
6A24-39042 SPRING, NEUTRAL SPEED LIMITER FOLLOWERSPRING, NEUTRAL SPEED LIMITER FOLLOWER
-
723-63320 BUSHING, SPEED LIMITER FOLLOWER SCREWBUSHING, SPEED LIMITER FOLLOWER SCREW
-
836017 STOP, NEUTRAL SPEED LIMITERSTOP, NEUTRAL SPEED LIMITER
-
910-28710 SCREW, NEUTRAL SPEED LIMITER STOP TO FOLLOWER (5/8")SCREW, NEUTRAL SPEED LIMITER STOP TO FOLLOWER (5/8")
-
1012-24676 WASHER, NEUTRAL SPEED LIMITER STOP SCREWWASHER, NEUTRAL SPEED LIMITER STOP SCREW
-
1143-60858 GEAR, THROTTLE CONTROLGEAR, THROTTLE CONTROL
-
1215-64653A1 SHIM ASSEMBLY, GEAR AND SHAFT (LOWER)SHIM ASSEMBLY, GEAR AND SHAFT (LOWER)
-
1366374A2 LEVER ASSEMBLY, THROTTLE CONTROLLEVER ASSEMBLY, THROTTLE CONTROL
-
1417-76207 PIN, ROLL - THROTTLE CONTROL LEVER TO CONTROL SHAFTPIN, ROLL - THROTTLE CONTROL LEVER TO CONTROL SHAFT
