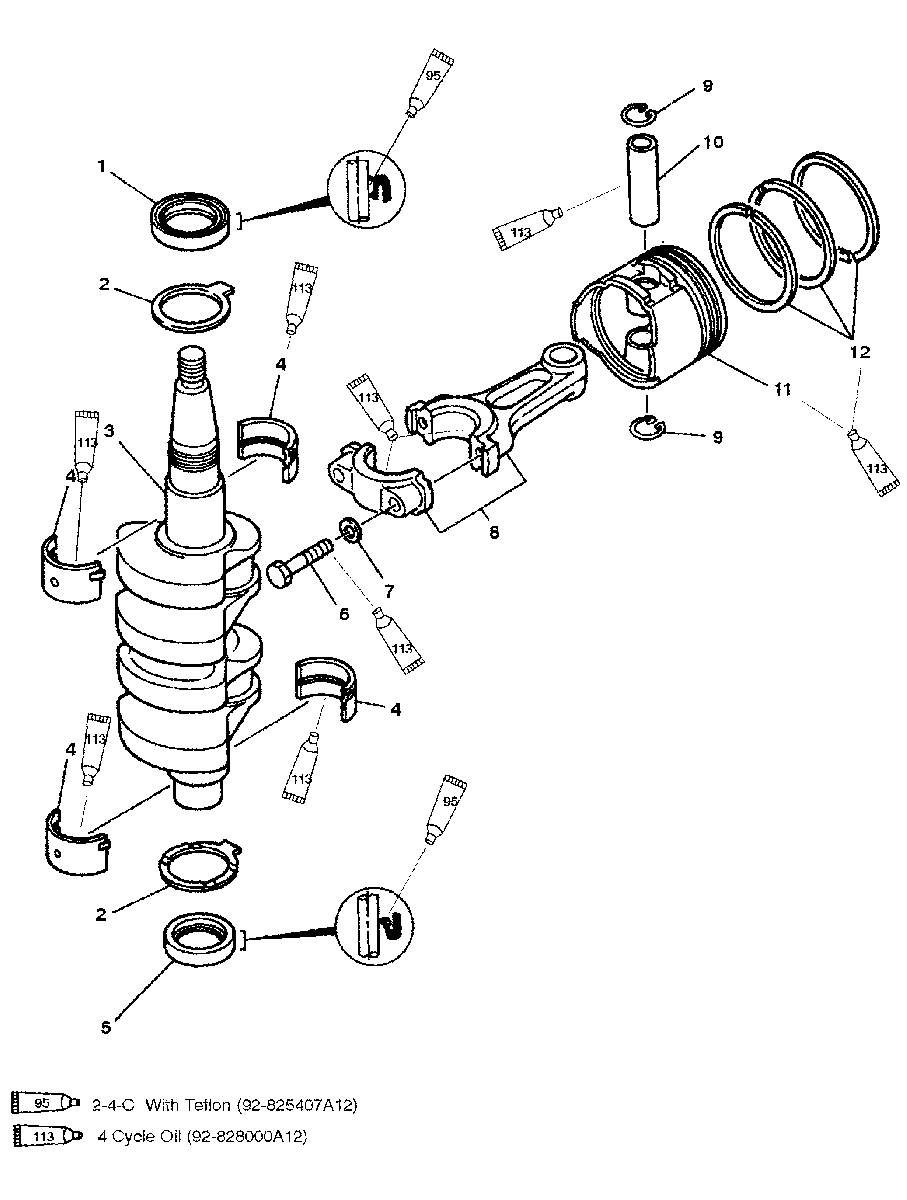

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 8 (BODENSEE) 4-STROKE (International) 0H000058 AND UP
-
№АртикулНазвание
-
126-825704 SEAL-OILSEAL-OIL
-
231-825710 BEARING-THRUSTBEARING-THRUST
-
3400-825703 CRANKSHAFTCRANKSHAFT
-
431-825706T BEARING-MAIN
(BROWN)BEARING-MAIN
(BROWN) -
431-825706T10 BEARING-MAIN
(BLACK)BEARING-MAIN
(BLACK) -
431-825706T20 BEARING-MAIN
(BLUE)BEARING-MAIN
(BLUE) -
526-825705 SEAL-OILSEAL-OIL
-
610-825708 BOLTBOLT
-
712-825709 WASHERWASHER
-
8600-825707A2 CONNECTING RODCONNECTING ROD
-
953-82343M CIRCLIPCIRCLIP
-
1041-825713 PISTON PINPISTON PIN
-
11700-825711T PISTON
(STANDARD) SEE NOTEPISTON
(STANDARD) SEE NOTE -
11700-8257112 PISTON
(.010 OVERSIZE) SEE NOTEPISTON
(.010 OVERSIZE) SEE NOTE -
11700-825711T1 PISTON
(.020 OVERSIZE) SEE NOTEPISTON
(.020 OVERSIZE) SEE NOTE -
1239-825712T1 RING-PISTON
(STANDARD)RING-PISTON
(STANDARD) -
1239-8257123 RING-PISTON
(.010 OVERSIZE)RING-PISTON
(.010 OVERSIZE) -
1239-825712T2 RING-PISTON
(.020 OVERSIZE)RING-PISTON
(.020 OVERSIZE) -
-61-822775T7 POWERHEADPOWERHEAD
-
-27-825847A95 GASKET SETGASKET SET
