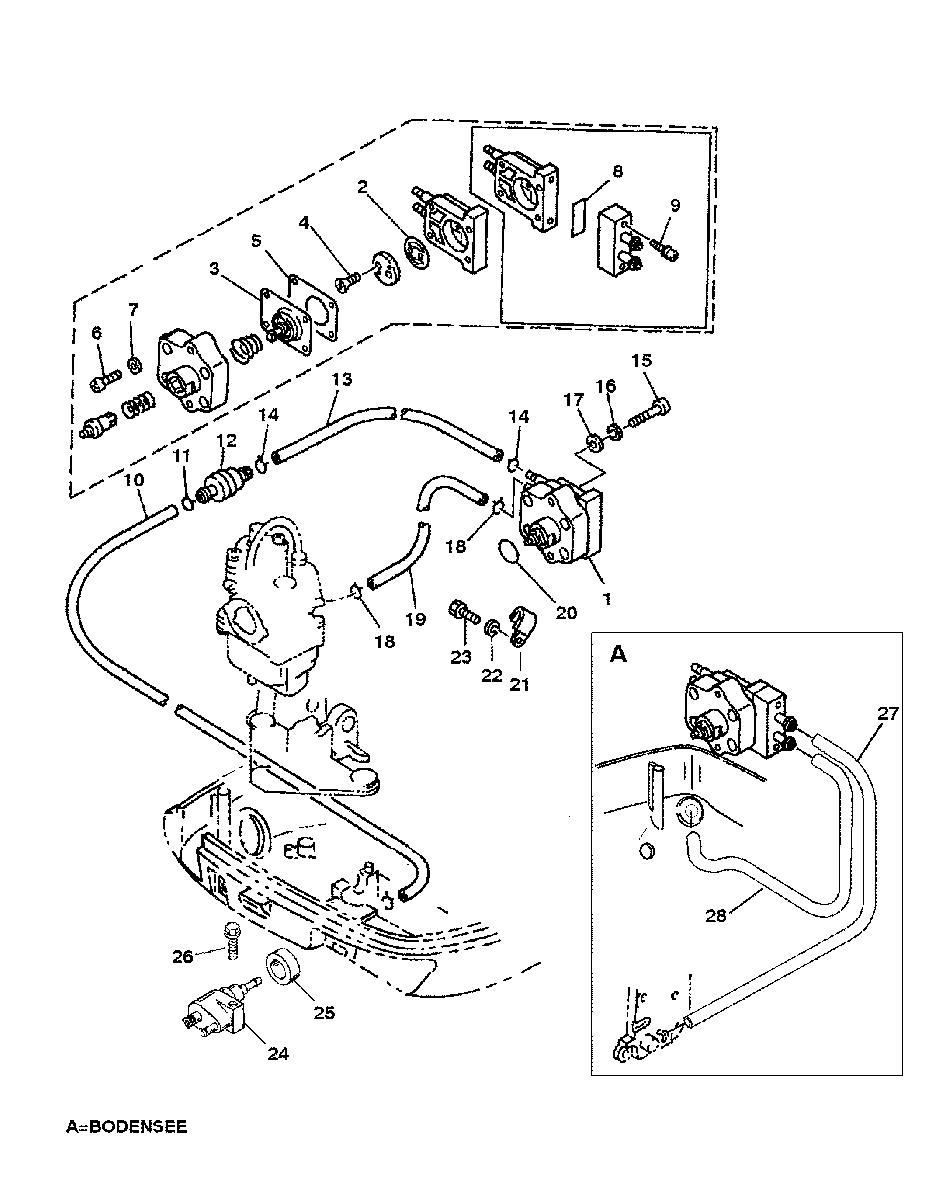

FUEL PUMP для Mercury - 8 (BODENSEE) 4-STROKE (International) 0H000058 AND UP
-
№АртикулНазвание
-
1825470T FUEL PUMPFUEL PUMP
-
1825470T FUEL PUMP
(BODENSEE)FUEL PUMP
(BODENSEE) -
2827441M CHECK VALVECHECK VALVE
-
3827442M DIAPHRAGMDIAPHRAGM
-
410-827443M SCREWSCREW
-
5809129M DIAPHRAGMDIAPHRAGM
-
610-83509M SCREWSCREW
-
712-82847M WASHERWASHER
-
8809130M SEAL
BODENSEESEAL
BODENSEE -
910-80954M SCREW
BODENSEESCREW
BODENSEE -
1032-9912878 TUBING (21 IN.)TUBING (21 IN.)
-
1154-816311T STA-STRAPSTA-STRAP
-
1235-80365M STRAINERSTRAINER
-
1332-825632 HOSEHOSE
-
1454-82047M CLIPCLIP
-
1510-40019130 SCREW (M6 X 30)SCREW (M6 X 30)
-
1613-400256 LOCKWASHERLOCKWASHER
-
1712-29245 WASHERWASHER
-
1854-82047M CLIPCLIP
-
1932-82012M HOSEHOSE
-
2025-825478 O-RINGO-RING
-
2154-54457 CLIPCLIP
-
2212-29245 WASHERWASHER
-
2310-4000326 SCREW (M6 X 12)SCREW (M6 X 12)
-
2422-15781A5 FUEL CONNECTORFUEL CONNECTOR
-
2525-18202 GROMMET-FUEL CONNECTORGROMMET-FUEL CONNECTOR
-
2610-8M4503518 SCREW (M6 X 20)SCREW (M6 X 20)
-
2732-9912878 TUBING (10 IN.)
BODENSEETUBING (10 IN.)
BODENSEE -
2832-8M0108355 TUBING (10 IN.)
BODENSEETUBING (10 IN.)
BODENSEE
