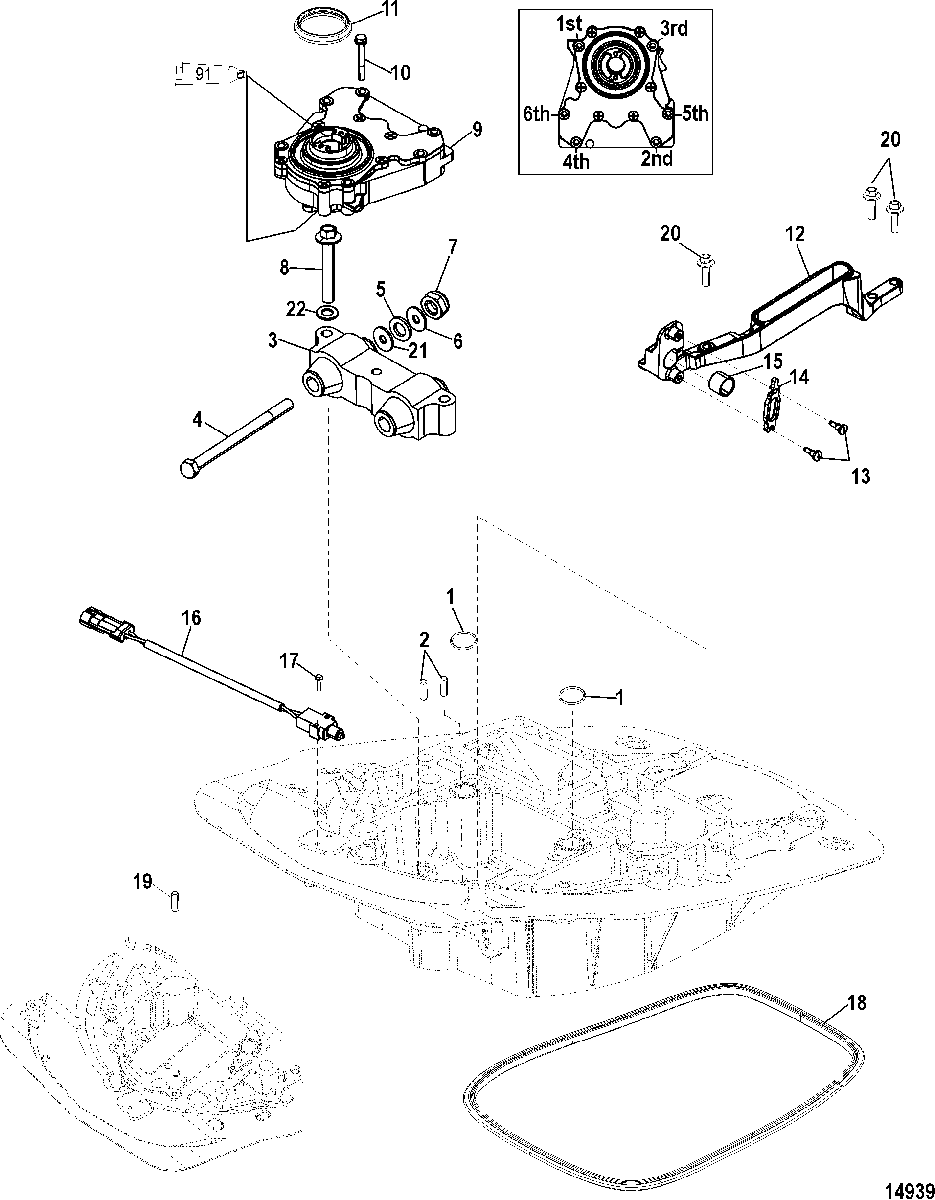

Oil Pump для Mercury - 80 EFI (4-STROKE) 0P459572 THRU 2B094995
-
№АртикулНазвание
-
125-62705001 O-RINGO-RING
-
217-858580001 PIN, DowelPIN, Dowel
-
3881900T03 MOUNT
SN# 1B467200 & BelowMOUNT
SN# 1B467200 & Below -
3881900T03 MOUNT
SN# 1B467201 THRU 1B485180MOUNT
SN# 1B467201 THRU 1B485180 -
3881900T03 MOUNT
SN# 1B485181 & UpMOUNT
SN# 1B485181 & Up -
410-898487 SCREW, (M12 x 175)SCREW, (M12 x 175)
-
512-32834 WASHER, (.9375 x 1.750 x .172)WASHER, (.9375 x 1.750 x .172)
-
612-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
711-896963 NUT, (M12)NUT, (M12)
-
810-8M0036722 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
98M0091787 PUMP ASSEMBLY, Oil
SN# 1B484634 & BelowPUMP ASSEMBLY, Oil
SN# 1B484634 & Below -
98M0091787 PUMP ASSEMBLY, Oil
SN# 1B484635 & UpPUMP ASSEMBLY, Oil
SN# 1B484635 & Up -
1010-82483211 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
1126-8M0036343 SEAL, OilSEAL, Oil
-
12897961T01 BRACKET ASSEMBLY, Shift LinkBRACKET ASSEMBLY, Shift Link
-
1310-42975 DRIVE SCREWDRIVE SCREW
-
1498889 LATCHLATCH
-
15824015 CUP, Barrel Retainer, SmallCUP, Barrel Retainer, Small
-
1687-8M0052939 SWITCHSWITCH
-
1710-88075020 SCREW, (M3 x 20)SCREW, (M3 x 20)
-
188M0043168 SEALSEAL
-
1917-23784 PIN, DowelPIN, Dowel
-
2010-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
2112-8M0001538 WASHER, (.940 x 1.50 x 0.65) Stainless SteelWASHER, (.940 x 1.50 x 0.65) Stainless Steel
-
2212-4002317 WASHERWASHER
-
-27-897534A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-8M8033014 LONG BLOCK ASSEMBLY, 75/80/90/100LONG BLOCK ASSEMBLY, 75/80/90/100
-
-8M8033013 LONG BLOCK ASSEMBLY, 115LONG BLOCK ASSEMBLY, 115
