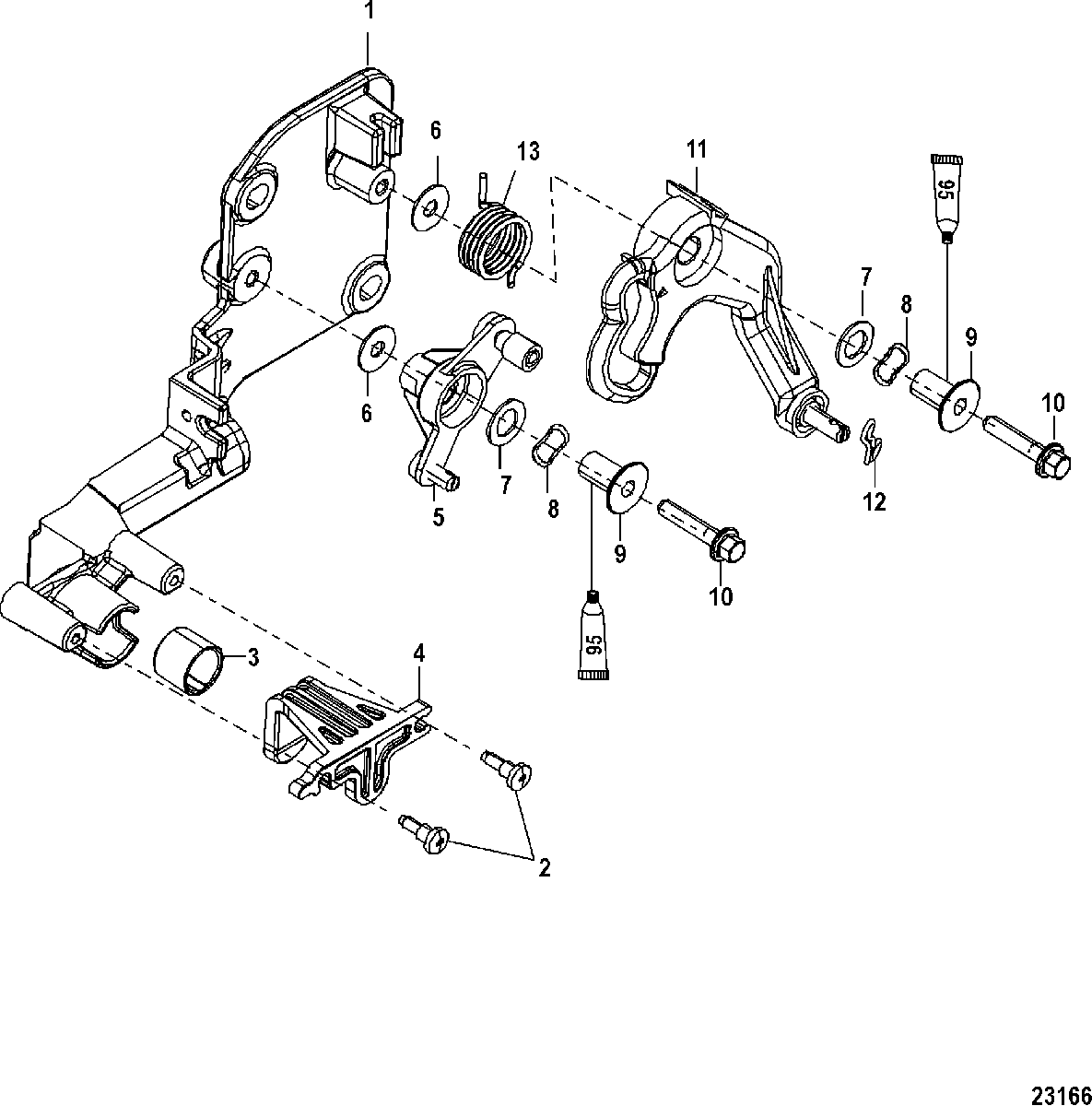

Throttle Bracket Assembly для Mercury - 80 EFI (4-STROKE) 0P459572 THRU 2B094995
-
№АртикулНазвание
-
1897763T03 BRACKET ASSEMBLY, Throttle
SN# 1B418905 & BelowBRACKET ASSEMBLY, Throttle
SN# 1B418905 & Below -
1897763T03 BRACKET ASSEMBLY, Throttle
SN# 0P472784 & BelowBRACKET ASSEMBLY, Throttle
SN# 0P472784 & Below -
1897763T03 BRACKET ASSEMBLY, Throttle
SN# 1B418906 & UpBRACKET ASSEMBLY, Throttle
SN# 1B418906 & Up -
1897763T03 BRACKET ASSEMBLY, Throttle
SN# 0P472785 & UpBRACKET ASSEMBLY, Throttle
SN# 0P472785 & Up -
210-42975 DRIVE SCREWDRIVE SCREW
-
3824015 CUP, Barrel RetainerCUP, Barrel Retainer
-
4898048T LATCH, Control CableLATCH, Control Cable
-
5897765T01 LEVER ASSEMBLY, Throttle FollowerLEVER ASSEMBLY, Throttle Follower
-
612-897936 WASHERWASHER
-
712-897937 WASHERWASHER
-
813-898093 WASHER, WaveWASHER, Wave
-
923-897935 SPACERSPACER
-
1010-8M0103808 SCREW, (M6 x 30 MM) Stainless SteelSCREW, (M6 x 30 MM) Stainless Steel
-
118M0008288 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
128M0001157 PIN, Bow Tie ClipPIN, Bow Tie Clip
-
1324-897535005 SPRING, Throttle Cam ReturnSPRING, Throttle Cam Return
