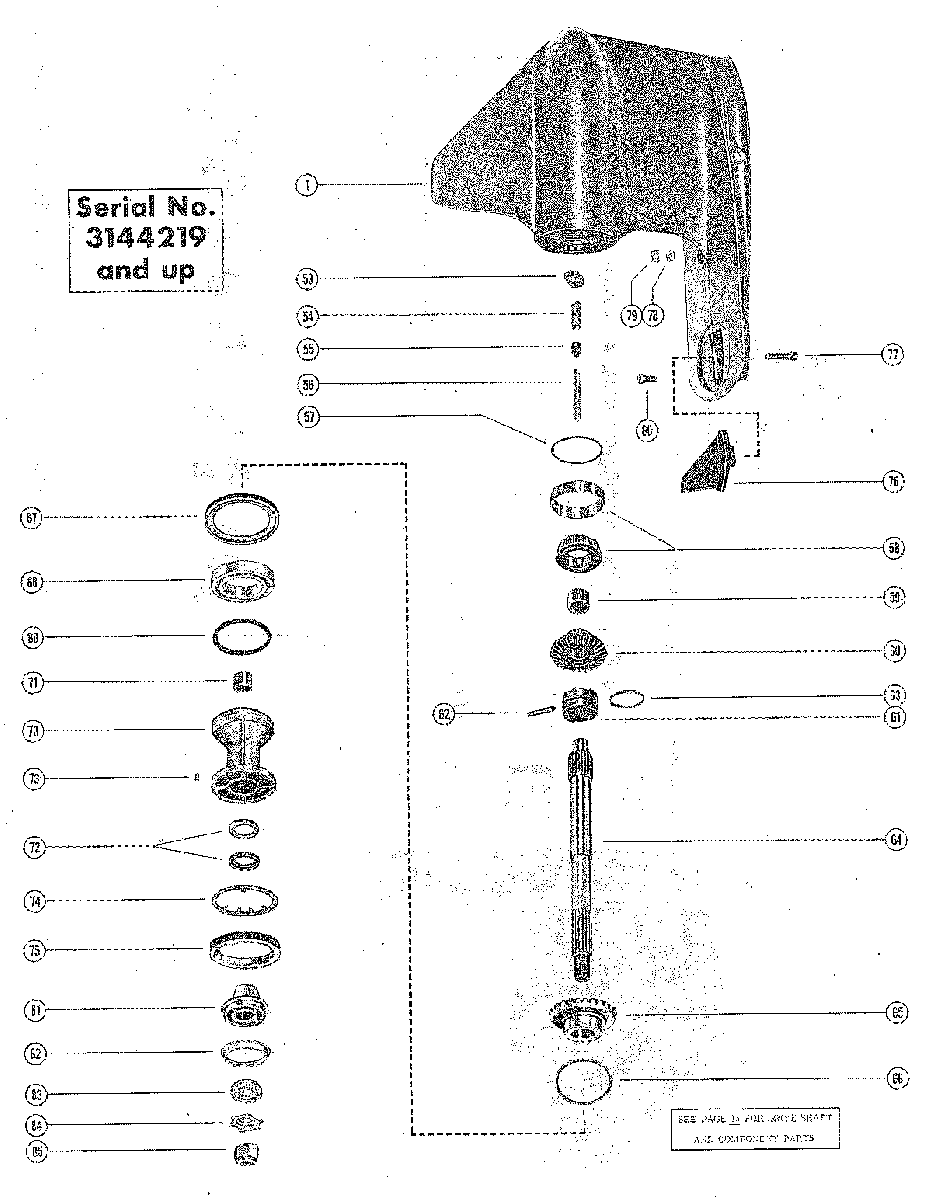

GEAR HOUSING ASSEMBLY, COMPLETE (CONT) для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912
-
№АртикулНазвание
-
-1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
A-1623-4021A4 AND A-1623-4021A5 GEAR HOUSING ASSEMBLIES COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 35 AND 38GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
A-1623-4021A4 AND A-1623-4021A5 GEAR HOUSING ASSEMBLIES COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 35 AND 38 -
-1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
A-1623-4021A4 AND A-1623-4021A5 GEAR HOUSING ASSEMBLIES COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 35 AND 38GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
A-1623-4021A4 AND A-1623-4021A5 GEAR HOUSING ASSEMBLIES COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 35 AND 38 -
11623-6052A4 GEAR HOUSING ASSEMBLY - SEE PAGE 35 FOR BREAKDOWNGEAR HOUSING ASSEMBLY - SEE PAGE 35 FOR BREAKDOWN
-
53760394 CAM, SHIFTCAM, SHIFT
-
5430625 FOLLOWER, CAMFOLLOWER, CAM
-
5530624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5624-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5715-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSINGSHIM, BEARING OUTER RACE TO GEAR HOUSING
-
5831-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5931-30895T BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
6043-56517T3 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
6152-822539T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
6217-8M0100263 PIN, CROSS - RATCHET TO PROPELLAR SHAFTPIN, CROSS - RATCHET TO PROPELLAR SHAFT
-
6324-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6444-93003 SHAFT, PROPELLERSHAFT, PROPELLER
-
6543-56516T REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
6615-29955A1 SHIM, THRUST WASHER TO GEAR HOUSINGSHIM, THRUST WASHER TO GEAR HOUSING
-
6712-71143A1 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSINGWASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
-
6830-31265 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6925-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
7052132T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
7131-30956T BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
7226-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
7328-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7414-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
7552699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7697-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSINGTRIM TAB ASSEMBLY, GEAR HOUSING
-
7710-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
-
7812-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
7911-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
8010-34353 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
-
8165091Q01 THRUST HUB AND WASHER ASSEMBLYTHRUST HUB AND WASHER ASSEMBLY
-
8212-29590 WASHER, CUPPED - THRUST HUBWASHER, CUPPED - THRUST HUB
-
8312-31211Q03 WASHER, SPLINED - PROPELLER NUTWASHER, SPLINED - PROPELLER NUT
-
8414-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8511-52707Q1 NUT, PROPELLERNUT, PROPELLER
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTON AND CONNECTING ROD
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE
- DISTRIBUTOR HOUSING AND ROTOR
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL ASSEMBLY AND STATOR
- FUEL PUMP AND FUEL LINE ASSEMBLY - DUAL FUEL PUMPS
- FUEL PUMP AND FUEL LINE ASSEMBLY - SINGLE FUEL PUMP
- GEAR HOUSING ASSEMBLY, COMPLETE
- GEAR HOUSING ASSEMBLY, COMPLETE
- • GEAR HOUSING ASSEMBLY, COMPLETE (CONT)
- GEAR HOUSING ASSEMBLY, COMPLETE (CONT)
- MISCELLANEOUS PARTS/ACCESSORIES
- STARTER MOTOR AND WIRING HARNESS
- STARTER MOTOR AND WIRING HARNESS
- TOP COWL AND SUPPORT BRACKETS
