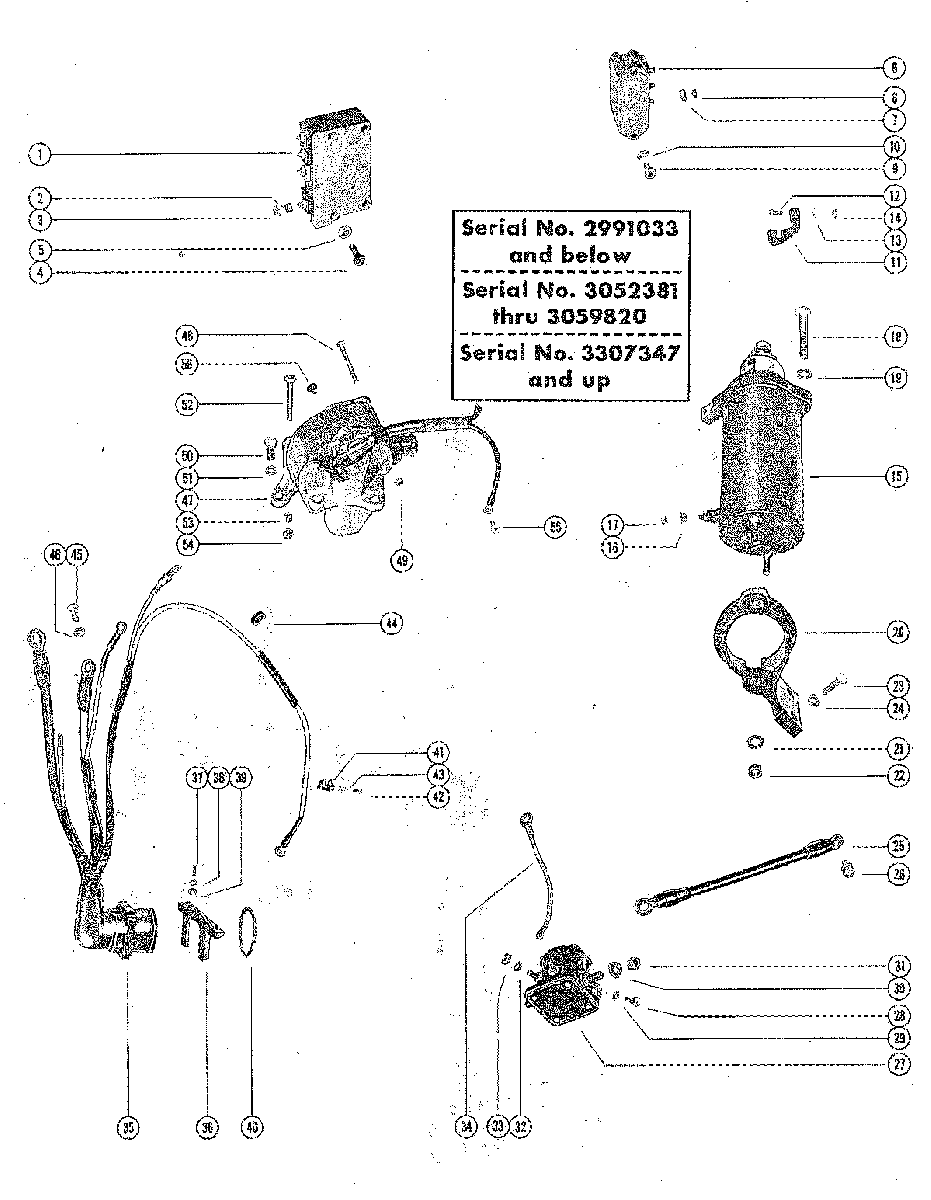

STARTER MOTOR AND WIRING HARNESS для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912
-
№АртикулНазвание
-
1332-2986A27 SWITCH BOX ASSEMBLY, COMPLETE (CASTING #332-2986)SWITCH BOX ASSEMBLY, COMPLETE (CASTING #332-2986)
-
212-45075 WASHER, SWITCH BOX TERMINALWASHER, SWITCH BOX TERMINAL
-
311-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
410-64279 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")
SERIAL 00000000-02670574SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")
SERIAL 00000000-02670574 -
410-69028 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")-SERIAL #27
SERIAL 02783253-09999999SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")-SERIAL #27
SERIAL 02783253-09999999 -
511-20184 NUT, SWITCH BOX TO FRONT SUPPORT BRACKET SCREWNUT, SWITCH BOX TO FRONT SUPPORT BRACKET SCREW
-
678614A1 RECTIFIER ASSEMBLY, COMPLETERECTIFIER ASSEMBLY, COMPLETE
-
712-45075 WASHER, RECTIFIER TERMINALWASHER, RECTIFIER TERMINAL
-
811-45076 NUT, RECTIFIER TERMINALNUT, RECTIFIER TERMINAL
-
910-76621 SCREW, RECTIFIER TO BOTTOM COWL (7/8")SCREW, RECTIFIER TO BOTTOM COWL (7/8")
-
1013-22773 LOCKWASHER, RECTIFIER MOUNTING SCREWLOCKWASHER, RECTIFIER MOUNTING SCREW
-
1159757 BRACKET, RETAINER-HIGH TENSION LEADBRACKET, RETAINER-HIGH TENSION LEAD
-
1210-64278 SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (1")
SERIAL 00000000-02670574SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (1")
SERIAL 00000000-02670574 -
1210-22956 SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (7/8")
SERIAL 02783253-09999999SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (7/8")
SERIAL 02783253-09999999 -
1312-29245 WASHER, RETAINER BRACKET FASTENING SCREWWASHER, RETAINER BRACKET FASTENING SCREW
-
1411-20184 NUT, RETAINER BRACKET SCREWNUT, RETAINER BRACKET SCREW
-
1550-45822A1 STARTER MOTOR ASSEMBLY
FOR BREAKDOWN, SEE ACCESSORY SECTION "E" SERIAL 00000000-02670574STARTER MOTOR ASSEMBLY
FOR BREAKDOWN, SEE ACCESSORY SECTION "E" SERIAL 00000000-02670574 -
1550-58788A3 STARTER MOTOR ASSEMBLY
FOR BREAKDOWN, SEE ACCESSORY SECTION "E" SERIAL 02783253-02886331STARTER MOTOR ASSEMBLY
FOR BREAKDOWN, SEE ACCESSORY SECTION "E" SERIAL 02783253-02886331 -
1550-58788A3 STARTER MOTOR ASSEMBLY (SERIAL #2986444 AND UP)
FOR BREAKDOWN, SEE ACCESSORY SECTION "E"STARTER MOTOR ASSEMBLY (SERIAL #2986444 AND UP)
FOR BREAKDOWN, SEE ACCESSORY SECTION "E" -
1613-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
1711-20890 NUT, STARTER MOTOR TERMINALNUT, STARTER MOTOR TERMINAL
-
1810-73657 SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 1/2")SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 1/2")
-
1810-31984 SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 3/8")SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 3/8")
-
1913-26993 LOCKWASHER, STARTER MOTOR SCREWLOCKWASHER, STARTER MOTOR SCREW
-
2052691 BRACKET, SUPPORT-STARTER MOTORBRACKET, SUPPORT-STARTER MOTOR
-
2113-24669 LOCKWASHER, THRU BOLT-BRACKET TO STARTER MOTORLOCKWASHER, THRU BOLT-BRACKET TO STARTER MOTOR
-
2211-20013 NUT, THRU BOLT-BRACKET TO STARTER MOTORNUT, THRU BOLT-BRACKET TO STARTER MOTOR
-
2310-35386 SCREW, STARTER MOTOR BRACKET TO CRANKCASE (1")SCREW, STARTER MOTOR BRACKET TO CRANKCASE (1")
-
2413-26993 LOCKWASHER, STARTER MOTOR BRACKET FASTENING SCREWLOCKWASHER, STARTER MOTOR BRACKET FASTENING SCREW
-
2584-93389A12 WIRE, STARTER MOTOR TO STARTER SOLENOID AND TOP MOUNTWIRE, STARTER MOTOR TO STARTER SOLENOID AND TOP MOUNT
-
2610-69035 SCREW, GROUND WIRE TO STARTER MOTOR (5/8")SCREW, GROUND WIRE TO STARTER MOTOR (5/8")
-
2725661T1 STARTER SOLENOIDSTARTER SOLENOID
-
2810-69028 SCREW, STARTER SOLENOID TO COIL BRACKET (3/4")SCREW, STARTER SOLENOID TO COIL BRACKET (3/4")
-
2913-26992 LOCKWASHER, STARTER SOLENOID MOUNTING SCREWLOCKWASHER, STARTER SOLENOID MOUNTING SCREW
-
3013-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")LOCKWASHER, SOLENOID TERMINAL (5/16")
-
3111-22053 NUT, SOLENOID TERMINAL-INSIDE (5/16")NUT, SOLENOID TERMINAL-INSIDE (5/16")
-
3213-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
3311-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
3452902 CABLE, STARTER SOLENOID TO STARTER MOTORCABLE, STARTER SOLENOID TO STARTER MOTOR
-
3552771A2 WIRING HARNESS (INTERNAL)WIRING HARNESS (INTERNAL)
-
3654-76368 CLAMP, WIRING HARNESS TO BOTTOM COWLCLAMP, WIRING HARNESS TO BOTTOM COWL
-
3710-45862 SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
-
3813-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREWLOCKWASHER, WIRING HARNESS CLAMP SCREW
-
3912-847883 WASHER, WIRING HARNESS CLAMP SCREWWASHER, WIRING HARNESS CLAMP SCREW
-
4024-28975 SPRING, GARTER-INTERNAL WIRING HARNESSSPRING, GARTER-INTERNAL WIRING HARNESS
-
4154-26550 CLAMP, WIRING HARNESS TO COIL BRACKETCLAMP, WIRING HARNESS TO COIL BRACKET
-
4210-69079 SCREW, WIRING HARNESS CLAMP TO COIL BRACKETSCREW, WIRING HARNESS CLAMP TO COIL BRACKET
-
438M0084613 "D" WASHER, WIRING HARNESS CLAMP"D" WASHER, WIRING HARNESS CLAMP
-
4425-26547 GROMMET, RECTIFIER TO SWITCH BOX WIREGROMMET, RECTIFIER TO SWITCH BOX WIRE
-
4510-98256 SCREW, WIRING HARNESS LEAD TO BOTTOM COWL (1/2")SCREW, WIRING HARNESS LEAD TO BOTTOM COWL (1/2")
-
4613-24669 LOCKWASHER, WIRING HARNESS LEAD SCREWLOCKWASHER, WIRING HARNESS LEAD SCREW
-
47332-4895A5 IGNITION COIL ASSEMBLY, COMPLETE
SERIAL 00000000-03059820IGNITION COIL ASSEMBLY, COMPLETE
SERIAL 00000000-03059820 -
47332-4895A5 IGNITION COIL ASSEMBLY, COMPLETE
SERIAL 03307347-09999999IGNITION COIL ASSEMBLY, COMPLETE
SERIAL 03307347-09999999 -
4810-46368 SCREW, IGNITION COIL CLAMPING (2 1/4")SCREW, IGNITION COIL CLAMPING (2 1/4")
-
4911-8267086 NUT, IGNITION COIL CLAMPING SCREWNUT, IGNITION COIL CLAMPING SCREW
-
5010-24624 SCREW, IGNITION COIL TO BOTTOM COWL ( 3/4")SCREW, IGNITION COIL TO BOTTOM COWL ( 3/4")
-
5113-26992 LOCKWASHER, IGNITION COIL SCREWLOCKWASHER, IGNITION COIL SCREW
-
5210-88488 SCREW, IGNITION COIL TO BOTTOM COWL (3 1/4")SCREW, IGNITION COIL TO BOTTOM COWL (3 1/4")
-
5323-52933 SPACER, COIL BRACKET TO BOTTOM COWLSPACER, COIL BRACKET TO BOTTOM COWL
-
5411-20184 NUT, IGNITION COIL SCREWNUT, IGNITION COIL SCREW
-
5510-45218 SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")
-
56269011 BUMPER, IGNITION COILBUMPER, IGNITION COIL
