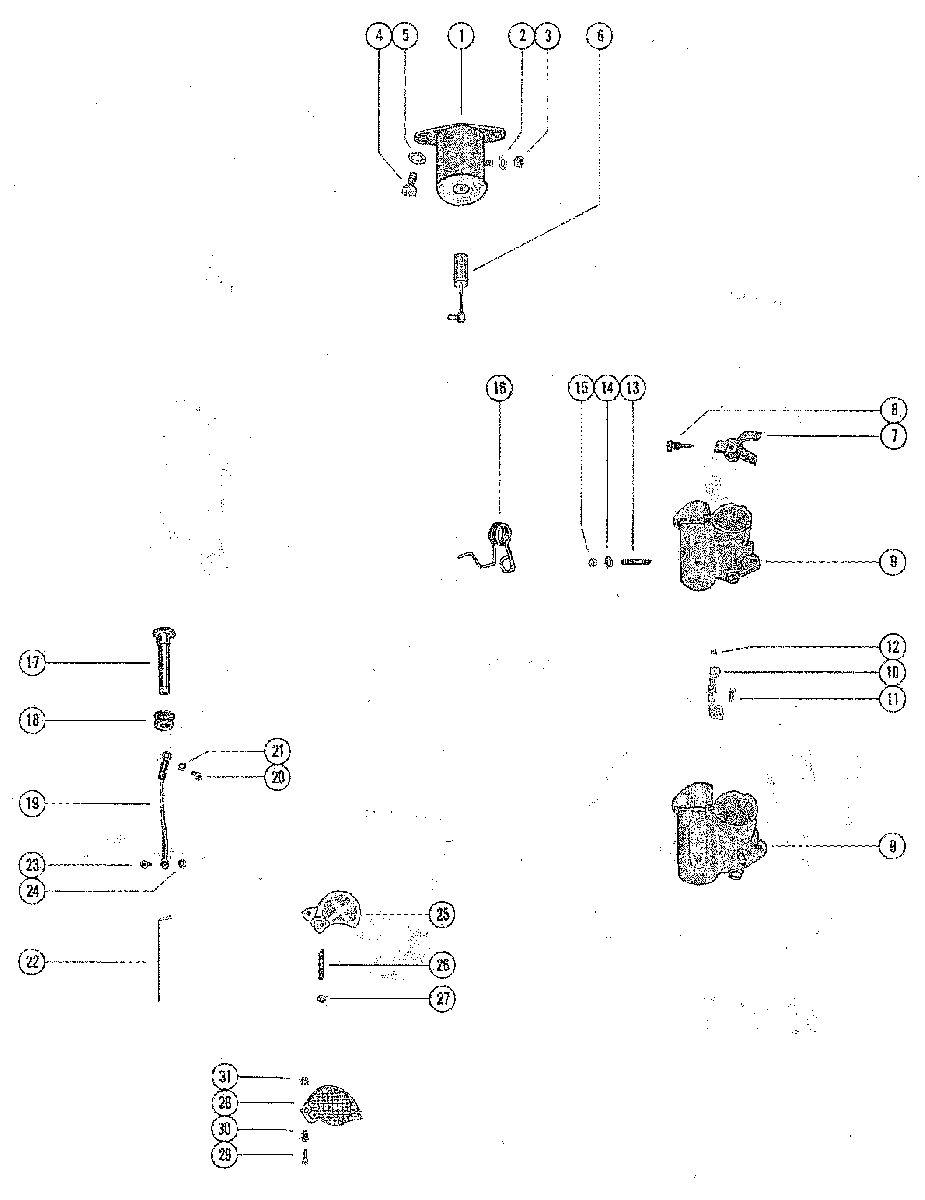

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 850 (4 CYL.) 8005440 THRU 8043774
-
№АртикулНазвание
-
154293A10 CHOKE SOLENOIDCHOKE SOLENOID
-
213-26996 LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOIDLOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID
-
311-68219 NUT, WIRE HARNESS LEAD TO CHOKE SOLENOIDNUT, WIRE HARNESS LEAD TO CHOKE SOLENOID
-
410-25299 SCREW, CHOKE SOLENOID ATTACHING (3/4")SCREW, CHOKE SOLENOID ATTACHING (3/4")
-
513-26993 LOCKWASHER, CHOKE SOLENOID ATTACHING SCREWLOCKWASHER, CHOKE SOLENOID ATTACHING SCREW
-
690548A1 PLUNGER/LINK ASS'Y, CHOKE SOLENOIDPLUNGER/LINK ASS'Y, CHOKE SOLENOID
-
752518 CLUSTER, THROTTLE LEVERCLUSTER, THROTTLE LEVER
-
81395-6027 SCREW, CLUSTER TO THROTTLE LEVERSCREW, CLUSTER TO THROTTLE LEVER
-
91352-4510A27 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWCARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
91352-4510A30 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3865695 THRU 4092964
AUSTRALIA 8017140 THRU 8025614
BELGIUM 9053364 THRU 9069878
CANADA 7033028 THRU 7044107CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3865695 THRU 4092964
AUSTRALIA 8017140 THRU 8025614
BELGIUM 9053364 THRU 9069878
CANADA 7033028 THRU 7044107 -
91368-5688A4 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UPCARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UP -
1053720A2 THROTTLE PICK-UP COUPLING ASSEMBLYTHROTTLE PICK-UP COUPLING ASSEMBLY
-
1110-66104 SCREW, THROTTLE COUPLING MOUNTING (3/4")SCREW, THROTTLE COUPLING MOUNTING (3/4")
-
1228-89694 INSERT, THROTTLE COUPLINGINSERT, THROTTLE COUPLING
-
1310-657461 STUD, CHOKE ROD SPRING TO CARBURETOR (7/8")STUD, CHOKE ROD SPRING TO CARBURETOR (7/8")
-
1423-32427 SPACER, CHOKE ROD SPRING STUDSPACER, CHOKE ROD SPRING STUD
-
1511-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUDNUT, CHOKE ROD SPRING TO CARBURETOR STUD
-
1624-48230 SPRING, TENSION - CHOKE RODSPRING, TENSION - CHOKE ROD
-
1790242A1 KNOB, CHOKE RODKNOB, CHOKE ROD
-
1825-20116 GROMMET, CHOKE RODGROMMET, CHOKE ROD
-
1949589 STRAP, CHOKE KNOB TO CHOKE RODSTRAP, CHOKE KNOB TO CHOKE ROD
-
2010-29794 SCREW, STRAP TO CHOKE KNOB (3/8")SCREW, STRAP TO CHOKE KNOB (3/8")
-
2113-26996 LOCKWASHER, STRAP SCREWLOCKWASHER, STRAP SCREW
-
2248203 ROD, CHOKEROD, CHOKE
-
2310-69022 SCREW, STRAP TO CHOKE RODSCREW, STRAP TO CHOKE ROD
-
2411-46438 NUT, STRAP TO CHOKE ROD SCREWNUT, STRAP TO CHOKE ROD SCREW
-
2548152 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
2616-69037 STUD, FILTER SCREEN TO CARBURETOR (1 1/8")STUD, FILTER SCREEN TO CARBURETOR (1 1/8")
-
2711-20110 NUT, CHOKE SHUTTER STUDNUT, CHOKE SHUTTER STUD
-
2835-57819 SCREEN, FILTER - CARBURETORSCREEN, FILTER - CARBURETOR
-
2910-23015 SCREW, FILTER SCREEN TO CARBURETORSCREW, FILTER SCREEN TO CARBURETOR
-
3024-57818 SPRING, FILTER SCREENSPRING, FILTER SCREEN
-
3111-20110 NUT, CARBURETOR SCREEN SCREWNUT, CARBURETOR SCREEN SCREW
