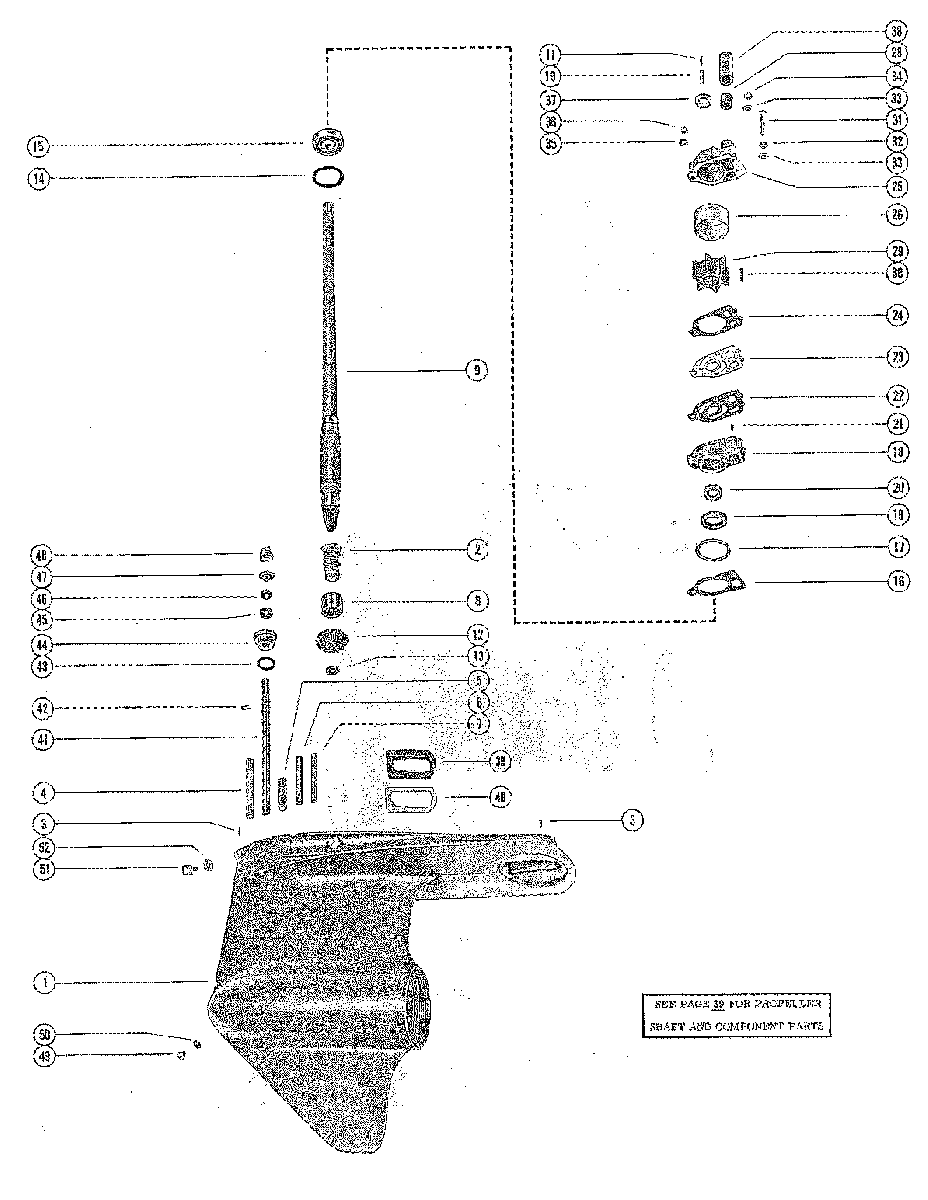

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 850 (4 CYL.) 8005440 THRU 8043774
-
№АртикулНазвание
-
1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE BELOW UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE BELOW UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE BELOW UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE BELOW UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE BELOW UNITED STATES 3865695 THRU 4153349
AUSTRALIA 8017140 THRU 8030639
BELGIUM 9053364 THRU 9086163
CANADA 7033028 THRU 7054482GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE BELOW UNITED STATES 3865695 THRU 4153349
AUSTRALIA 8017140 THRU 8030639
BELGIUM 9053364 THRU 9086163
CANADA 7033028 THRU 7054482 -
1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE BELOW UNITED STATES 3865695 THRU 4153349
AUSTRALIA 8017140 THRU 8030639
BELGIUM 9053364 THRU 9086163
CANADA 7033028 THRU 7054482GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE BELOW UNITED STATES 3865695 THRU 4153349
AUSTRALIA 8017140 THRU 8030639
BELGIUM 9053364 THRU 9086163
CANADA 7033028 THRU 7054482 -
1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE BELOW UNITED STATES 4153350 AND UP
AUSTRALIA 8030640 AND UP
BELGIUM 9086164 AND UP
CANADA 7054483 AND UPGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE BELOW UNITED STATES 4153350 AND UP
AUSTRALIA 8030640 AND UP
BELGIUM 9086164 AND UP
CANADA 7054483 AND UP -
1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE BELOW UNITED STATES 4153350 AND UP
AUSTRALIA 8030640 AND UP
BELGIUM 9086164 AND UP
CANADA 7054483 AND UPGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE BELOW UNITED STATES 4153350 AND UP
AUSTRALIA 8030640 AND UP
BELGIUM 9086164 AND UP
CANADA 7054483 AND UP -
11623-6052A4 GEAR HOUSING ASSEMBLY
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWGEAR HOUSING ASSEMBLY
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
11623-6052A4 GEAR HOUSING ASSEMBLY
UNITED STATES 3865695 THRU 4153349
AUSTRALIA 8017140 THRU 8030639
BELGIUM 9053364 THRU 9086163
CANADA 7033028 THRU 7054482GEAR HOUSING ASSEMBLY
UNITED STATES 3865695 THRU 4153349
AUSTRALIA 8017140 THRU 8030639
BELGIUM 9053364 THRU 9086163
CANADA 7033028 THRU 7054482 -
11623-6052A4 GEAR HOUSING ASSEMBLY
UNITED STATES 4153350 AND UP
AUSTRALIA 8030640 AND UP
BELGIUM 9086164 AND UP
CANADA 7054483 AND UPGEAR HOUSING ASSEMBLY
UNITED STATES 4153350 AND UP
AUSTRALIA 8030640 AND UP
BELGIUM 9086164 AND UP
CANADA 7054483 AND UP -
223-56513 SLEEVE, LUBRICATIONSLEEVE, LUBRICATION
-
317-8M0084726 PIN, GEAR HOUSINGPIN, GEAR HOUSING
-
416-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
-
516-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")
-
616-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
-
716-306671 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
-
831-32898T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
945-59117A1 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
-
945-59116A1 DRIVE SHAFT ASSEMBLY (LONG SHAFT)DRIVE SHAFT ASSEMBLY (LONG SHAFT)
-
1024-34576 SPRING, COMPRESSION - DRIVE SHAFTSPRING, COMPRESSION - DRIVE SHAFT
-
1117-30545 PIN, COMPRESSION SPRING RETAININGPIN, COMPRESSION SPRING RETAINING
-
1243-56518 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
-
1311-35921 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1415-57007A1 SHIM, TAPERED ROLLER BEARING TO GEAR HOUSING (.002-3-5-10)SHIM, TAPERED ROLLER BEARING TO GEAR HOUSING (.002-3-5-10)
-
1531-33138A1 TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFTTAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
-
1627-856704 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
1725-33145 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
1846-58618A1 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1926-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
2026-55682 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
2117-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMPDOWEL PIN, WATER PUMP BASE TO WATER PUMP
-
2227-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
23324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
2427-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODYGASKET, UPPER - FACE PLATE TO WATER PUMP BODY
-
2546-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2648752T INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2826-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2947-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
3028-8M0032834 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
3110-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
-
3213-26992 LOCKWASHER, WATER PUMP BODY SCREWLOCKWASHER, WATER PUMP BODY SCREW
-
3312-29245 WASHER, WATER PUMP BODY FASTENING SCRW AND STUDWASHER, WATER PUMP BODY FASTENING SCRW AND STUD
-
3411-826709109 NUT, WATER PUMP BODY FASTENING STUDNUT, WATER PUMP BODY FASTENING STUD
-
3512-36001 WASHER, WATER PUMP BODY FASTENING STUDWASHER, WATER PUMP BODY FASTENING STUD
-
3611-826709111 NUT, WATER PUMP BODY FASTENING STUDNUT, WATER PUMP BODY FASTENING STUD
-
3725-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
3823-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3960909 SEAL, EXHAUST TUBE
- NOT PART OF GEAR HOUSING COMPLETE UNITED STATES 3739627 AND BELOW
AUSTRALIA 8013014 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7024072 AND BELOWSEAL, EXHAUST TUBE
- NOT PART OF GEAR HOUSING COMPLETE UNITED STATES 3739627 AND BELOW
AUSTRALIA 8013014 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7024072 AND BELOW -
4060910 PLATE, SUPPORT - EXHAUST TUBE SEAL
- NOT PART OF GEAR HOUSING COMPLETE UNITED STATES 3739627 AND BELOW
AUSTRALIA 8013014 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7024072 AND BELOWPLATE, SUPPORT - EXHAUST TUBE SEAL
- NOT PART OF GEAR HOUSING COMPLETE UNITED STATES 3739627 AND BELOW
AUSTRALIA 8013014 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7024072 AND BELOW -
3937641001 SEAL, EXHAUST TUBE
- NOT PART OF GEAR HOUSING COMPLETE UNITED STATES 3739628 AND UP
AUSTRALIA 8013015 AND UP
BELGIUM 9053364 AND UP
CANADA 7024073 AND UPSEAL, EXHAUST TUBE
- NOT PART OF GEAR HOUSING COMPLETE UNITED STATES 3739628 AND UP
AUSTRALIA 8013015 AND UP
BELGIUM 9053364 AND UP
CANADA 7024073 AND UP -
4038051 PLATE, SUPPORT - EXHAUST TUBE SEAL
- NOT PART OF GEAR HOUSING COMPLETE UNITED STATES 3739628 AND UP
AUSTRALIA 8013015 AND UP
BELGIUM 9053364 AND UP
CANADA 7024073 AND UPPLATE, SUPPORT - EXHAUST TUBE SEAL
- NOT PART OF GEAR HOUSING COMPLETE UNITED STATES 3739628 AND UP
AUSTRALIA 8013015 AND UP
BELGIUM 9053364 AND UP
CANADA 7024073 AND UP -
4176062A1 SHAFT ASSEMBLY, SHIFT - LOWERSHAFT ASSEMBLY, SHIFT - LOWER
-
4253-29641 "E" RING, RETAINING, LOWER SHIFT SHAFT"E" RING, RETAINING, LOWER SHIFT SHAFT
-
4325-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
4423-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4526-24590 OIL SEAL, SHIFT SHAFT BUSHING (LOWER)OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
-
4526-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
-
4612-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4778036 SPACER, LOWER - REVERSE LOCKINGSPACER, LOWER - REVERSE LOCKING
-
4843308T1 CAM, REVERSE LOCKINGCAM, REVERSE LOCKING
-
4910-79953Q04 SCREW, GREASE FILLER AND VENT HOLE - - QUANT
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UPSCREW, GREASE FILLER AND VENT HOLE - - QUANT
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UP -
4922-8M0058389 PLUG, DRAIN (MAGNETIC)
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UPPLUG, DRAIN (MAGNETIC)
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UP -
5012-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
5119-48750 PLUG, GEAR HOUSING FLUSHING HOLEPLUG, GEAR HOUSING FLUSHING HOLE
-
5212-49221 WASHER, GEAR HOUSING FLUSHING HOLE PLUGWASHER, GEAR HOUSING FLUSHING HOLE PLUG
