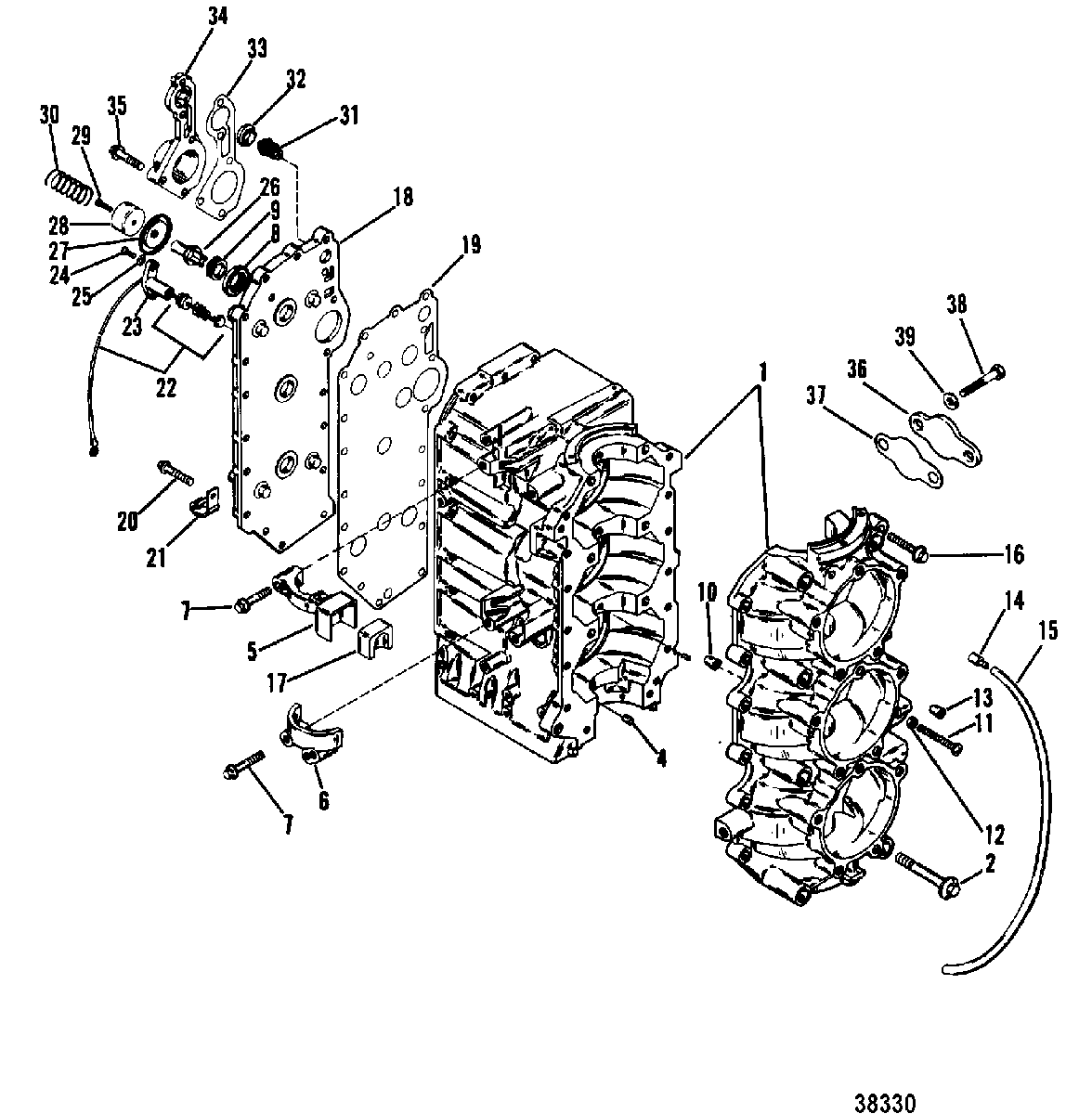

CYLINDER BLOCK AND CRANKCASE для Mercury - 90 (3 CYL.) 0A996142 THRU 0B240450
-
№АртикулНазвание
-
1876-8947T50 CYLINDER BLOCK ASSEMBLY
(80/COMMERCIAL)CYLINDER BLOCK ASSEMBLY
(80/COMMERCIAL) -
1876-8947T49 CYLINDER BLOCK ASSEMBLY
(70/75)CYLINDER BLOCK ASSEMBLY
(70/75) -
1876-8947T51 CYLINDER BLOCK ASSEMBLY
(90)CYLINDER BLOCK ASSEMBLY
(90) -
210-4009680 SCREW, (M10 x 80), CRANKCASE TO CYLINDER BLOCKSCREW, (M10 x 80), CRANKCASE TO CYLINDER BLOCK
-
317-8M0036405 PIN (BEARING RACE)PIN (BEARING RACE)
-
417-43044 PIN, Dowel, LOCATINGPIN, Dowel, LOCATING
-
5428842 COVER, STARTER (TOP)COVER, STARTER (TOP)
-
676867 COVER, STARTER (BOTTOM)COVER, STARTER (BOTTOM)
-
710-81742750 SCREW, STARTER COVERSCREW, STARTER COVER
-
865848 CARRIER, POPPET VALVECARRIER, POPPET VALVE
-
925-64872 GROMMET, POPPET VALVEGROMMET, POPPET VALVE
-
1021-42657A3 CHECK VALVE, CRANKCASECHECK VALVE, CRANKCASE
-
1110-814776 SCREW, ADUSTINGSCREW, ADUSTING
-
1211-400212 NUT, JAM - ADJUSTING SCREWNUT, JAM - ADJUSTING SCREW
-
1342942 CAP, ADJUSTING SCREWCAP, ADJUSTING SCREW
-
1421-426233 CHECK VALVE (PRESS-IN)CHECK VALVE (PRESS-IN)
-
1532-892024122 TUBING, (20.00 Feet Bulk), BLEEDTUBING, (20.00 Feet Bulk), BLEED
-
1610-82127335 SCREW, (M8 x 1.25 x 35) , CRANKCASE TO CYLINDER BLOCKSCREW, (M8 x 1.25 x 35) , CRANKCASE TO CYLINDER BLOCK
-
1799162001 BOOT, OIL TANKBOOT, OIL TANK
-
181034-9003A2 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
1927-430057 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
2010-82127335 SCREW, (M8 x 1.25 x 35) , CYLINDER BLOCK COVERSCREW, (M8 x 1.25 x 35) , CYLINDER BLOCK COVER
-
2154-47483 J CLIP, CYLINDER BLOCK COVER SCREWJ CLIP, CYLINDER BLOCK COVER SCREW
-
2278799 SENDER, Temperature (19.50 Inch)SENDER, Temperature (19.50 Inch)
-
2344290T RETAINER, TEMPERATURE SENDERRETAINER, TEMPERATURE SENDER
-
2410-48409 SCREW, (#10-16 x .625) Stainless Steel, RETAINERSCREW, (#10-16 x .625) Stainless Steel, RETAINER
-
2512-56681 WASHER, (.203 x .500 x .032), RETAINER SCREWWASHER, (.203 x .500 x .032), RETAINER SCREW
-
2686596 POPPET VALVEPOPPET VALVE
-
27648771 DIAPHRAGMDIAPHRAGM
-
2812-94182 WASHERWASHER
-
2910-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
3024-42996 SPRING, (Stainless Steel), COMPRESSION - POPPET VALVESPRING, (Stainless Steel), COMPRESSION - POPPET VALVE
-
3175692 THERMOSTAT (143 DEG.)THERMOSTAT (143 DEG.)
-
3227-62386001 GASKET, THERMOSTATGASKET, THERMOSTAT
-
3327-430068 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
348M0047619 COVER, THERMOSTATCOVER, THERMOSTAT
-
3510-82127335 SCREW, (M8 x 1.25 x 35) , THERMOSTAT COVERSCREW, (M8 x 1.25 x 35) , THERMOSTAT COVER
-
3612621 COVER, OIL PAD NON OIL INJECTIONCOVER, OIL PAD NON OIL INJECTION
-
3727-126201 GASKET, COVER NON OIL INJECTIONGASKET, COVER NON OIL INJECTION
-
3810-40007106 SCREW, (M5 x 13), COVER NON OIL INJECTIONSCREW, (M5 x 13), COVER NON OIL INJECTION
-
3912-4002314 WASHER, COVER SCREW NON OIL INJECTIONWASHER, COVER SCREW NON OIL INJECTION
