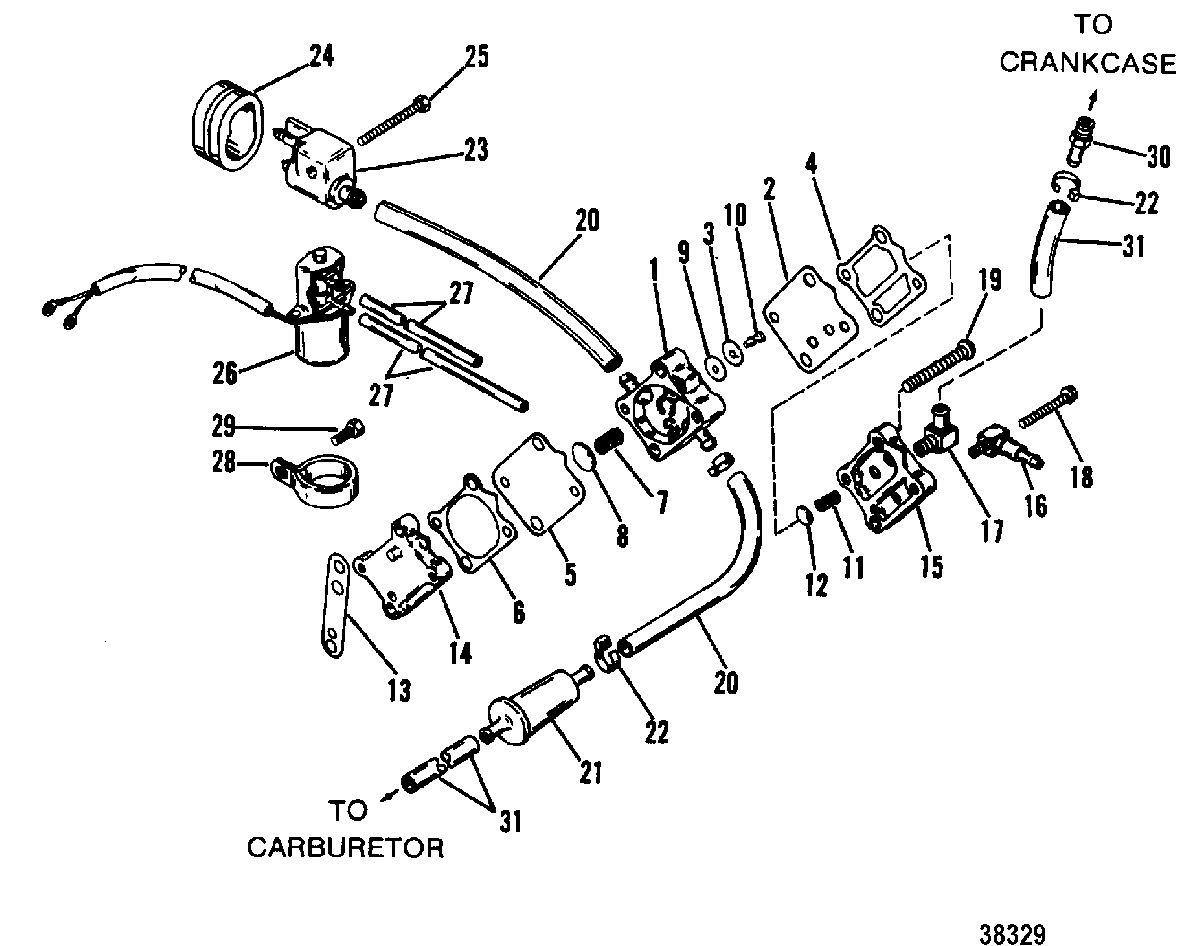

FUEL PUMP для Mercury - 90 (3 CYL.) 0A996142 THRU 0B240450
-
№АртикулНазвание
-
114360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
242909A4 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, CHECK VALVE-RUBBERNOT SOLD SEPARATE, CHECK VALVE-RUBBER
-
4NSS NOT SOLD SEPARATE, GASKET-BOOSTNOT SOLD SEPARATE, GASKET-BOOST
-
5NSS NOT SOLD SEPARATE, DIAPHRAGMNOT SOLD SEPARATE, DIAPHRAGM
-
6NSS NOT SOLD SEPARATE, GASKET-PULSENOT SOLD SEPARATE, GASKET-PULSE
-
7NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
8NSS NOT SOLD SEPARATE, CAPNOT SOLD SEPARATE, CAP
-
9NSS NOT SOLD SEPARATE, CHECK VALVENOT SOLD SEPARATE, CHECK VALVE
-
10NSS NOT SOLD SEPARATE, RETAINERNOT SOLD SEPARATE, RETAINER
-
11NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
12NSS NOT SOLD SEPARATE, CAPNOT SOLD SEPARATE, CAP
-
1327-987691 GASKET, BASEGASKET, BASE
-
1498768 BASE, FUEL PUMPBASE, FUEL PUMP
-
1598775A1 PLATE, FUEL PUMPPLATE, FUEL PUMP
-
1621-424811 CHECK VALVECHECK VALVE
-
1722-19688 FITTINGFITTING
-
1810-82104540 SCREW, FUEL PUMPSCREW, FUEL PUMP
-
1910-40057134 SCREW, (M6 x 50), FUEL PUMP TO CRANKCASESCREW, (M6 x 50), FUEL PUMP TO CRANKCASE
-
2032-8M0108349 TUBINGTUBING
-
2135-816296Q2 FILTER, FuelFILTER, Fuel
-
2254-816311T CLAMP, FUEL TUBINGCLAMP, FUEL TUBING
-
2322-816856Q3 CONNECTOR, FuelCONNECTOR, Fuel
-
2425-145092 GROMMET, FUEL CONNECTORGROMMET, FUEL CONNECTOR
-
2510-4000183 SCREW, (M6 x 35), FUEL CONNECTORSCREW, (M6 x 35), FUEL CONNECTOR
-
2689-819503A2 VALVE, EnrichnerVALVE, Enrichner
-
2732-1430165 TUBING, (38.00 Inches Bulk), ENRICHNER VALVETUBING, (38.00 Inches Bulk), ENRICHNER VALVE
-
2854-15279 CLAMP, ENRICHNER VALVECLAMP, ENRICHNER VALVE
-
2910-4000171 SCREW, (M6 x 16), CLAMPSCREW, (M6 x 16), CLAMP
-
3022-64705 FITTING, FUEL LINEFITTING, FUEL LINE
-
3132-8M0108355 LINE, (57.00 Inches Bulk)LINE, (57.00 Inches Bulk)
-
-42909A4 DIAPHRAGM KITDIAPHRAGM KIT
-
-27-43004A99 GASKET SETGASKET SET
