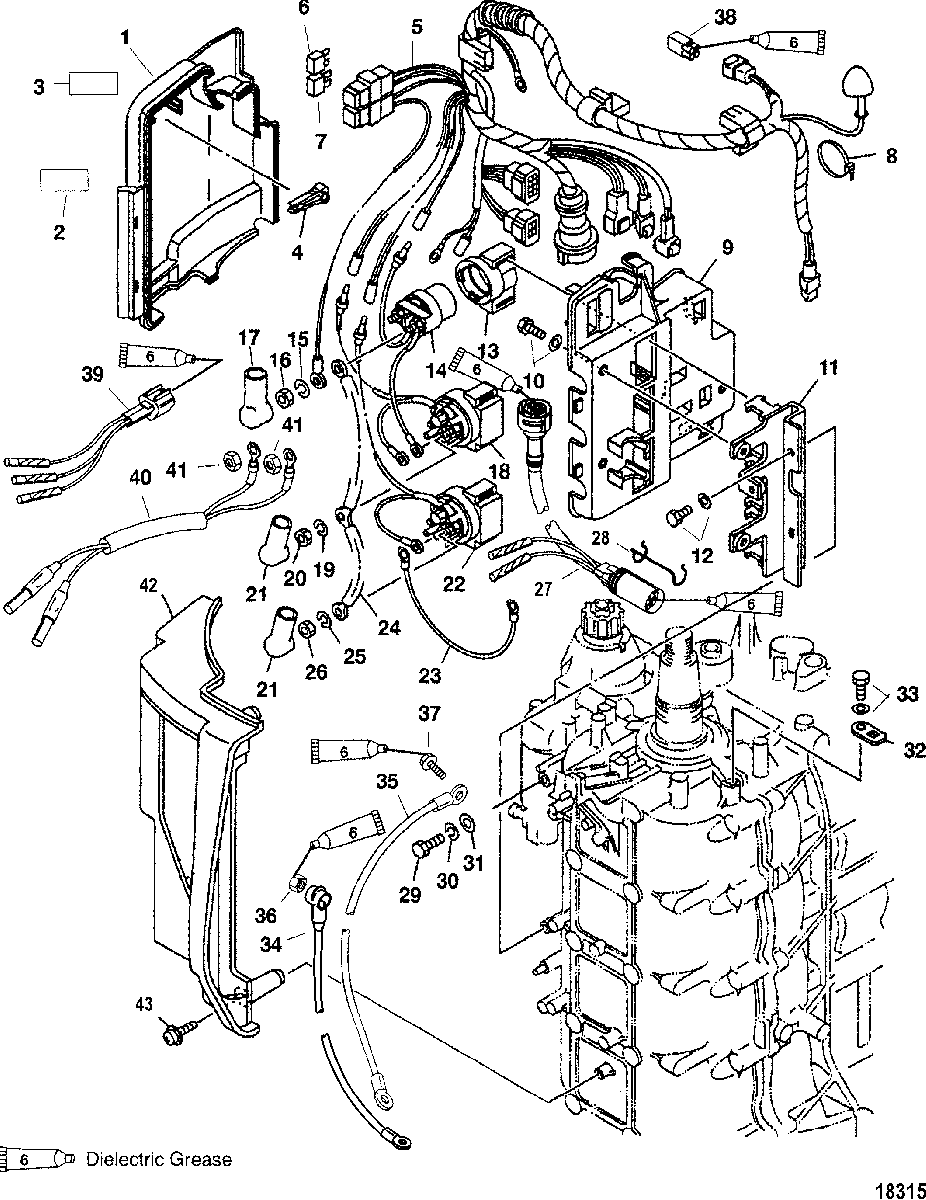

Electrical Components для Mercury - 90 (4-STROKE) 0G960500 THRU 0T800999
-
№АртикулНазвание
-
1804288T COVERCOVER
-
237-881865 DECAL, Caution-Start in GearDECAL, Caution-Start in Gear
-
337-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
-
4804289 PULLER, FusePULLER, Fuse
-
584-8042903 HARNESS ASSEMBLY
SN# 0T598999 & BelowHARNESS ASSEMBLY
SN# 0T598999 & Below -
584-8042903 HARNESS ASSEMBLY
SN# 0T599000 & UpHARNESS ASSEMBLY
SN# 0T599000 & Up -
688-832969T20 FUSE, 20 AmpereFUSE, 20 Ampere
-
788-8M0057159 FUSE, 30 AmpereFUSE, 30 Ampere
-
0891824 COVER, Fuse - BlackCOVER, Fuse - Black
-
854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
9804287T BRACKETBRACKET
-
1010-811188T BOLT, (M6 x 16)BOLT, (M6 x 16)
-
11804286T BRACKET, RelayBRACKET, Relay
-
1210-811188T BOLT, (M6 x 16)BOLT, (M6 x 16)
-
138M0010250 BRACKETBRACKET
-
1489-8M0098898 RELAYRELAY
-
1512-827205 WASHERWASHER
-
1611-827204 NUT, (M6)NUT, (M6)
-
1785-804284001 BOOTBOOT
-
18804281T RELAYRELAY
-
1912-827205 WASHERWASHER
-
2011-827204 NUT, (M6)NUT, (M6)
-
2185-804284001 BOOTBOOT
-
22804282T RELAYRELAY
-
2384-804285 CABLECABLE
-
2484-804283 CABLECABLE
-
2512-827205 WASHERWASHER
-
2611-827204 NUT, (M6)NUT, (M6)
-
2784-858740T4 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
2892753 RETAINERRETAINER
-
2910-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
3013-82212M LOCKWASHERLOCKWASHER
-
3112-82214M WASHERWASHER
-
32804292 PLATEPLATE
-
3310-804602 BOLT, (M6 x 12)BOLT, (M6 x 12)
-
3484-88439A33 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
3584-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
3611-401388 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
3710-81893412 SCREW, (M8 x 12)SCREW, (M8 x 12)
-
38859249T1 CONNECTORCONNECTOR
-
3984-858723T1 HARNESS ASSEMBLY, Adaptor/TrimHARNESS ASSEMBLY, Adaptor/Trim
-
4084-858914T1 HARNESS ASSEMBLY, Trim Motor AdaptorHARNESS ASSEMBLY, Trim Motor Adaptor
-
4111-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
42804293T COVER
(Use where Applicable)COVER
(Use where Applicable) -
4310-804126 SCREW
(Use where Applicable)SCREW
(Use where Applicable)
