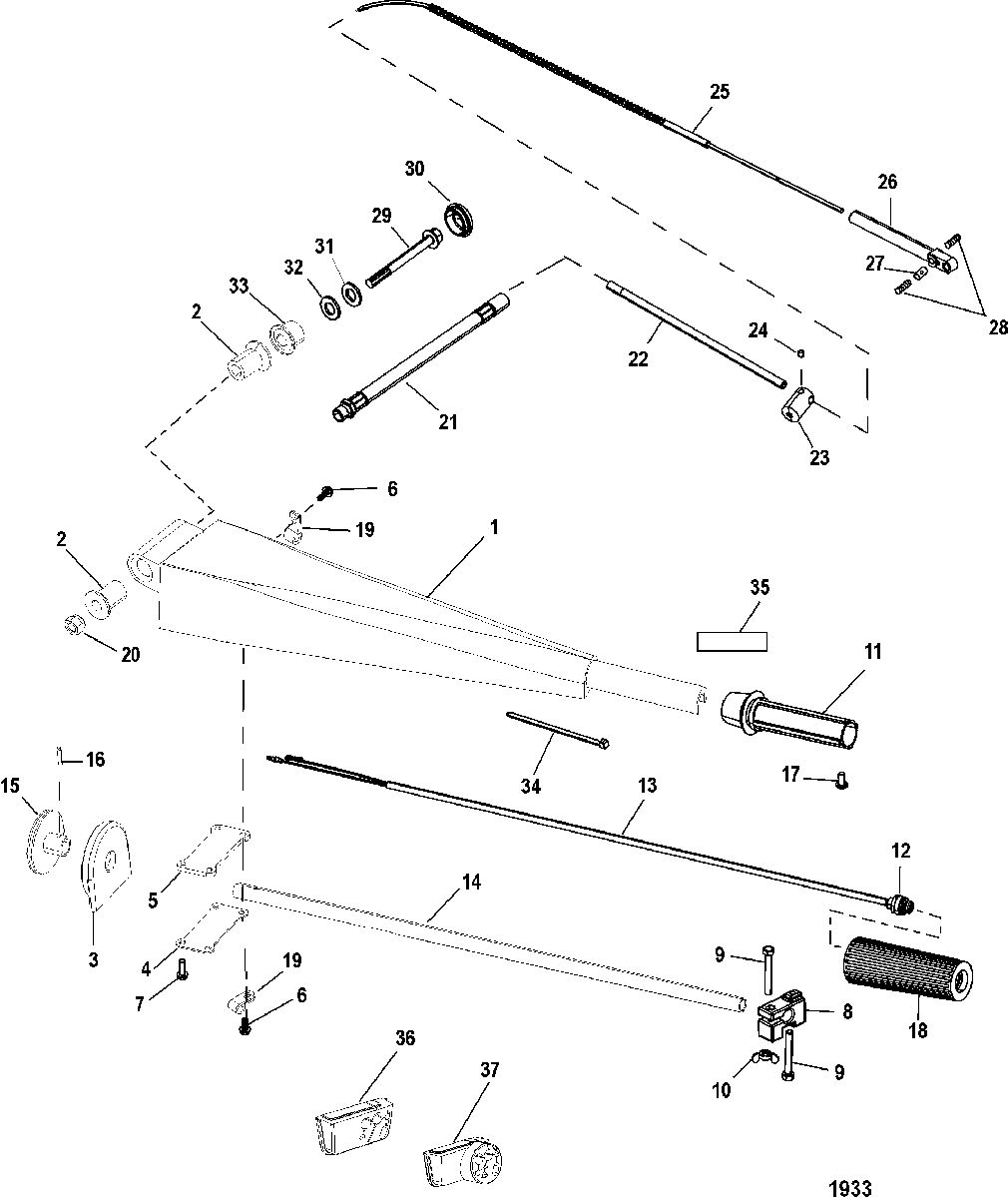

Steering Handle Kit для Mercury - 90 (4-STROKE) 0G960500 THRU 0T800999

№

Артикул

Название
-

816366A42 STEERING HANDLE KIT
(Use W/ Stainless Steel Mesh Covered Conduit - Ref. #21)

STEERING HANDLE KIT
(Use W/ Stainless Steel Mesh Covered Conduit - Ref. #21)

128 690 ₽
-

816366A42 STEERING HANDLE KIT
(Use W/ Black Vinyl Coverd Conduit - Ref. #21)

STEERING HANDLE KIT
(Use W/ Black Vinyl Coverd Conduit - Ref. #21)

128 690 ₽
-

816366A32 STEERING HANDLE KIT
(2004 Model Year and Up)

STEERING HANDLE KIT
(2004 Model Year and Up)

120 480 ₽
1

12020A3 HANDLE ASSEMBLY, Steering Arm

HANDLE ASSEMBLY, Steering Arm

22 190 ₽
NS

22-74036 FITTING, Grease

FITTING, Grease

340 ₽
2

23-42992T02 BUSHING

BUSHING

580 ₽
3

48414 HOUSING

HOUSING

2 370 ₽
4

48519 PLATE

PLATE

1 140 ₽
5

27-48518 GASKET

GASKET

380 ₽
6

10-878609 SCREW, (#10-16 x .600)

SCREW, (#10-16 x .600)

150 ₽
7

10-878608 SCREW, (#10-16 x .500)

SCREW, (#10-16 x .500)

120 ₽
8

54-889729 CLAMP

CLAMP

1 300 ₽
9

10-40007112 SCREW, (M5 x 40)

SCREW, (M5 x 40)

230 ₽
10

11-816874 WING NUT, (#10-32)

WING NUT, (#10-32)

170 ₽
11

87-823609A15 SWITCH KIT, Stop - Throttle Handle

SWITCH KIT, Stop - Throttle Handle

3 670 ₽
12

87-8M0104612 SWITCH ASSEMBLY, Stop

SWITCH ASSEMBLY, Stop

2 990 ₽
13

NSS NOT SOLD SEPARATE, Insulator

NOT SOLD SEPARATE, Insulator

0 ₽
14

12018A4 TUBE ASSEMBLY, Throttle

TUBE ASSEMBLY, Throttle

16 240 ₽
15

NSS NOT SOLD SEPARATE, Drive Wheel

NOT SOLD SEPARATE, Drive Wheel

0 ₽
16

NSS NOT SOLD SEPARATE, Roll Pin

NOT SOLD SEPARATE, Roll Pin

0 ₽
17

10-62568 SCREW, (#10-16 x .375)

SCREW, (#10-16 x .375)

70 ₽
18

99589003 GRIP

GRIP

3 670 ₽
19

54-648552 CLIP

CLIP

330 ₽
20

11-40140 NUT, (M10)

NUT, (M10)

380 ₽
21

8885242 CONDUIT (7.63)
(Stainless Steel Mesh Covered)

CONDUIT (7.63)
(Stainless Steel Mesh Covered)

6 880 ₽
21

8885241 CONDUIT, (9.03 Inches)
(Black Vinyl Coverd)

CONDUIT, (9.03 Inches)
(Black Vinyl Coverd)

13 320 ₽
22

895665 GUIDE TUBE

GUIDE TUBE

8 200 ₽
23

89578 BARREL, Throttle Actuator

BARREL, Throttle Actuator

3 810 ₽
24

10-824081 SET SCREW, (#10-32)

SET SCREW, (#10-32)

50 ₽
25

12019003 CABLE ASSEMBLY

CABLE ASSEMBLY

10 100 ₽
26

43433 GUIDE, Cable

GUIDE, Cable

1 330 ₽
27

20007 ANCHOR, Cable End

ANCHOR, Cable End

1 190 ₽
28

10-20518 SET SCREW, (#8-32)

SET SCREW, (#8-32)

140 ₽
29

10-823567105 SCREW, (M10 x 105) Hex Flange - Stainless Steel

SCREW, (M10 x 105) Hex Flange - Stainless Steel

790 ₽
30

48416T CAP

CAP

520 ₽
31

12-4002319 WASHER

WASHER

200 ₽
32

12-12024 WASHER, (.402 x .787 x .039 Bellevi)

WASHER, (.402 x .787 x .039 Bellevi)

210 ₽
33

23-146011 SPACER

SPACER

2 430 ₽
34

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)

40 ₽
35

NSS NOT SOLD SEPARATE, Decal-Throttle

NOT SOLD SEPARATE, Decal-Throttle

0 ₽
36

881240 GROMMET, Hose Cable
(Use W/ Stainless Steel Mesh Covered Conduit - Ref. #21)

GROMMET, Hose Cable
(Use W/ Stainless Steel Mesh Covered Conduit - Ref. #21)

5 310 ₽
37

25-889724 GROMMET, Hose Cable
(Use W/ Black Vinyl Coverd Conduit - Ref. #21)

GROMMET, Hose Cable
(Use W/ Black Vinyl Coverd Conduit - Ref. #21)

3 560 ₽
