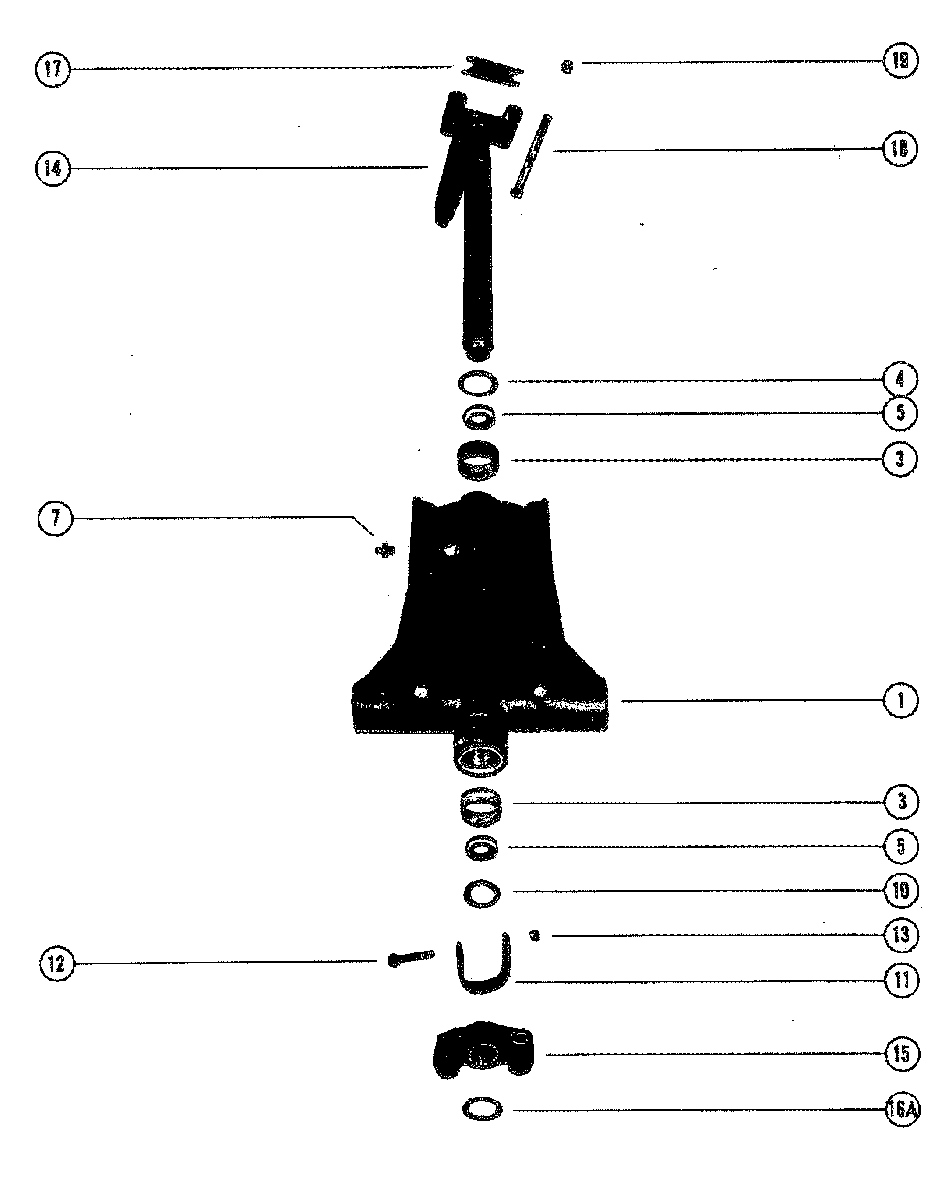

SWIVEL BRACKET ASSEMBLY для Mercury - 90 (6 CYL.) 8071020 AND UP
-
№АртикулНазвание
-
11482-7670A5 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
323-69341 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
412-69342 WASHER, SWIVEL PIN - UPPERWASHER, SWIVEL PIN - UPPER
-
526-37448 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
722-74036 GREASE FITTING, SWIVEL BRACKETGREASE FITTING, SWIVEL BRACKET
-
1013-88507 WAVE WASHER, SWIVEL PIN - LOWERWAVE WASHER, SWIVEL PIN - LOWER
-
1128205T STRAP STOP
DRIVE SHAFT HOUSING TO SWIVEL BRACKETSTRAP STOP
DRIVE SHAFT HOUSING TO SWIVEL BRACKET -
1210-28200 SCREW
STRAP STOP TO DRIVE SHAFT HOUSING (2-7/8")SCREW
STRAP STOP TO DRIVE SHAFT HOUSING (2-7/8") -
1311-25269 NUT, STRAP STOP FASTENING SCREWNUT, STRAP STOP FASTENING SCREW
-
1417-73593A2 SWIVEL PIN AND ARM ASSEMBLYSWIVEL PIN AND ARM ASSEMBLY
-
1573984T BOTTOM YOKEBOTTOM YOKE
-
1653-73591 RETAINING REING, BOTTOM YOKERETAINING REING, BOTTOM YOKE
-
1728203 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
1810-49554 BOLT, STEERING ARM TO UPPER MOUNT (5-7/8")BOLT, STEERING ARM TO UPPER MOUNT (5-7/8")
-
1911-34933 NUT, STEERING ARM BOLTNUT, STEERING ARM BOLT
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE CHOKE SOLENOID
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- END CAPS, MANIFOLD AND EXHAUST COVERS
- EXHAUST EXTENSION PLATE
- FLYWHEEL, STARTER MOTOR AND STATOR
- FUEL PUMP AND FUEL LINE ASSEMBLY
- GEAR HOUSING (DRIVE SHAFT)
- GEAR HOUSING (PROPELLER SHAFT)
- HYDRAULIC PUMP ASSEMBLY (METAL RESERVOIR)
- HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM COMPONENTS (WITH CIRCUIT BREAKER AND FUSE)
- POWER TRIM COMPONENTS (WITHOUT CIRCUIT BREAKER AND FUSE)
- POWER TRIM CYLINDER REPAIR KITS (USE WITH 76509A3)
- POWER TRIM CYLINDER REPAIR KITS (USE WITH 92194A14)
- PROPELLERS (RIGHT HAND ROTATION)
- STARTER MOTOR ASSEMBLY
- SWITCH BOX AND STARTER SOLENOID
- • SWIVEL BRACKET ASSEMBLY
- THROTTLE LEVER AND LINK RODS
- TOP COWL AND SUPPORT BRACKETS
- TRANSOM BRACKET
- TRIM CYLINDERS AND HYDRAULIC HOSES
- WIRING HARNESS AND IGNITION COIL
