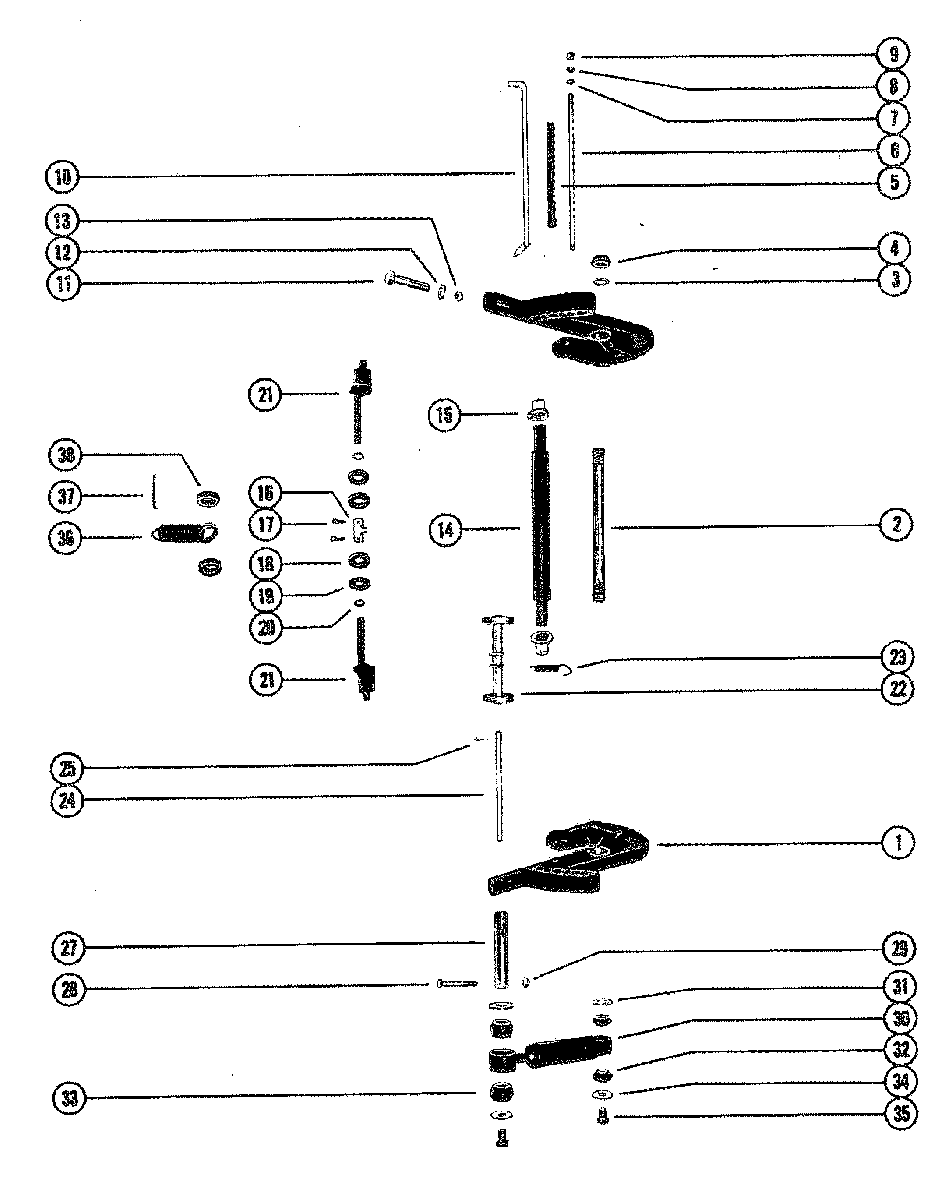

TRANSOM BRACKET для Mercury - 90 (6 CYL.) 8071020 AND UP
-
№АртикулНазвание
-
11496-8822A1 TRANSOM BRACKETTRANSOM BRACKET
-
289099 TILT TUBETILT TUBE
-
313-89297 WASHER, WAVE - TILT TUBEWASHER, WAVE - TILT TUBE
-
411-858869 NUT, TILT TUBENUT, TILT TUBE
-
523-87642 SPACER, TRANSOM BRACKET STUDSPACER, TRANSOM BRACKET STUD
-
616-87643 STUD
TRANSOM BRACKET - NOT USED WITH POWER TRIMSTUD
TRANSOM BRACKET - NOT USED WITH POWER TRIM -
712-36001 WASHER, TRANSOM BRACKET STUDWASHER, TRANSOM BRACKET STUD
-
813-26993 LOCKWASHER, TRANSOM BRACKET STUDLOCKWASHER, TRANSOM BRACKET STUD
-
911-28770 NUT, TRANSOM BRACKET STUDNUT, TRANSOM BRACKET STUD
-
1017-8M0026068 TILT LOCK PIN ASSEMBLY
NOT USED WITH POWER TRIMTILT LOCK PIN ASSEMBLY
NOT USED WITH POWER TRIM -
1110-89673 BOLT, TRANSOM BRACKET (5")BOLT, TRANSOM BRACKET (5")
-
1212-46765 WASHER, TRANSOM BRACKET BOLTWASHER, TRANSOM BRACKET BOLT
-
1311-82671112 NUT, TRANSOM BRACKET BOLTNUT, TRANSOM BRACKET BOLT
-
1110-677552 BOLT, TRANSOM BRACKET (6")BOLT, TRANSOM BRACKET (6")
-
1212-28421 WASHER, TRANSOM BRACKET BOLTWASHER, TRANSOM BRACKET BOLT
-
1311-91962 NUT, TRANSOM BRACKET BOLTNUT, TRANSOM BRACKET BOLT
-
1489116 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
1523-89117 BUSHING, UPPER SHOCK MOUNTING PINBUSHING, UPPER SHOCK MOUNTING PIN
-
1679659 COUPLING, TILT LOCKCOUPLING, TILT LOCK
-
1718-47959 COTTER PIN, TILT LOCKCOTTER PIN, TILT LOCK
-
1826-22734 OIL SEAL, SWIVEL BRACKET (TILT LOCK)OIL SEAL, SWIVEL BRACKET (TILT LOCK)
-
1912-76388 WASHER, TILT LOCKWASHER, TILT LOCK
-
2025-627021 "O" RING, TILT LOCK"O" RING, TILT LOCK
-
2189105 TILT LOCKTILT LOCK
-
2287431 REVERSE LOCK ASS'Y
NOT USED WITH POWER TRIM
UNITED STATES 5825802 AND BELOW
AUSTRALIA 8071019 AND BELOW
CANADA 7170897 AND BELOWREVERSE LOCK ASS'Y
NOT USED WITH POWER TRIM
UNITED STATES 5825802 AND BELOW
AUSTRALIA 8071019 AND BELOW
CANADA 7170897 AND BELOW -
2324-78203A2 SPRING ASS'Y
NOT USED WITH POWER TRIM
UNITED STATES 5825802 AND BELOW
AUSTRALIA 8071019 AND BELOW
CANADA 7170897 AND BELOWSPRING ASS'Y
NOT USED WITH POWER TRIM
UNITED STATES 5825802 AND BELOW
AUSTRALIA 8071019 AND BELOW
CANADA 7170897 AND BELOW -
2214664A3 REVERSE LOCK ASS'Y
NOT USED WITH POWER TRIM UNITED STATES 5825803 AND UP
AUSTRALIA 8071020 AND UP
CANADA 7170898 AND UPREVERSE LOCK ASS'Y
NOT USED WITH POWER TRIM UNITED STATES 5825803 AND UP
AUSTRALIA 8071020 AND UP
CANADA 7170898 AND UP -
2324-78203A2 SPRING ASSEMLBY
NOT USED WITH POWER TRIM UNITED STATES 5825803 AND UP
AUSTRALIA 8071020 AND UP
CANADA 7170898 AND UPSPRING ASSEMLBY
NOT USED WITH POWER TRIM UNITED STATES 5825803 AND UP
AUSTRALIA 8071020 AND UP
CANADA 7170898 AND UP -
2456349 SHAFT, REVERSE LOCK PIVOT
NOT USED WITH POWER TRIMSHAFT, REVERSE LOCK PIVOT
NOT USED WITH POWER TRIM -
2518-45882 COTTER PIN, LOCK TO SHAFT
NOT USED WITH POWER TRIMCOTTER PIN, LOCK TO SHAFT
NOT USED WITH POWER TRIM -
2755-28414 PIN, LOWER SHOCK MOUNTINGPIN, LOWER SHOCK MOUNTING
-
2810-21937 SCREW, LOWER SHOCK PIN (2")SCREW, LOWER SHOCK PIN (2")
-
2911-20184 NUT, LOWER SHOCK PIN SCREWNUT, LOWER SHOCK PIN SCREW
-
3055-58780A7 SHOCK ABSORBER
- NOT USED WITH POWER TRIMSHOCK ABSORBER
- NOT USED WITH POWER TRIM -
3112-28196 WASHER, UPPER BUSHING RETAINER (INNER)
- NOT USED WITH POWER TRIMWASHER, UPPER BUSHING RETAINER (INNER)
- NOT USED WITH POWER TRIM -
3223-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
- NOT USED WITH POWER TRIMBUSHING, RUBBER - SHOCK ABSORBER (UPPER)
- NOT USED WITH POWER TRIM -
3323-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
- NOT USED WITH POWER TRIMBUSHING, RUBBER - SHOCK ABSORBER (LOWER)
- NOT USED WITH POWER TRIM -
3412-69374 WASHER, UPPER/LOWER SHOCK PIN (LOWER)
- NOT USED WITH POWER TRIMWASHER, UPPER/LOWER SHOCK PIN (LOWER)
- NOT USED WITH POWER TRIM -
3510-69375 SCREW, UPPER AND LOWER SHOCK PIN
- NOT USED WITH POWER TRIMSCREW, UPPER AND LOWER SHOCK PIN
- NOT USED WITH POWER TRIM -
3624-94891 SPRING, COIL - SWIVEL BRACKET
- NOT USED WITH POWER TRIMSPRING, COIL - SWIVEL BRACKET
- NOT USED WITH POWER TRIM -
3717-38311 PIN, COIL SPRING MOUNTING
- NOT USED WITH POWER TRIMPIN, COIL SPRING MOUNTING
- NOT USED WITH POWER TRIM -
3823-28688 SPACER, RUBBER - COIL SPRING
- NOT USED WITH POWER TRIMSPACER, RUBBER - COIL SPRING
- NOT USED WITH POWER TRIM -
-27-85653A87 GASKET SETGASKET SET
