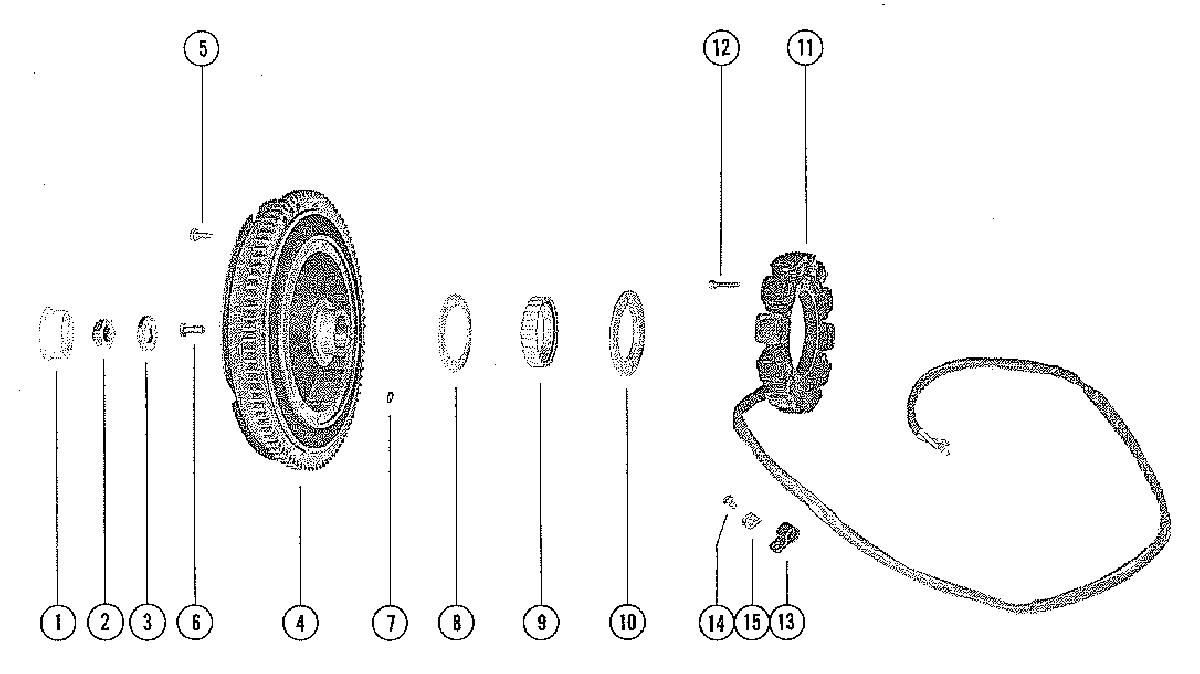

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 900, 90 7111698 THRU 7123762
-
№АртикулНазвание
-
119-45907 PLUG, FLYWHEEL PULLER THREADSPLUG, FLYWHEEL PULLER THREADS
-
211-52901 NUT, FLYWHEEL
(PART OF A-436-6646A2 CRANKSHAFT ASSEMBLY)NUT, FLYWHEEL
(PART OF A-436-6646A2 CRANKSHAFT ASSEMBLY) -
312-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
4225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
UNITED STATES 5160323 AND BELOW
AUSTRALIA 8056844 AND BELOW
CANADA 7123412 AND BELOWFLYWHEEL ASSEMBLY, COMPLETE
UNITED STATES 5160323 AND BELOW
AUSTRALIA 8056844 AND BELOW
CANADA 7123412 AND BELOW -
4225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
UNITED STATES 5160324 AND UP
AUSTRALIA 8056845 AND UP
CANADA 7123413 AND UPFLYWHEEL ASSEMBLY, COMPLETE
UNITED STATES 5160324 AND UP
AUSTRALIA 8056845 AND UP
CANADA 7123413 AND UP -
510-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
-
610-68997 SCREW, PLATE/HUB TO FLEX.PLATESCREW, PLATE/HUB TO FLEX.PLATE
-
717-26618 PIN, DOWEL - PULLEY TO FLYWHEELPIN, DOWEL - PULLEY TO FLYWHEEL
-
829788 FLANGE, FLYWHEEL PULLEYFLANGE, FLYWHEEL PULLEY
-
930306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
1029787 HUB, FLYWHEEL PULLEYHUB, FLYWHEEL PULLEY
-
11398-4793 STATOR, ALTERNATOR (NOT AS SHOWN)STATOR, ALTERNATOR (NOT AS SHOWN)
-
1210-75840 SCREW, STATOR TO UPPER END CAP (7/8")SCREW, STATOR TO UPPER END CAP (7/8")
-
1354-24871 CLIP, STATOR LEAD FASTENING (5/8")CLIP, STATOR LEAD FASTENING (5/8")
-
1354-22627 CLIP
STATOR/WIRING HARNESS LEADS FASTENING (1/2")CLIP
STATOR/WIRING HARNESS LEADS FASTENING (1/2") -
1410-62568 SCREW, STATOR LEAD CLIP FASTENING (3/8")SCREW, STATOR LEAD CLIP FASTENING (3/8")
-
158M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
