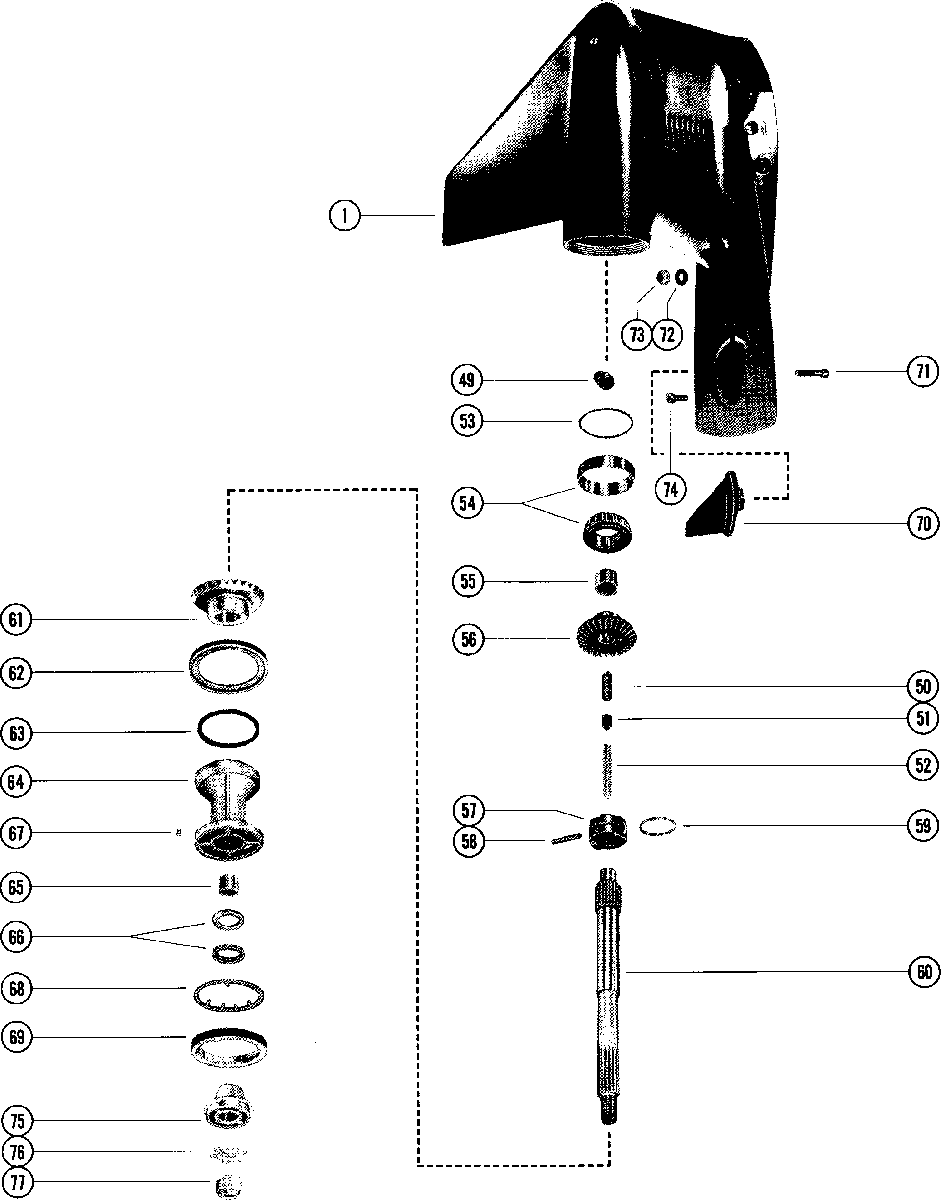

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 900, 90 7111698 THRU 7123762
-
№АртикулНазвание
-
-1655-7333T24 GEAR HOUSING ASS'Y, COMP.
THE ENCLOSED GEAR HOUSING INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON F12 AND F14
UNITED STATES 5160323 AND BELOW
AUSTRALIA 8056844 AND BELOW
CANADA 7123412 AND BELOWGEAR HOUSING ASS'Y, COMP.
THE ENCLOSED GEAR HOUSING INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON F12 AND F14
UNITED STATES 5160323 AND BELOW
AUSTRALIA 8056844 AND BELOW
CANADA 7123412 AND BELOW -
-1655-7333T24 GEAR HOUSING ASS'Y, COMP.
THE ENCLOSED GEAR HOUSING INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON F12 AND F14
UNITED STATES 5160324 AND UP
AUSTRALIA 8056845 AND UP
CANADA 7123413 AND UPGEAR HOUSING ASS'Y, COMP.
THE ENCLOSED GEAR HOUSING INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON F12 AND F14
UNITED STATES 5160324 AND UP
AUSTRALIA 8056845 AND UP
CANADA 7123413 AND UP -
11655-7333T23 GEAR HOUSING ASS'Y
UNITED STATES 5160323 AND BELOW
AUSTRALIA 8056844 AND BELOW
CANADA 7123412 AND BELOWGEAR HOUSING ASS'Y
UNITED STATES 5160323 AND BELOW
AUSTRALIA 8056844 AND BELOW
CANADA 7123412 AND BELOW -
11655-7333T23 GEAR HOUSING ASS'Y
UNITED STATES 5160324 AND UP
AUSTRALIA 8056845 AND UP
CANADA 7123413 AND UPGEAR HOUSING ASS'Y
UNITED STATES 5160324 AND UP
AUSTRALIA 8056845 AND UP
CANADA 7123413 AND UP -
49760394 CAM SHIFT
UNITED STATES 5160323 AND BELOW
AUSTRALIA 8056844 AND BELOW
CANADA 7123412 AND BELOWCAM SHIFT
UNITED STATES 5160323 AND BELOW
AUSTRALIA 8056844 AND BELOW
CANADA 7123412 AND BELOW -
49760394 CAM, SHIFT
UNITED STATES 5160324 AND UP
AUSTRALIA 8056845 AND UP
CANADA 7123413 AND UPCAM, SHIFT
UNITED STATES 5160324 AND UP
AUSTRALIA 8056845 AND UP
CANADA 7123413 AND UP -
5030625 FOLLOWER, CAMFOLLOWER, CAM
-
5130624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5224-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5315-30923A1 SHIM
BEARING OUTER RACE TO HOUSING (.002-3-5-10)SHIM
BEARING OUTER RACE TO HOUSING (.002-3-5-10) -
5431-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5531-30895T BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5643-68447T1 FORWARD GEARFORWARD GEAR
-
5752-822539T RATCHET, SLIDING GEARRATCHET, SLIDING GEAR
-
5817-8M0100263 PIN, CROSS - RATCHET TO PROPELLAR SHAFTPIN, CROSS - RATCHET TO PROPELLAR SHAFT
-
5924-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6044-93003 SHAFT, PROPELLERSHAFT, PROPELLER
-
6143-76250T REVERSE GEARREVERSE GEAR
-
6212-76358 WASHER
THRUST - BEARING CARRIER TO GEAR HOUSINGWASHER
THRUST - BEARING CARRIER TO GEAR HOUSING -
6325-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6441529T2 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6531-30956T BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
6626-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
6728-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
6814-52700 TAB WASHER,GEAR HOUSING COVERTAB WASHER,GEAR HOUSING COVER
-
6952699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7097-31640Q4 TRIM TAB, GEAR HOUSINGTRIM TAB, GEAR HOUSING
-
7110-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
-
7212-45176 WASHER
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS -
7311-34933 NUT
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS -
7410-65210 SCREW
GEAR HOUSING TO DRIVE SHAFT HOUSING (1")SCREW
GEAR HOUSING TO DRIVE SHAFT HOUSING (1") -
7513191Q01 THRUST HUB AND WASHER ASSEMBLYTHRUST HUB AND WASHER ASSEMBLY
-
7614-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
7711-52707Q1 NUT, PROPELLERNUT, PROPELLER
-
-27-85653A87 GASKET SETGASKET SET
