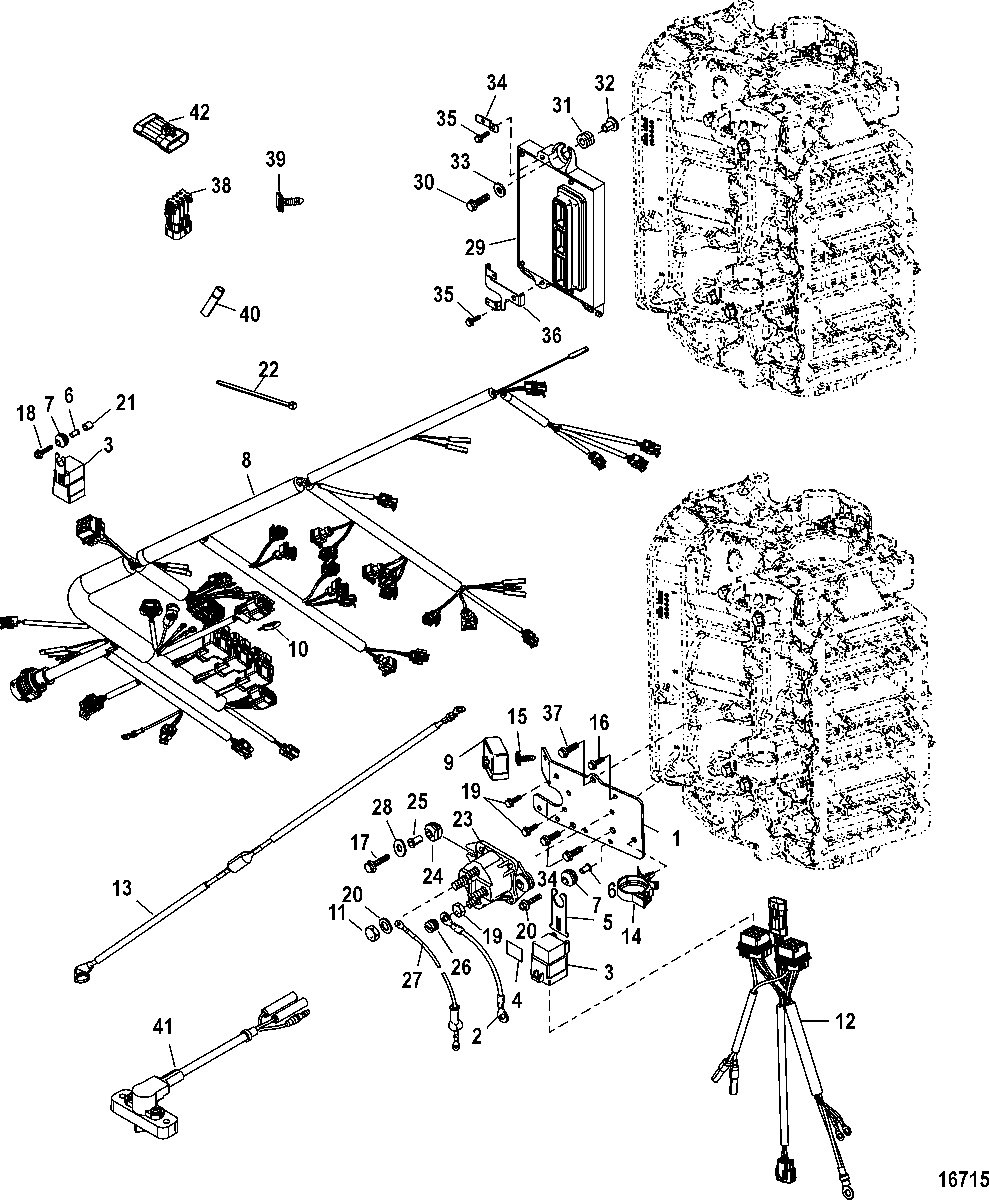

Electrical Plate Assembly для Mercury - V-135 DFI (2.5L) 1B227000 THRU 1B417701
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Electrical Plate Assembly-CompleteNOT SOLD SEPARATE, Electrical Plate Assembly-Complete
-
1833137F1 PLATEPLATE
-
284-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
-
3882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
4NSS NOT SOLD SEPARATE, Decal-Trim RelayNOT SOLD SEPARATE, Decal-Trim Relay
-
5828102 BRACKETBRACKET
-
623-818968 BUSHINGBUSHING
-
725-818967 GROMMETGROMMET
-
884-892926T01 HARNESS ASSEMBLY, EngineHARNESS ASSEMBLY, Engine
-
9858754 COVER, FuseCOVER, Fuse
-
-879346A49 HARNESS ASSEMBLY (DIRECT INJECTOR)HARNESS ASSEMBLY (DIRECT INJECTOR)
-
-879346A50 HARNESS ASSEMBLY (FUEL INJECTOR)HARNESS ASSEMBLY (FUEL INJECTOR)
-
-879346A41 HARNESS ASSEMBLY (TPS)HARNESS ASSEMBLY (TPS)
-
-879346A52 HARNESS ASSEMBLY, Encoder, Crank Position SensorHARNESS ASSEMBLY, Encoder, Crank Position Sensor
-
-84-881262A2 HARNESS ASSEMBLY, Alternator, AlternatorHARNESS ASSEMBLY, Alternator, Alternator
-
1088-832969T20 FUSE, Mini - Yellow - 20 Ampere
(20 AMP)FUSE, Mini - Yellow - 20 Ampere
(20 AMP) -
1088-832969T05 FUSE, Mini - Tan - 5 Ampere
(5 AMP)FUSE, Mini - Tan - 5 Ampere
(5 AMP) -
1111-68292 NUT, (.312-18)NUT, (.312-18)
-
1284-819514T21 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
1384-878231A03 HARNESS ASSEMBLY, Fuse - 100 AmpereHARNESS ASSEMBLY, Fuse - 100 Ampere
-
1454-858755 CLIP, (1.00)CLIP, (1.00)
-
1554-828991T CLIPCLIP
-
1610-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
1710-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
1810-82129135 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
1911-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2013-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2123-91912 BUSHINGBUSHING
-
2254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2389-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
2425-822179 GROMMETGROMMET
-
2523-818968 BUSHINGBUSHING
-
2611-813938 CAP NUT, (#10-32)CAP NUT, (#10-32)
-
2784-882829A1 CABLE ASSEMBLY, StarterCABLE ASSEMBLY, Starter
-
2812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2989790618T ECM, Engine Control Module
(135)ECM, Engine Control Module
(135) -
2989790619T ECM, Engine Control Module
(150)ECM, Engine Control Module
(150) -
2989790620T ECM, Engine Control Module
(175)ECM, Engine Control Module
(175) -
3010-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3123-856954 BUSHINGBUSHING
-
3225-834985 GROMMETGROMMET
-
3312-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
34858953 BRACKETBRACKET
-
3510-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
3654-891520001 CLIPCLIP
-
3710-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
38877613A02 CONNECTOR ASSEMBLY, Weather Cap 6 PinCONNECTOR ASSEMBLY, Weather Cap 6 Pin
-
3954-879962 CLIPCLIP
-
4013540 CAP, Female
(Tracker)CAP, Female
(Tracker) -
41859187A1 SENDER ASSEMBLY, Trim
(Non Tracker)SENDER ASSEMBLY, Trim
(Non Tracker) -
42830796A04 CONNECTOR ASSEMBLY, Weather Cap - MaleCONNECTOR ASSEMBLY, Weather Cap - Male
