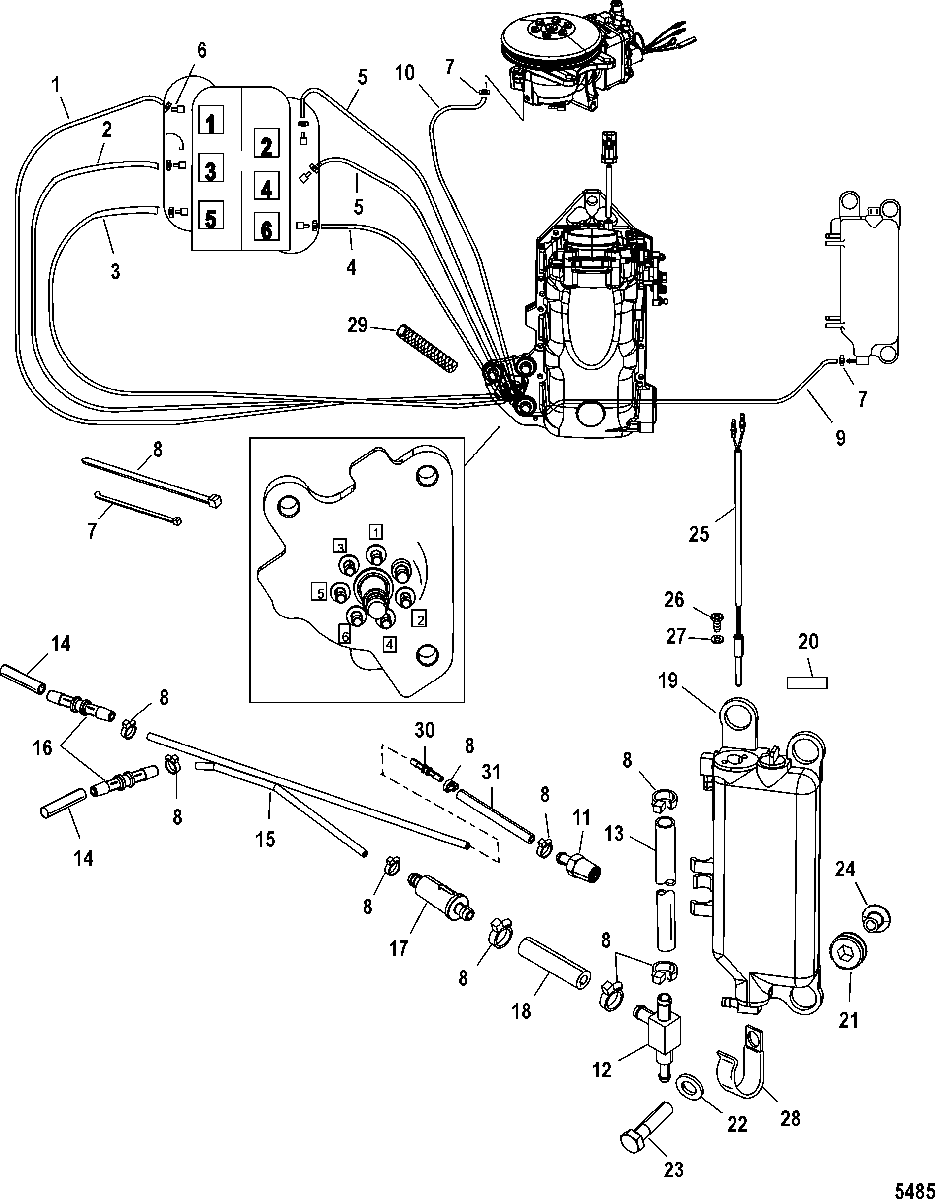

Oil Injection Components для Mercury - V-135 DFI (2.5L) 1B227000 THRU 1B417701
-
№АртикулНазвание
-
132-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 24 Inches)TUBING, (38.00 Inches Bulk) (Cut to 24 Inches)
-
232-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 18-1/2 Inches)TUBING, (38.00 Inches Bulk) (Cut to 18-1/2 Inches)
-
332-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 16-1/2 Inches)TUBING, (38.00 Inches Bulk) (Cut to 16-1/2 Inches)
-
432-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 24-1/2 Inches)TUBING, (38.00 Inches Bulk) (Cut to 24-1/2 Inches)
-
532-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 27 Inches)TUBING, (38.00 Inches Bulk) (Cut to 27 Inches)
-
621-858805 CHECK VALVECHECK VALVE
-
769355 TIE STRAP, (5.50 Inches)TIE STRAP, (5.50 Inches)
-
854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
856762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
932-892830053 HOSE, (24.00 Inches Braided)HOSE, (24.00 Inches Braided)
-
1032-8M0054213 HOSE, (40.00 Inches Bulk) (Cut to 32 Inches)HOSE, (40.00 Inches Bulk) (Cut to 32 Inches)
-
1121-8781051 CHECK VALVE, To BlockCHECK VALVE, To Block
-
1222-424254 FITTINGFITTING
-
1332-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 6 Inches)HOSE, (57.00 Inches Bulk) (Cut to 6 Inches)
-
14NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
1532-875289 HOSEHOSE
-
1622-858955 CONNECTORCONNECTOR
-
1735-875284T01 FILTER, Oil - In LineFILTER, Oil - In Line
-
1832-875283 HOSE, (2.00 Inches)HOSE, (2.00 Inches)
-
191200-8M0063190 RESERVOIR ASSEMBLYRESERVOIR ASSEMBLY
-
20NSS NOT SOLD SEPARATE, Decal-ReservoirNOT SOLD SEPARATE, Decal-Reservoir
-
2125-855362001 GROMMETGROMMET
-
2212-49436 WASHERWASHER
-
2310-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
2423-855364 BUSHINGBUSHING
-
2587-856156T02 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
2610-58376 SCREW, (.164-18 x .375)SCREW, (.164-18 x .375)
-
2712-72761 WASHER, (.203 x .562 x .060) Stainless SteelWASHER, (.203 x .562 x .060) Stainless Steel
-
2854-814634 CLAMPCLAMP
-
2932-883357 CONDUITCONDUIT
-
3022-858955 CONNECTORCONNECTOR
-
3132-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 4-3/4 Inches)HOSE, (57.00 Inches Bulk) (Cut to 4-3/4 Inches)
-
-879808T07 POWERHEAD ASSEMBLY
(135)POWERHEAD ASSEMBLY
(135) -
-879808T07 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-879809T07 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175)
