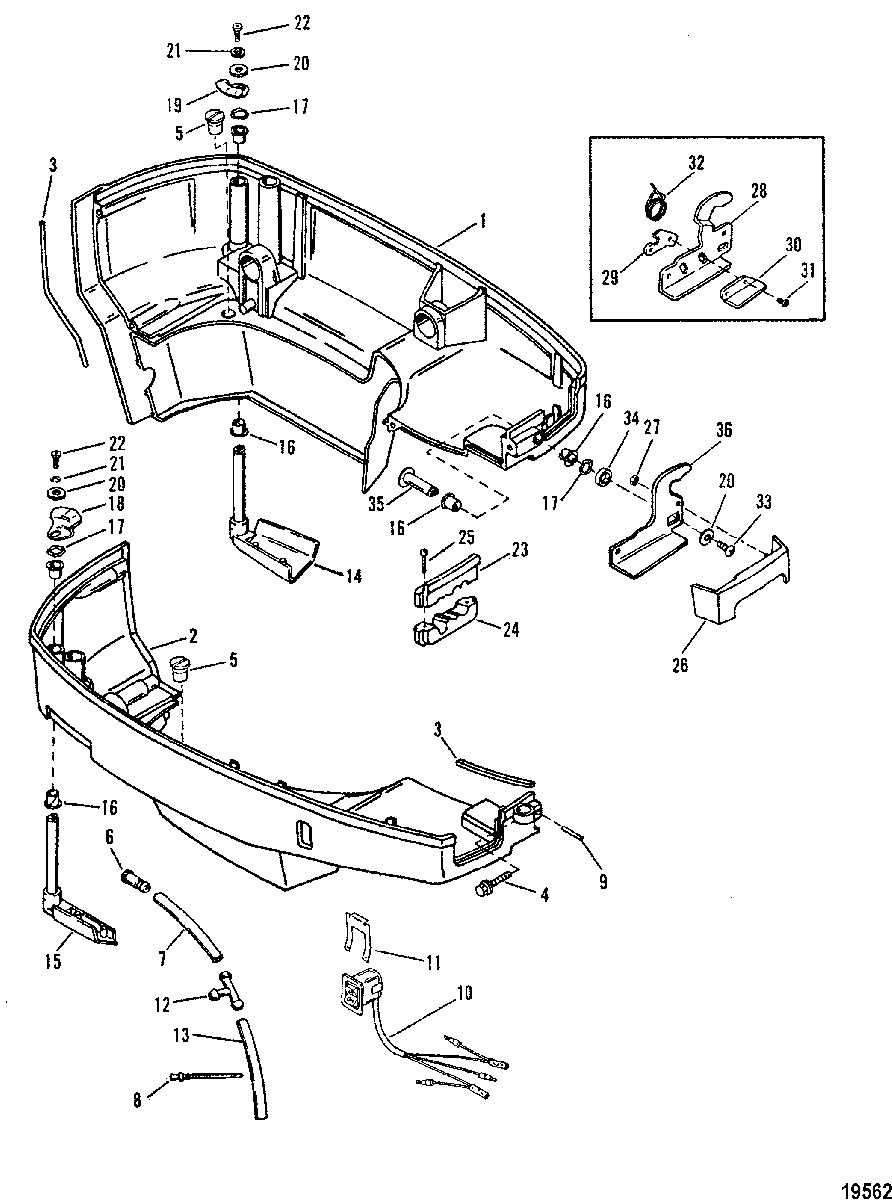

Bottom Cowl для Mercury - V-135 0C239553 THRU 0D081999

№

Артикул

Название
1

2197-9744A16 BOTTOM COWL ASSEMBLY (BLACK)
(PORT)

BOTTOM COWL ASSEMBLY (BLACK)
(PORT)

55 010 ₽
1

2197-9744A16 BOTTOM COWL ASSEMBLY , Gray
(PORT)

BOTTOM COWL ASSEMBLY , Gray
(PORT)

55 010 ₽
2

2197-9745A5 BOTTOM COWL ASSEMBLY (BLACK)
(STARBOARD)

BOTTOM COWL ASSEMBLY (BLACK)
(STARBOARD)

63 270 ₽
2

2197-9745A6 BOTTOM COWL ASSEMBLY (GRAY)
(STARBOARD)

BOTTOM COWL ASSEMBLY (GRAY)
(STARBOARD)

63 270 ₽
3

18701A1 SEAL KIT, BOTTOM COWLS-(PORT/STBD.)

SEAL KIT, BOTTOM COWLS-(PORT/STBD.)

0 ₽
4

10-18699 SCREW, (.250-20 x 1.320), COWL (STARBOARD)

SCREW, (.250-20 x 1.320), COWL (STARBOARD)

270 ₽
5

21-817519A1 CHECK VALVE, Drain (PORT/STBD.)

CHECK VALVE, Drain (PORT/STBD.)

1 030 ₽
6

22-813613 FITTING, TELLTALE-STARBOARD

FITTING, TELLTALE-STARBOARD

190 ₽
7

32-8M0108355 FUEL LINE, (57.00 Inches Bulk), TELLTALE-STARBOARD

FUEL LINE, (57.00 Inches Bulk), TELLTALE-STARBOARD

5 260 ₽
8

54-816311T CABLE TIE, (8.00 Inches) (STARBOARD)

CABLE TIE, (8.00 Inches) (STARBOARD)

40 ₽
9

17-815296 LOCK PIN (USE WHERE APPLICABLE)(STARBOARD)

LOCK PIN (USE WHERE APPLICABLE)(STARBOARD)

0 ₽
10

87-8M0042301 SWITCH ASSEMBLY

SWITCH ASSEMBLY

11 560 ₽
11

8M0032848 RETAINER

RETAINER

750 ₽
12

22-815914 T-FITTING, TELLTALE

T-FITTING, TELLTALE

1 710 ₽
13

32-77653101 HOSE, (24.500 Inches Bulk)

HOSE, (24.500 Inches Bulk)

5 500 ₽
14

19648A2 HANDLE ASSEMBLY (BLACK)(PORT)

HANDLE ASSEMBLY (BLACK)(PORT)

10 920 ₽
14

19648A2 HANDLE ASSEMBLY (GRAY)(PORT)

HANDLE ASSEMBLY (GRAY)(PORT)

10 920 ₽
15

19647A3 HANDLE ASSEMBLY (BLACK)(STARBOARD)

HANDLE ASSEMBLY (BLACK)(STARBOARD)

0 ₽
15

19647A3 HANDLE ASSEMBLY (GRAY)(STARBOARD)

HANDLE ASSEMBLY (GRAY)(STARBOARD)

0 ₽
16

23-65830 NYLINER

NYLINER

320 ₽
17

13-99611 WAVE WASHER

WAVE WASHER

140 ₽
18

19369 PAWL (STARBOARD)

PAWL (STARBOARD)

0 ₽
19

19370 PAWL (PORT)

PAWL (PORT)

0 ₽
20

12-69057 WASHER, (.281 x .734 x .063)

WASHER, (.281 x .734 x .063)

140 ₽
21

13-26992 LOCKWASHER, (.250)

LOCKWASHER, (.250)

70 ₽
22

10-73286 SCREW, (.250-20 x .500)

SCREW, (.250-20 x .500)

150 ₽
23

54-19749 CLAMP, UPPER (W/O POWER STEERING)

CLAMP, UPPER (W/O POWER STEERING)

380 ₽
23

54-197491 CLAMP, UPPER (WITH POWER STEERING)

CLAMP, UPPER (WITH POWER STEERING)

530 ₽
24

54-197481 CLAMP, LOWER

CLAMP, LOWER

1 010 ₽
25

10-92799 SCREW, (#10-16 x 1.12)

SCREW, (#10-16 x 1.12)

140 ₽
26

18872A1 COVER ASSEMBLY (BLACK)

COVER ASSEMBLY (BLACK)

0 ₽
26

18872A1 COVER ASSEMBLY (GRAY)

COVER ASSEMBLY (GRAY)

0 ₽
27

11-8136921 LOCK NUT

LOCK NUT

0 ₽
28

NSS NOT SOLD SEPARATE, Front Handle
(REPLACE WITH 813076A2)

NOT SOLD SEPARATE, Front Handle
(REPLACE WITH 813076A2)

0 ₽
29

NSS NOT SOLD SEPARATE, Handle
(REPLACE WITH 813076A2)

NOT SOLD SEPARATE, Handle
(REPLACE WITH 813076A2)

0 ₽
30

NSS NOT SOLD SEPARATE, Lock-Handle
(REPLACE WITH 813076A2)

NOT SOLD SEPARATE, Lock-Handle
(REPLACE WITH 813076A2)

0 ₽
31

NSS NOT SOLD SEPARATE, Screw
(REPLACE WITH 813076A2)

NOT SOLD SEPARATE, Screw
(REPLACE WITH 813076A2)

0 ₽
32

NSS NOT SOLD SEPARATE, Spring
(REPLACE WITH 813076A2)

NOT SOLD SEPARATE, Spring
(REPLACE WITH 813076A2)

0 ₽
33

10-18192 SCREW, (.25-20 x .62)

SCREW, (.25-20 x .62)

0 ₽
34

23-19666 BUSHING

BUSHING

0 ₽
35

18727 ROD

ROD

0 ₽
36

8130764 FRONT HANDLE

FRONT HANDLE

4 660 ₽
