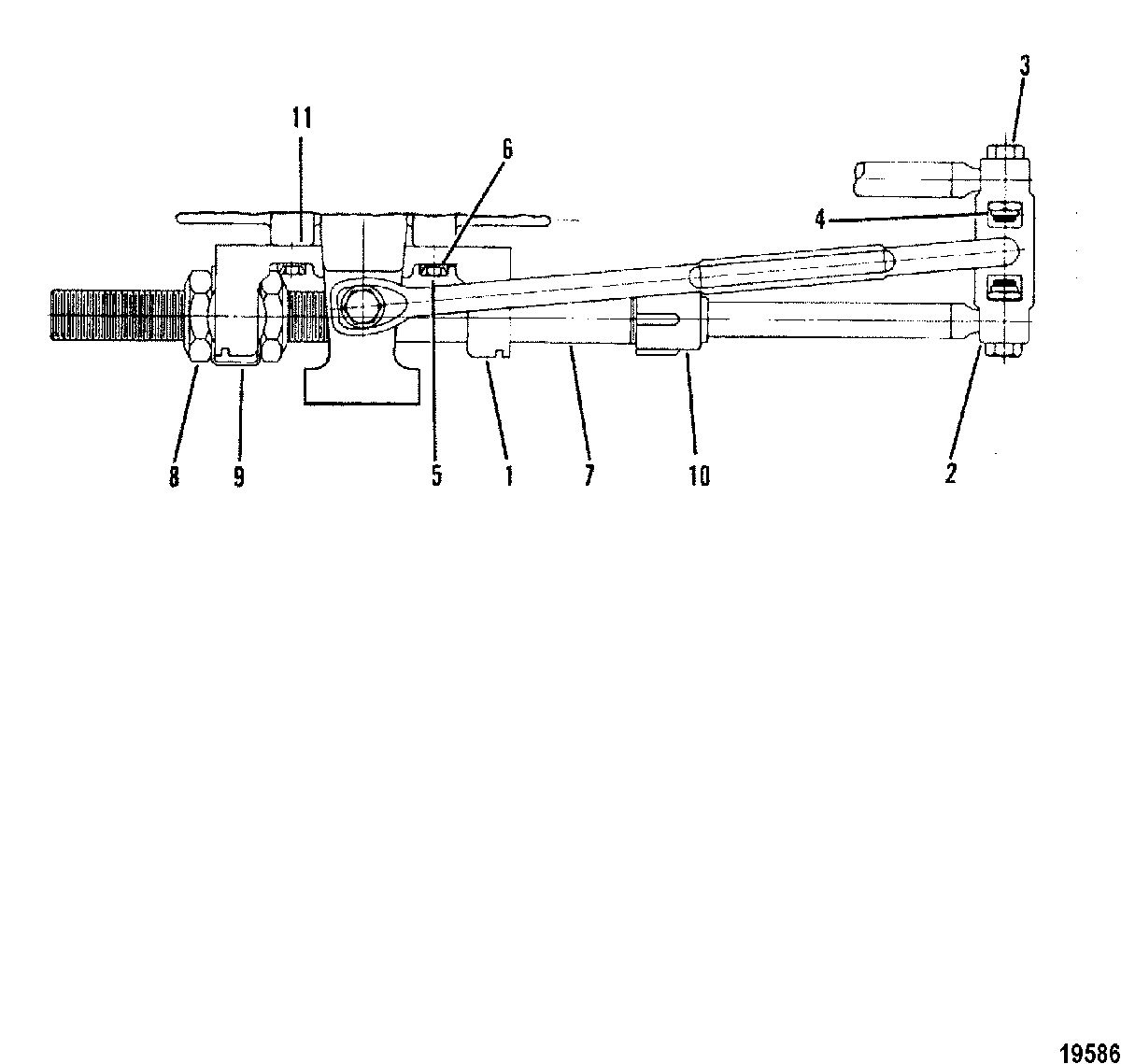

Steering Attaching Kit(XR4/ Magnum II) для Mercury - V-135 0C239553 THRU 0D081999
-
№АртикулНазвание
-
-92876A8 STEERING ATTACHING KIT (SINGLE)STEERING ATTACHING KIT (SINGLE)
-
141055 MOUNT, STEERING TUBEMOUNT, STEERING TUBE
-
2850791T COUPLING, STEERING LINKCOUPLING, STEERING LINK
-
310-73732 SCREW, (.375-24 x 1.120), COUPLINGSCREW, (.375-24 x 1.120), COUPLING
-
411-8M0042636 NUT, (.375-24), COUPLING SCREWNUT, (.375-24), COUPLING SCREW
-
510-59702 SCREW, (.250-28 x .875), MOUNT ATTACHINGSCREW, (.250-28 x .875), MOUNT ATTACHING
-
688404 TAB WASHER, MOUNT SCREWTAB WASHER, MOUNT SCREW
-
771565 TUBE-CABLE GUIDE, STEERINGTUBE-CABLE GUIDE, STEERING
-
811-8M0041651 NUT, (.875-14), STEERING TUBENUT, (.875-14), STEERING TUBE
-
914-42100 TAB WASHER, STEERING TUBE NUTTAB WASHER, STEERING TUBE NUT
-
1019624A1 SEAL KITSEAL KIT
-
1142101 SPACERSPACER
