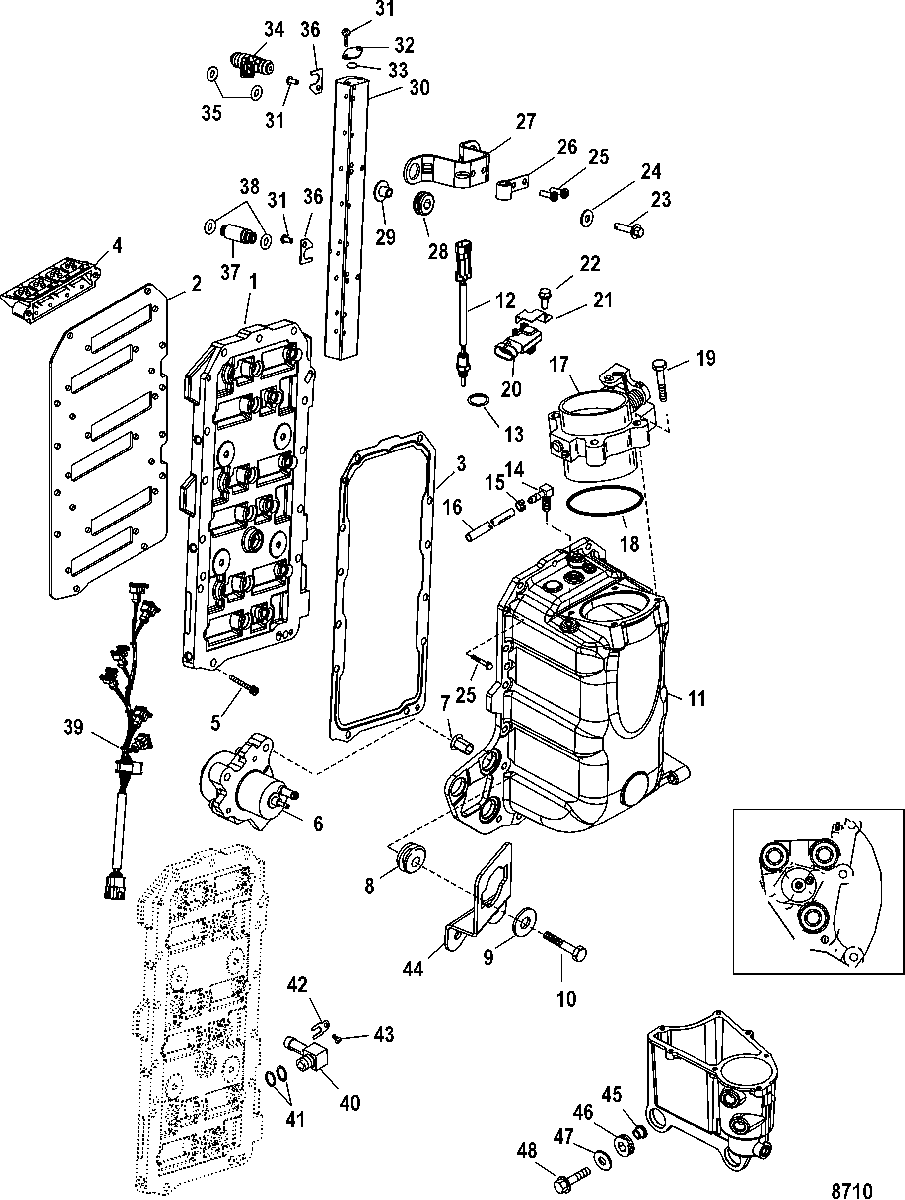

Air Handler Components для Mercury - V-150 EFI (2.5L) 1B227000 & Up
-
№АртикулНазвание
-
-896552T02 AIR HANDLER ASSEMBLYAIR HANDLER ASSEMBLY
-
1883955T1 ADAPTOR PLATE KITADAPTOR PLATE KIT
-
227-146974 GASKETGASKET
-
327-8500581 GASKETGASKET
-
4855952T3 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
510-55715 SCREW, (.250-20 x .880)SCREW, (.250-20 x .880)
-
68M0128081 PUMP ASSEMBLYPUMP ASSEMBLY
-
723-855364 BUSHINGBUSHING
-
825-855362001 GROMMETGROMMET
-
912-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
1010-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
11883954T1 PLENUM KIT, AirPLENUM KIT, Air
-
12885342002 SENSOR ASSEMBLY
SN# 1B417701 & BelowSENSOR ASSEMBLY
SN# 1B417701 & Below -
12885342002 SENSOR ASSEMBLY
SN# 1B417702 & UpSENSOR ASSEMBLY
SN# 1B417702 & Up -
1325-896699 O-RING, (.351 x .072)
SN# 1B417701 & BelowO-RING, (.351 x .072)
SN# 1B417701 & Below -
1325-896699 O-RING, (1.78 mm x .08 mm)
SN# 1B417702 & UpO-RING, (1.78 mm x .08 mm)
SN# 1B417702 & Up -
1422-884588 FITTINGFITTING
-
1556762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
1632-8M0054213 HOSE, (40.00 Inches Bulk) (Cut to 34 Inches)HOSE, (40.00 Inches Bulk) (Cut to 34 Inches)
-
17883956T1 THROTTLE BODY KITTHROTTLE BODY KIT
-
1825-855423 O-RINGO-RING
-
1910-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
20854445 SENSOR, MAPSENSOR, MAP
-
21884522 BRACKET, MAP SensorBRACKET, MAP Sensor
-
2210-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2310-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2412-4002316 WASHERWASHER
-
2510-883942 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
2654-883941 CLAMPCLAMP
-
27883926 BRACKETBRACKET
-
2825-834985 GROMMETGROMMET
-
2923-822003 BUSHINGBUSHING
-
30883953T1 FUEL RAILFUEL RAIL
-
3110-840118 SCREW, (#8-32 x .380)SCREW, (#8-32 x .380)
-
32840422A1 PLATE KITPLATE KIT
-
3325-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
34840481T01 INJECTOR ASSEMBLYINJECTOR ASSEMBLY
-
35NSS NOT SOLD SEPARATE, O RingNOT SOLD SEPARATE, O Ring
-
368833821 RETAINERRETAINER
-
378832151 TUBETUBE
-
3825-883355 O-RINGO-RING
-
3984-840482A3 HARNESS ASSEMBLY, InjectorHARNESS ASSEMBLY, Injector
-
4022-883940 FITTINGFITTING
-
4125-20385 O-RING, (.239 x .070)O-RING, (.239 x .070)
-
42883382 RETAINERRETAINER
-
4310-883376 SCREW, (#10-24 x .375)SCREW, (#10-24 x .375)
-
44892296 BRACKETBRACKET
-
4523-855364 BUSHINGBUSHING
-
4625-855362001 GROMMETGROMMET
-
4712-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
4810-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
-27-8M0046715 GASKET SETGASKET SET
-
-883511T04 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-883600T04 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
