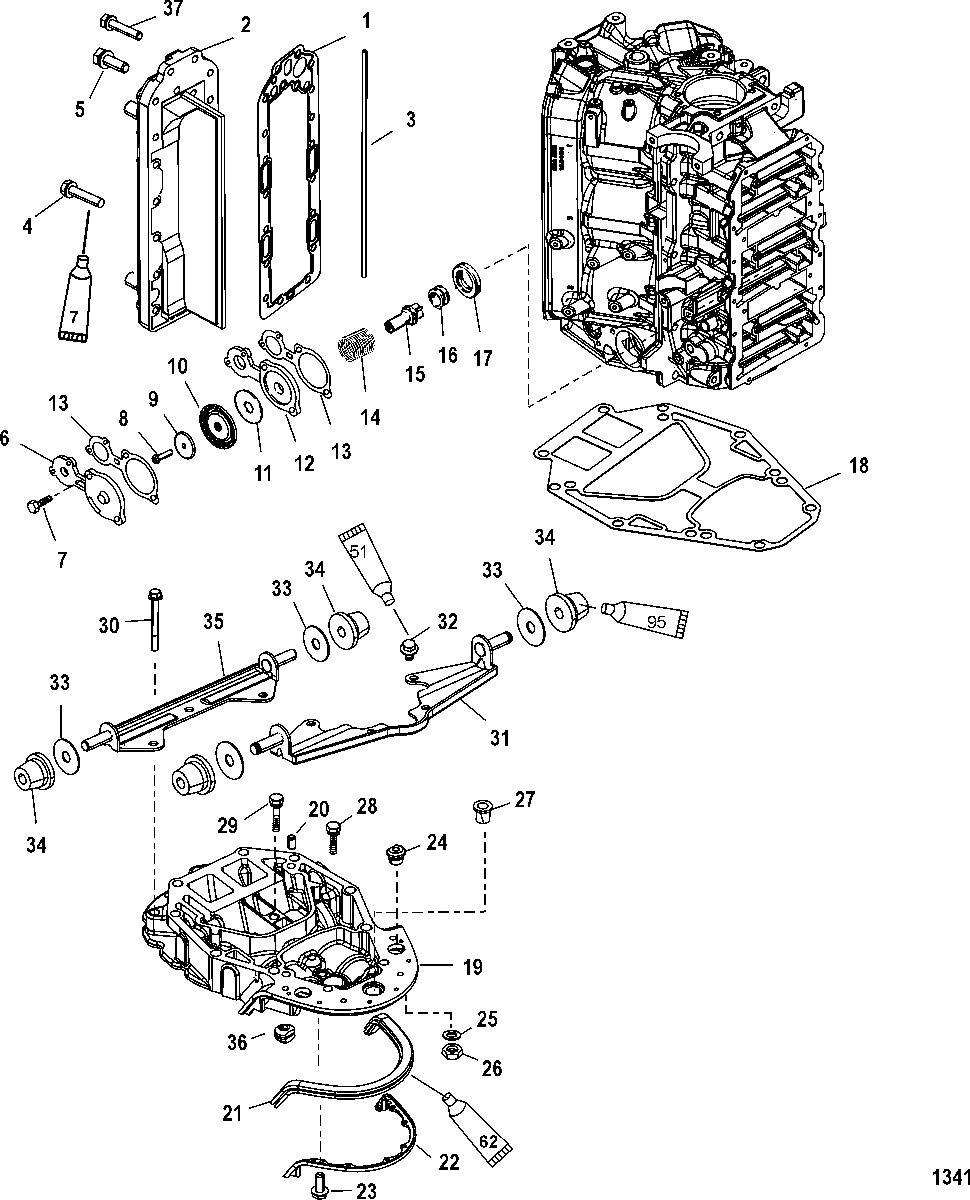

Exhaust Manifold and Exhaust Plate для Mercury - V-150 EFI (2.5L) 1B227000 & Up
-
№АртикулНазвание
-
127-190506 GASKETGASKET
-
2828343A05 PLATE KIT, Exhaust Divider
SN# 1B417701 & BelowPLATE KIT, Exhaust Divider
SN# 1B417701 & Below -
2828343A05 PLATE ASSEMBLY, Exhaust Divider
SN# 1B417702 & UpPLATE ASSEMBLY, Exhaust Divider
SN# 1B417702 & Up -
326-814754 SEAL, (12.50 Inches)SEAL, (12.50 Inches)
-
410-8263561 SCREW AND WASHER, (.312-18 x 1.500)SCREW AND WASHER, (.312-18 x 1.500)
-
510-881190 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
68M0039767 COVER, Relief ValveCOVER, Relief Valve
-
710-31984 SCREW, (.312-18 x 1.375)SCREW, (.312-18 x 1.375)
-
810-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
912-76451 WASHERWASHER
-
10144791 DIAPHRAGMDIAPHRAGM
-
1116496 DEFLECTOR, WaterDEFLECTOR, Water
-
1216497A1 PLATEPLATE
-
1327-78690002 GASKETGASKET
-
1424-42996 SPRING, (Stainless Steel)SPRING, (Stainless Steel)
-
1514480 POPPETPOPPET
-
1625-64872 GROMMETGROMMET
-
1765848 CARRIERCARRIER
-
1827-991764 GASKETGASKET
-
1918260T2 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
2017-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
218M0043164 SEALSEAL
-
22680101 BRACKETBRACKET
-
2310-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2425-19565002 GROMMETGROMMET
-
2512-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
2611-69254 NUTNUT
-
2723-27132 BUSHINGBUSHING
-
2810-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
2910-68783 SCREW, (.312-18 x 2.50)SCREW, (.312-18 x 2.50)
-
3010-898833 SCREW, (.375-16 x 3.50)
SN# 1B417701 & BelowSCREW, (.375-16 x 3.50)
SN# 1B417701 & Below -
3010-898833 SCREW, (.375-16 x 3.500)
SN# 1B417702 & UpSCREW, (.375-16 x 3.500)
SN# 1B417702 & Up -
31812905T BRACKET ASSEMBLY, Front
SN# 1B417702 & BelowBRACKET ASSEMBLY, Front
SN# 1B417702 & Below -
31812905T BRACKET, Front
SN# 1B417702 & UpBRACKET, Front
SN# 1B417702 & Up -
3210-8055571 SCREW, (.3125-18 x .50)SCREW, (.3125-18 x .50)
-
3312-187031 WASHERWASHER
-
3425-18778001 GROMMETGROMMET
-
3518578T09 BRACKET ASSEMBLY, Rear
SN# 1B417701 & BelowBRACKET ASSEMBLY, Rear
SN# 1B417701 & Below -
3518578T09 BRACKET ASSEMBLY, Rear
SN# 1B417702 & UpBRACKET ASSEMBLY, Rear
SN# 1B417702 & Up -
3625-12602002 GROMMETGROMMET
-
3710-881892 SCREW, (.312-18 x 1.750)SCREW, (.312-18 x 1.750)
-
-27-8M0046715 GASKET SETGASKET SET
-
-883511T04 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-883600T04 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
