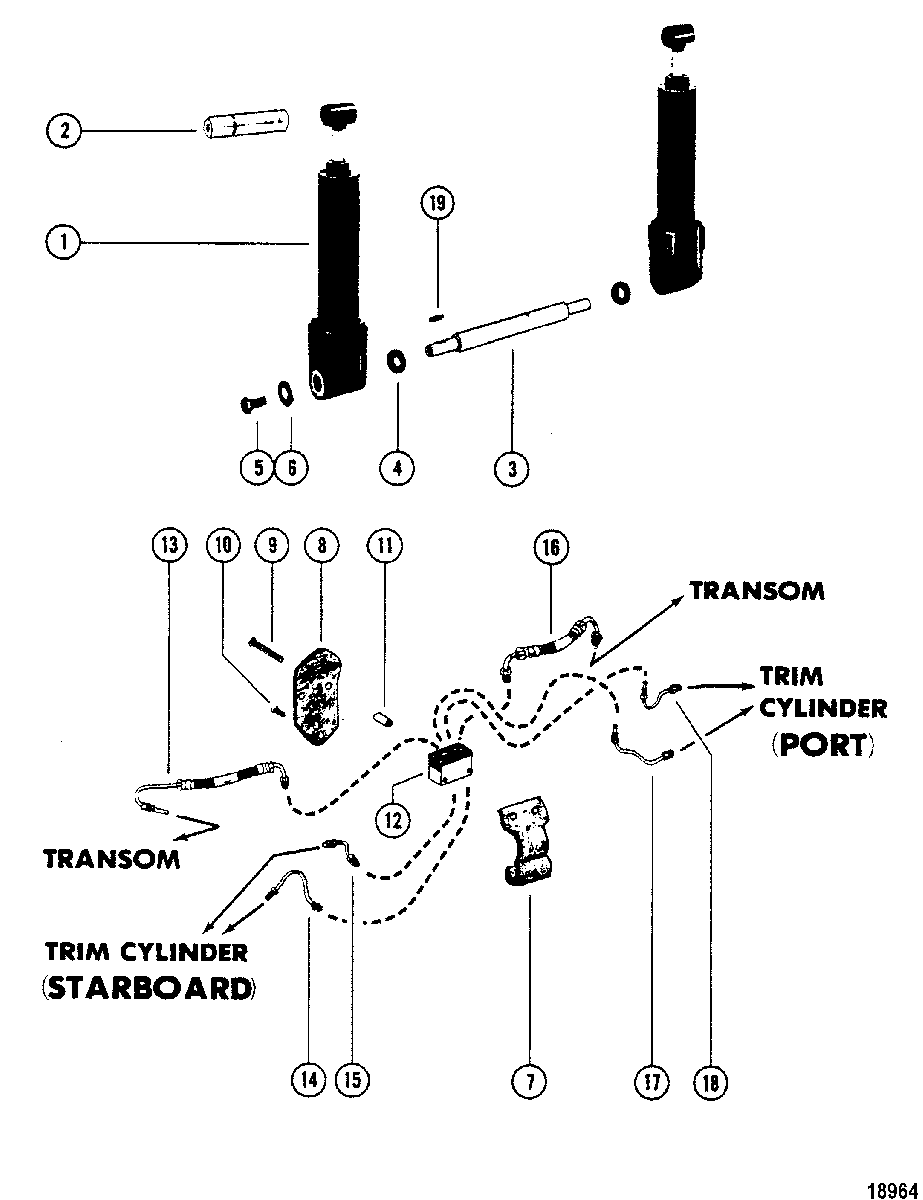

Trim Cylinder(S/N-USA-5503246/AUS-8062734 and Below) для Mercury - V-150-XR-2 4868998 THRU 0A904645
-
№АртикулНазвание
-
179114A4 TRIM CYLINDER ASSEMBLYTRIM CYLINDER ASSEMBLY
-
267694 PINPIN
-
367701 SHAFTSHAFT
-
412-67745 WASHERWASHER
-
510-67756 SCREWSCREW
-
6NLA No Longer Available, WasherNo Longer Available, Washer
-
767698T SPACERSPACER
-
867700 COVERCOVER
-
910-35049 SCREW, (.250-20 x 2.75)SCREW, (.250-20 x 2.75)
-
1010-20665 SCREW, (.190-24 x .50)SCREW, (.190-24 x .50)
-
1123-67671 SPACERSPACER
-
1267696 MANIFOLDMANIFOLD
-
1332-67683 TUBE, Hydraulic (STARBOARD)TUBE, Hydraulic (STARBOARD)
-
1432-67681 TUBE, Hydraulic (STARBOARD - DOWN)TUBE, Hydraulic (STARBOARD - DOWN)
-
1532-67678 TUBE, Hydraulic (STARBOARD - UP)TUBE, Hydraulic (STARBOARD - UP)
-
1632-67682 TUBE, Hydraulic (PORT)TUBE, Hydraulic (PORT)
-
1732-67680 TUBE, Hydraulic (PORT-UP)TUBE, Hydraulic (PORT-UP)
-
1832-67679 TUBE, Hydraulic (PORT - DOWN)TUBE, Hydraulic (PORT - DOWN)
-
1928-20094 KEY, WoodruffKEY, Woodruff
