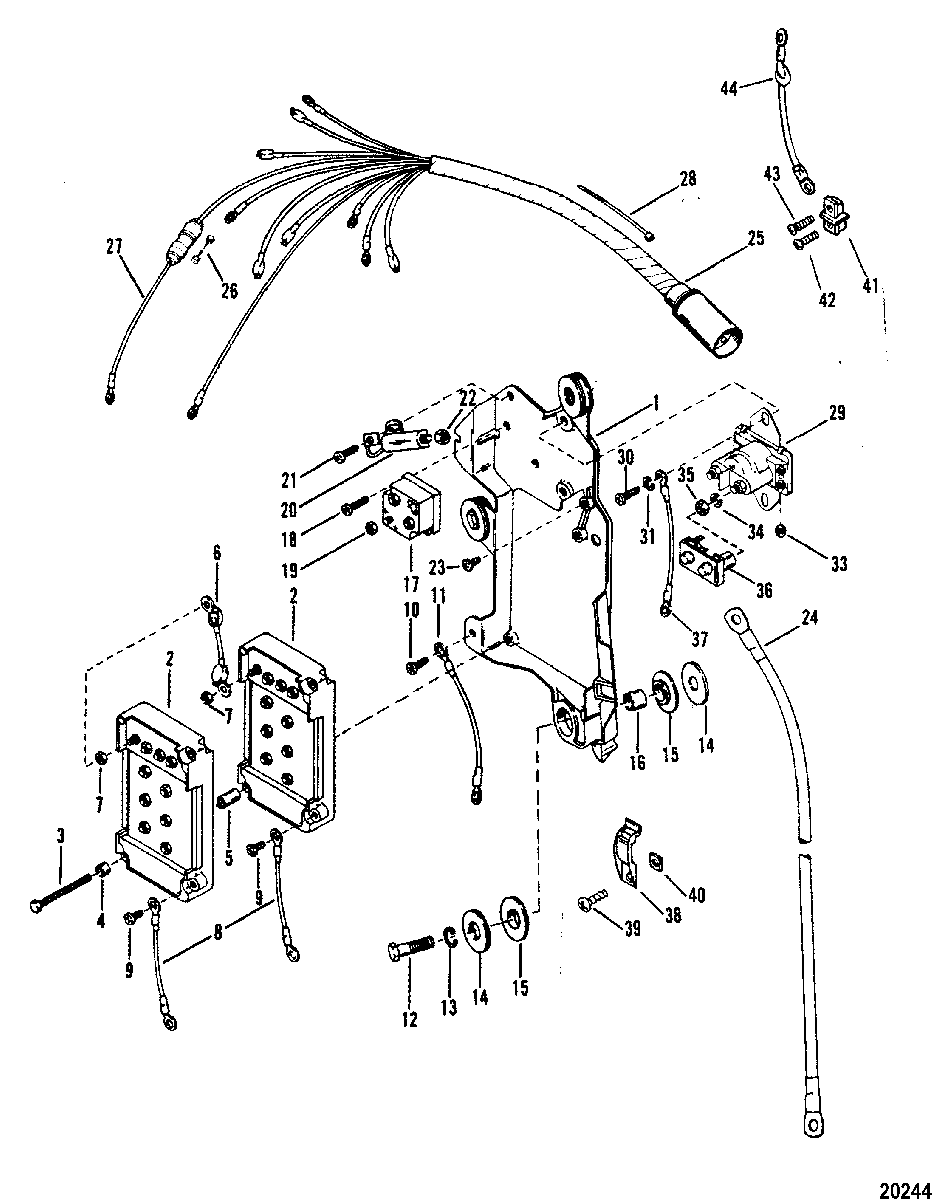

Wiring Harness, Starter Solenoid and Rectifier для Mercury - V-150-XR-2 4868998 THRU 0A904645
-
№АртикулНазвание
-
1434292 PLATEPLATE
-
2332-7778A12 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
310-13669 SCREW, (#12-24 x 2.00)SCREW, (#12-24 x 2.00)
-
310-90815 SCREW, (#12-24 x 2.250)SCREW, (#12-24 x 2.250)
-
423-94304 SPACERSPACER
-
523-94453 BUSHINGBUSHING
-
684-62310A2 CABLE ASSEMBLYCABLE ASSEMBLY
-
711-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
884-60871A10 WIRE ASSEMBLYWIRE ASSEMBLY
-
910-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
1010-38055 SCREW, (.190-32 x .620)SCREW, (.190-32 x .620)
-
1184-65999A3 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
1210-60411 SCREW, (1.25)SCREW, (1.25)
-
1313-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1412-36042 WASHERWASHER
-
1512-67264 WASHER, (Rubber)WASHER, (Rubber)
-
1623-67268 BUSHINGBUSHING
-
178M0058226 RECTIFIERRECTIFIER
-
1810-38055 SCREW, (.190-32 x .620)SCREW, (.190-32 x .620)
-
1911-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2058124A21 MERCURY SWITCH
(LEADS ATTACHED)MERCURY SWITCH
(LEADS ATTACHED) -
2087-33386A3 SWITCH ASSEMLBY
(LEADS NOT ATTACHED)SWITCH ASSEMLBY
(LEADS NOT ATTACHED) -
2110-38055 SCREW, (.190-32 x .620)SCREW, (.190-32 x .620)
-
2211-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2310-22028 SCREW, (#10-32 x .50)SCREW, (#10-32 x .50)
-
2484-88439A14 CABLE ASSEMBLY, Battery - Positive
(POSITIVE)CABLE ASSEMBLY, Battery - Positive
(POSITIVE) -
2484-88439A2 CABLE ASSEMBLY, Battery - Negative
(NEGATIVE)CABLE ASSEMBLY, Battery - Negative
(NEGATIVE) -
2584-87294A1 HARNESS ASSEMBLY, Engine Wiring
SN# 5432021 & BelowHARNESS ASSEMBLY, Engine Wiring
SN# 5432021 & Below -
2584-96220A4 HARNESS ASSEMBLY
SN# 5432022 & UpHARNESS ASSEMBLY
SN# 5432022 & Up -
2688-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
2784-95084A2 CABLE ASSEMBLYCABLE ASSEMBLY
-
2861990 TIE STRAP, (14.00 Inches)TIE STRAP, (14.00 Inches)
-
2989-853654A1 SOLENOID ASSEMBLY, Starter
SN# ME-6042945/MA-6038680 & BelowSOLENOID ASSEMBLY, Starter
SN# ME-6042945/MA-6038680 & Below -
2989-96054T SOLENOID ASSEMBLY, Starter
SN# ME-6042946/MA-6038681 & UpSOLENOID ASSEMBLY, Starter
SN# ME-6042946/MA-6038681 & Up -
3010-20540 SCREWSCREW
-
3113-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3311-68219 NUT, (#10-32) Stainless Steel
SN# ME-6042945/MA-6038680 & BelowNUT, (#10-32) Stainless Steel
SN# ME-6042945/MA-6038680 & Below -
3311-26419 NUT, (#8-32) Brass
SN# ME-6042946/MA-6038681 & UpNUT, (#8-32) Brass
SN# ME-6042946/MA-6038681 & Up -
3413-26993 LOCKWASHER, (.312)
SN# ME-6042945/MA-6038680 & BelowLOCKWASHER, (.312)
SN# ME-6042945/MA-6038680 & Below -
3413-26992 LOCKWASHER, (.250) Stainless Steel
SN# ME-6042946/MA-6038681 & UpLOCKWASHER, (.250) Stainless Steel
SN# ME-6042946/MA-6038681 & Up -
3511-68292 NUT, (.312-18)
SN# ME-6042945/MA-6038680 & BelowNUT, (.312-18)
SN# ME-6042945/MA-6038680 & Below -
3511-94330 NUT, (.250-20) Brass
SN# ME-6042946/MA-6038681 & UpNUT, (.250-20) Brass
SN# ME-6042946/MA-6038681 & Up -
3685-97861 INSULATOR
SN# ME-6443213/MA-6443818 & UpINSULATOR
SN# ME-6443213/MA-6443818 & Up -
3784-65999A2 CABLE ASSEMBLY, Black
( 4")CABLE ASSEMBLY, Black
( 4") -
3784-60466A10 CABLE ASSEMBLY, Ground
(BLACK - 6")CABLE ASSEMBLY, Ground
(BLACK - 6") -
3867237 RETAINER
(Use where Applicable)RETAINER
(Use where Applicable) -
3910-69570 SCREW, (#10-16 x .750)
(Use where Applicable)SCREW, (#10-16 x .750)
(Use where Applicable) -
4025-8M0079730 GROMMET
(Use where Applicable)GROMMET
(Use where Applicable) -
4186-66986 TERMINAL BLOCK
(Use where Applicable)TERMINAL BLOCK
(Use where Applicable) -
4210-22523 SCREW, (.190-32 x .75)
(Use where Applicable)SCREW, (.190-32 x .75)
(Use where Applicable) -
4310-22028 SCREW, (#10-32 x .50)
(Use where Applicable)SCREW, (#10-32 x .50)
(Use where Applicable) -
4484-62189A1 WIRE ASSEMBLY (ORANGE)
(Use where Applicable)WIRE ASSEMBLY (ORANGE)
(Use where Applicable)
