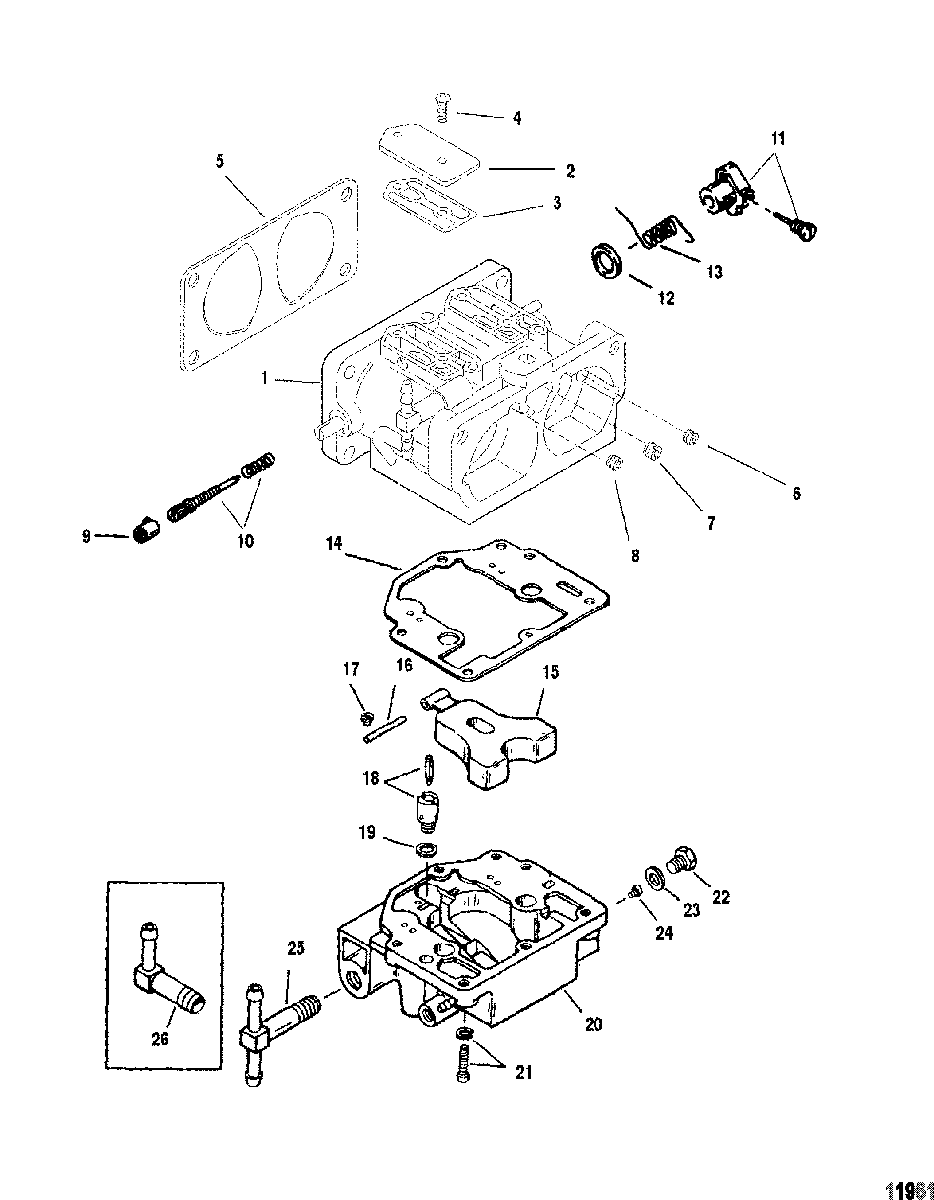

Carburetor для Mercury - V-150 0G303046 THRU 0G760299
-
№АртикулНазвание
-
13326-828272T37 CARBURETOR, Top
(135 - WMV-1)CARBURETOR, Top
(135 - WMV-1) -
13326-828272T38 CARBURETOR, Center
(135 - WMV-1)CARBURETOR, Center
(135 - WMV-1) -
13326-828272T39 CARBURETOR, Bottom
(135 - WMV-1)CARBURETOR, Bottom
(135 - WMV-1) -
13326-828272T40 CARBURETOR, Top
(150 - WMMV-2)CARBURETOR, Top
(150 - WMMV-2) -
13326-828272T41 CARBURETOR, Center
(150 - WMMV-2)CARBURETOR, Center
(150 - WMMV-2) -
13326-828272T42 CARBURETOR, Bottom
(150 - WMMV-2)CARBURETOR, Bottom
(150 - WMMV-2) -
13326-828272T43 CARBURETOR, Top
(XR6/Magnum III WMV-3)CARBURETOR, Top
(XR6/Magnum III WMV-3) -
13326-828272T44 CARBURETOR, Center
(XR6/Magnum III WMV-3)CARBURETOR, Center
(XR6/Magnum III WMV-3) -
13326-828272A45 CARBURETOR, Bottom
(XR6/Magnum III WMV-3)CARBURETOR, Bottom
(XR6/Magnum III WMV-3) -
13326-828272T46 CARBURETOR, Top
(175 - WMV-4)CARBURETOR, Top
(175 - WMV-4) -
13326-828272T47 CARBURETOR, Center
(175 - WMV-4)CARBURETOR, Center
(175 - WMV-4) -
13326-828272T48 CARBURETOR, Bottom
(175 - WMV-4)CARBURETOR, Bottom
(175 - WMV-4) -
13326-828272T49 CARBURETOR, Top
(200 - WMV-5)CARBURETOR, Top
(200 - WMV-5) -
13326-828272T50 CARBURETOR, Center
(200 - WMV-5)CARBURETOR, Center
(200 - WMV-5) -
13326-828272T51 CARBURETOR, Bottom
(200 - WMV-5)CARBURETOR, Bottom
(200 - WMV-5) -
13326-828272T37 CARBURETOR, Top
(135 - WMV-1A)CARBURETOR, Top
(135 - WMV-1A) -
13326-828272T38 CARBURETOR, Center
(135 - WMV-1A)CARBURETOR, Center
(135 - WMV-1A) -
13326-828272T39 CARBURETOR, Bottom
(135 - WMV-1A)CARBURETOR, Bottom
(135 - WMV-1A) -
13326-828272T40 CARBURETOR, Top
(150 - WMMV-2A)CARBURETOR, Top
(150 - WMMV-2A) -
13326-828272T41 CARBURETOR, Center
(150 - WMMV-2A)CARBURETOR, Center
(150 - WMMV-2A) -
13326-828272T42 CARBURETOR, Bottom
(150 - WMMV-2A)CARBURETOR, Bottom
(150 - WMMV-2A) -
13326-828272T43 CARBURETOR, Top
(XR6/Magnum III WMV-3A)CARBURETOR, Top
(XR6/Magnum III WMV-3A) -
13326-828272T44 CARBURETOR, Center
(XR6/Magnum III WMV-3A)CARBURETOR, Center
(XR6/Magnum III WMV-3A) -
13326-828272A45 CARBURETOR, Bottom
(XR6/Magnum III WMV-3A)CARBURETOR, Bottom
(XR6/Magnum III WMV-3A) -
13326-828272T46 CARBURETOR, Top
(175 - WMV-4A)CARBURETOR, Top
(175 - WMV-4A) -
13326-828272T47 CARBURETOR, Center
(175 - WMV-4A)CARBURETOR, Center
(175 - WMV-4A) -
13326-828272T48 CARBURETOR, Bottom
(175 - WMV-4A)CARBURETOR, Bottom
(175 - WMV-4A) -
13326-828272T49 CARBURETOR, Top
(200 - WMV-5A)CARBURETOR, Top
(200 - WMV-5A) -
13326-828272T50 CARBURETOR, Center
(200 - WMV-5A)CARBURETOR, Center
(200 - WMV-5A) -
13326-828272T51 CARBURETOR, Bottom
(200 - WMV-5A)CARBURETOR, Bottom
(200 - WMV-5A) -
21395-809743 COVERCOVER
-
31395-809758 GASKETGASKET
-
41395-8087391 SCREWSCREW
-
527-828292 GASKETGASKET
-
61399-3026 JET, (.036)
(Top/Center) (135) (Port)JET, (.036)
(Top/Center) (135) (Port) -
61399-7570 JET, .040
(Bottom) (135) (Port)JET, .040
(Bottom) (135) (Port) -
61399-3251 JET, (.034)
(Top) (150) (Port)JET, (.034)
(Top) (150) (Port) -
61399-3251 JET, (.034)
(Center) (150) (Port)JET, (.034)
(Center) (150) (Port) -
6815633038 JET, (.038)
(Bottom) (150) (Port)JET, (.038)
(Bottom) (150) (Port) -
6815633042 JET, Idle Air Vent
(.042-Top/Center) (XR6/Magnum III) (Port)JET, Idle Air Vent
(.042-Top/Center) (XR6/Magnum III) (Port) -
6815633048 JET, (.048)
(Bottom) (XR6/Magnum III) (Port)JET, (.048)
(Bottom) (XR6/Magnum III) (Port) -
6810741 JET, (.030)
(Top/Center) (175) (Port)JET, (.030)
(Top/Center) (175) (Port) -
6815633038 JET, (.038)
(Bottom) (175) (Port)JET, (.038)
(Bottom) (175) (Port) -
6815633052 JET, (.052)
(Top) (200) (Port)JET, (.052)
(Top) (200) (Port) -
6815633028 JET, (.028)
(Centered) (200) (Port)JET, (.028)
(Centered) (200) (Port) -
61399-3252 JET, (.032)
(Bottom) (200) (Port)JET, (.032)
(Bottom) (200) (Port) -
-8107493 GASKET SET, CarburetorGASKET SET, Carburetor
-
-1395-8116913 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
