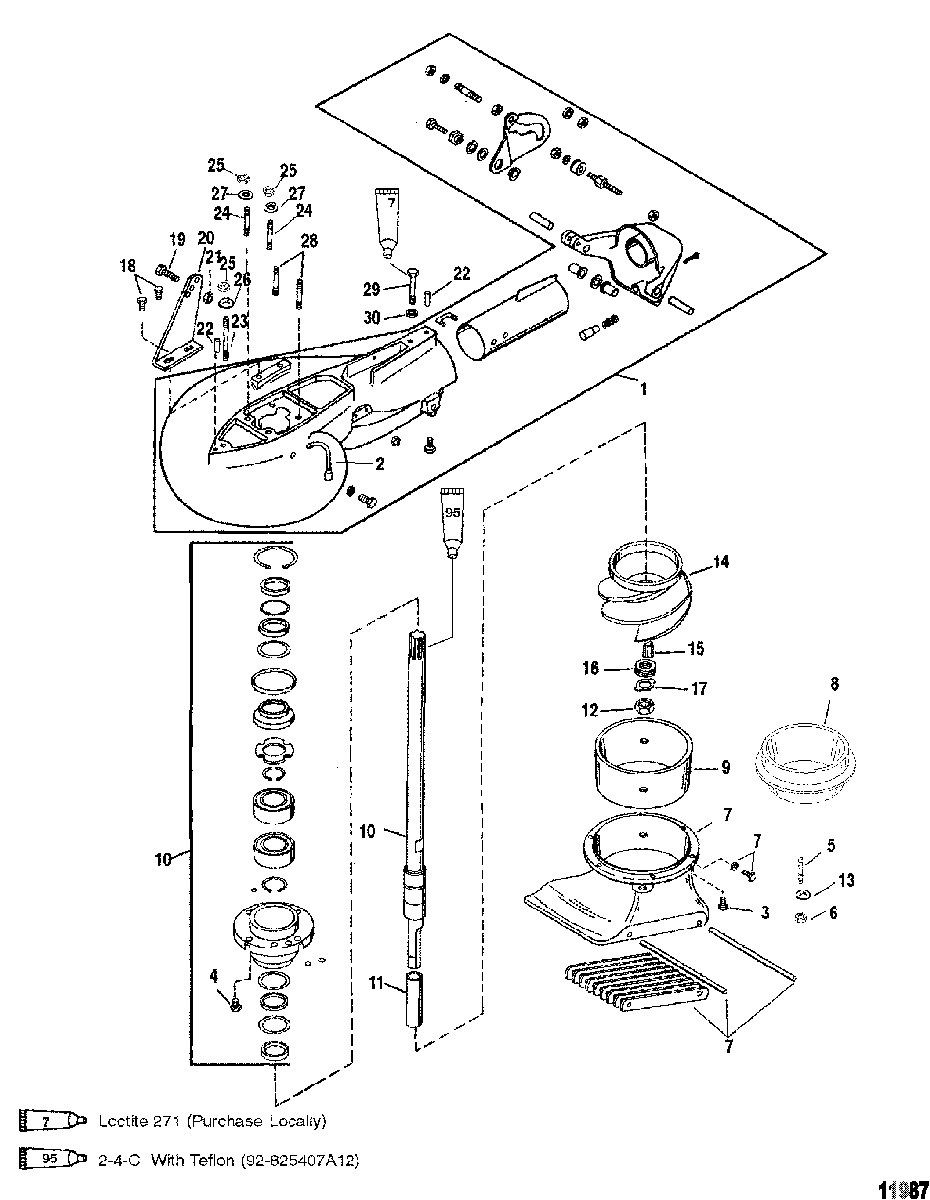

Jet Pump Assembly для Mercury - V-150 0G303046 THRU 0G760299
-
№АртикулНазвание
-
-855766150 JET PUMP
(Black) SN# 0G605661 & BelowJET PUMP
(Black) SN# 0G605661 & Below -
-855766150 JET PUMP
(Gray) SN# 0G605661 & BelowJET PUMP
(Gray) SN# 0G605661 & Below -
-855766150 JET PUMP
(With Aluminum Impeller) SN# 0G605662 & UpJET PUMP
(With Aluminum Impeller) SN# 0G605662 & Up -
-856143A2 JET PUMP ASSEMBLY
(Jet 105 - With Stainless Steel Impeller)JET PUMP ASSEMBLY
(Jet 105 - With Stainless Steel Impeller) -
-856143A3 JET PUMP ASSEMBLY
(Jet 140 - With Stainless Steel Impeller)JET PUMP ASSEMBLY
(Jet 140 - With Stainless Steel Impeller) -
1803145T HOUSING, Pump
SN# 0G605662 & UpHOUSING, Pump
SN# 0G605662 & Up -
1801411150 HOUSING, Pump
SN# 0G605661 & BelowHOUSING, Pump
SN# 0G605661 & Below -
232-827490 HOSE, LubeHOSE, Lube
-
310-848497 SCREW, (.312-18 x 1.00)
SN# 0G605661 & BelowSCREW, (.312-18 x 1.00)
SN# 0G605661 & Below -
410-19923088 SCREW, (.250-20 x .875)SCREW, (.250-20 x .875)
-
410-848497 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
516-855840 STUD, (.312-18 x 1.81)
SN# 0G605662 & UpSTUD, (.312-18 x 1.81)
SN# 0G605662 & Up -
611-82670910 NUT, (.312-18)NUT, (.312-18)
-
785576890 HOUSING, Intake
SN# 0G605662 & UpHOUSING, Intake
SN# 0G605662 & Up -
780141290 HOUSING, Intake
SN# 0G605661 & BelowHOUSING, Intake
SN# 0G605661 & Below -
8855771 LINER
SN# 0G605662 & UpLINER
SN# 0G605662 & Up -
98271883 LINER
SN# 0G605661 & BelowLINER
SN# 0G605661 & Below -
1045-8M0084524 SHAFT, Drive
SN# 0G605662 & UpSHAFT, Drive
SN# 0G605662 & Up -
1045-801413150 SHAFT, Drive
SN# 0G605661 & BelowSHAFT, Drive
SN# 0G605661 & Below -
1123-8271891 SLEEVESLEEVE
-
1211-8271901 NUTNUT
-
1312-36001 WASHERWASHER
-
1447-855770150 IMPELLER
(Aluminum) SN# 0G605662 & UpIMPELLER
(Aluminum) SN# 0G605662 & Up -
1447-803984T IMPELLER
(Jet 105 - Stainless Steel)IMPELLER
(Jet 105 - Stainless Steel) -
1447-803985T IMPELLER
(Jet 140 - Stainless Steel)IMPELLER
(Jet 140 - Stainless Steel) -
1447-803984T IMPELLER
SN# 0G605661 & BelowIMPELLER
SN# 0G605661 & Below -
1528-801405875 KEYKEY
-
1615-801404875 SHIM, ImpellerSHIM, Impeller
-
1714-801403875 TAB WASHERTAB WASHER
-
1810-19923062 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1910-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
20801410 BRACKET, Cable SupportBRACKET, Cable Support
-
2111-82670910 NUT, (.312-18)NUT, (.312-18)
-
2217-801407 PIN, DowelPIN, Dowel
-
2316-786382 STUD, (.437-14/.437-20 x 3.120)STUD, (.437-14/.437-20 x 3.120)
-
2416-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
2511-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2612-48926 WASHERWASHER
-
2712-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
2816-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
2910-68299 SCREW, (.375-16 x 3.00) Stainless SteelSCREW, (.375-16 x 3.00) Stainless Steel
-
3012-856774 WASHER, (.406 x .750 x .104)WASHER, (.406 x .750 x .104)
